> Battery Cable Sizes, what are they
76-914
post Jul 9 2024, 10:47 AM
Post #1


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
I'm replacing the battery cables on 2 914's. Are they 4ga? Any recommendations for or against cable types? Welding cable, electrical cable, strand count, sheathing minimum's, etc. TIA, Kent
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 9 2024, 05:36 PM
Post #2


914 Guru
*****

Group: Members
Posts: 7,002
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(76-914 @ Jul 9 2024, 12:47 PM) *

I'm replacing the battery cables on 2 914's. Are they 4ga? Any recommendations for or against cable types? Welding cable, electrical cable, strand count, sheathing minimum's, etc. TIA, Kent

4ga is sufficient for 914 cold cranking draw + some margin.

I really like welding style cable with the fine strands - super flexible. However beware regular welding cable may just be EPDM rubber jacket and not rated for oil / high temp. Long ago I used regular welding cable to relocate battery to the frunk. To be honest it held up fine but didn’t run in the engine compartment.

Crimping lugs properly requires special tool. PITA. Local shops can usually do the crimp for you.

Check around plenty of sources both local and on the web similar to
https://www.batterycablesusa.com/0000-gauge...e-black-4-0-awg

Note: I haven’t used the linked company above - just for photo reference and SAE specs info
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jul 9 2024, 06:31 PM
Post #3


914 Guru
*****

Group: Members
Posts: 9,119
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Battery to starter cable length is 56 inches.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jul 9 2024, 07:12 PM
Post #4


Get that VIN ?
*****

Group: Members
Posts: 9,687
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California

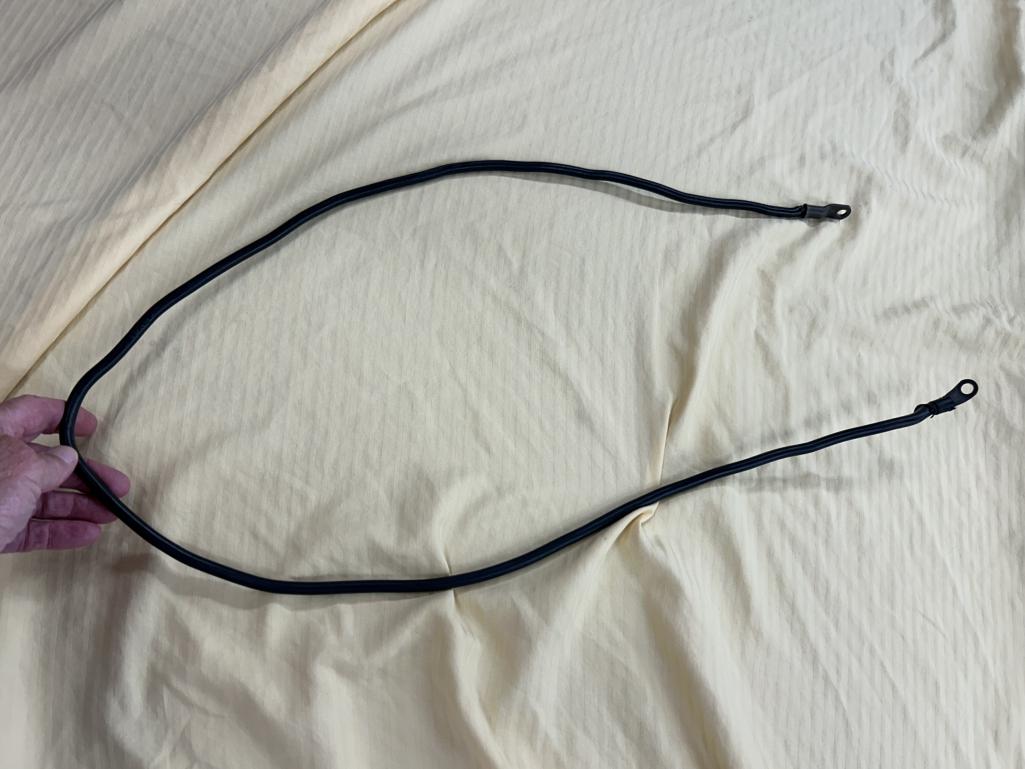

Yup, 56”
It’s yours if you want it.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Jul 9 2024, 08:23 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,903
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California
Funny that you mention BatteryCablesUSA, @Superhawk996 - I recently ordered the following from them in red at 57" and both connector ends 5/16 inch (M8) (fits my connector setup at the battery)
It's at the shop - I'll see it in a few weeks.
https://www.batterycablesusa.com/4-gauge-aw...cable-with-ends
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 9 2024, 08:51 PM
Post #6


914 Guru
*****

Group: Members
Posts: 7,002
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(FlacaProductions @ Jul 9 2024, 10:23 PM) *

Funny that you mention BatteryCablesUSA, . . . I recently ordered . . . from them


Let me know how they do. I’ve looked at them several times but have not pulled the trigger.

Not as easy for me to find local suppliers now that I’m not in a metro area. Always good to know who the good online suppliers are.
@FlacaProductions
User is online!Profile CardPM
Go to the top of the page
+Quote Post
technicalninja
post Jul 9 2024, 08:56 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,527
Joined: 31-January 23
From: Granbury Texas
Member No.: 27,135
Region Association: Southwest Region
+1 (IMG:style_emoticons/default/agree.gif)


I'm plus 1 with welding cables as well.

Never had a failure and some of mine have been in for 25+ years.

Get the good stuff. As welders use LONG cables it's usually cheaper than automotive grade stuff and has at least double the conductors.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jul 9 2024, 09:17 PM
Post #8


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
All the info I needed. Thx Gentlemen. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TonyH
post Jul 28 2024, 10:45 AM
Post #9


Member
**

Group: Validating
Posts: 55
Joined: 30-January 22
From: Normandy, France
Member No.: 26,296
Region Association: France
Good afternoon everyone,

A quick question please. What is the ideal size for a battery for a 1.8 914 plus the amp hour rating?

Many thanks from sunny north west France.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 28 2024, 11:55 AM
Post #10


914 Guru
*****

Group: Members
Posts: 7,002
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(TonyH @ Jul 28 2024, 12:45 PM) *

Good afternoon everyone,

A quick question please. What is the ideal size for a battery for a 1.8 914 plus the amp hour rating?

Many thanks from sunny north west France.

Battery size is groupe 42

Capacity will be around 40-50 Ah
User is online!Profile CardPM
Go to the top of the page
+Quote Post
TonyH
post Jul 29 2024, 03:57 AM
Post #11


Member
**

Group: Validating
Posts: 55
Joined: 30-January 22
From: Normandy, France
Member No.: 26,296
Region Association: France
QUOTE(Superhawk996 @ Jul 28 2024, 11:55 AM) *

QUOTE(TonyH @ Jul 28 2024, 12:45 PM) *

Good afternoon everyone,

A quick question please. What is the ideal size for a battery for a 1.8 914 plus the amp hour rating?

Many thanks from sunny north west France.

Battery size is groupe 42

Capacity will be around 40-50 Ah

Very many thanks, but in Europe they don't use that group style of classification they always use a code but its the actual size I am after.

Any ideas please?
