> Dip Stick snapped off in Oil tank
G e o r g e
post Aug 17 2022, 07:07 PM
Post #1


Dr
***

Group: Members
Posts: 1,881
Joined: 20-September 05
From: Southern Cal
Member No.: 4,832
Region Association: None



Hello,

I have been away for too long, anyhow I noticed a puddle of oil under car, pulled dip stick out put it back in , pulled it out and the last part of the Stick was gone. must have been 50 years of metal fatigue. Question is whats it going to take to get it out of the tank?

it is a /6 tank

George
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 17 2022, 07:15 PM
Post #2


914-6 GT in waiting
***************

Group: Members
Posts: 17,827
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



You can’t try a magnetic retrieval tool. They are a couple dollars at flaps.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
G e o r g e
post Aug 17 2022, 07:23 PM
Post #3


Dr
***

Group: Members
Posts: 1,881
Joined: 20-September 05
From: Southern Cal
Member No.: 4,832
Region Association: None



QUOTE(mepstein @ Aug 17 2022, 06:15 PM) *

You can’t try a magnetic retrieval tool. They are a couple dollars at flaps.

that was my thought, figured I would pick it up in the middle and pull off magnet as I pulled it back out.

I will have to give it some attempts.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 17 2022, 07:36 PM
Post #4


914 Guru
*****

Group: Members
Posts: 6,417
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



How long a piece broke off?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Aug 17 2022, 07:36 PM
Post #5


914 Guru
*****

Group: Members
Posts: 5,820
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest



QUOTE(G e o r g e @ Aug 17 2022, 05:23 PM) *

QUOTE(mepstein @ Aug 17 2022, 06:15 PM) *

You can’t try a magnetic retrieval tool. They are a couple dollars at flaps.

that was my thought, figured I would pick it up in the middle and pull off magnet as I pulled it back out.

I will have to give it some attempts.



Probably pull the tank and clean out anyway.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Aug 17 2022, 09:51 PM
Post #6


Advanced Member
****

Group: Members
Posts: 4,333
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



QUOTE(mb911 @ Aug 18 2022, 01:36 PM) *

QUOTE(G e o r g e @ Aug 17 2022, 05:23 PM) *

QUOTE(mepstein @ Aug 17 2022, 06:15 PM) *

You can’t try a magnetic retrieval tool. They are a couple dollars at flaps.

that was my thought, figured I would pick it up in the middle and pull off magnet as I pulled it back out.

I will have to give it some attempts.



Probably pull the tank and clean out anyway.

Now that is a crappy thing to happen (IMG:style_emoticons/default/headbang.gif) ,best to remove the tank filler pipe assembly as the broken piece could be stuck in there or it has fallen into the tank so Ben's answer is the only way to go,its a PITA but cleaning the tank is a good thing to do anyway .
Lots of crap can build up in the lowest point of the tank and cause corrosion ,my factory tank had been repaired in that area and was pleased to see it was done very well.
Good luck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 18 2022, 05:41 AM
Post #7


914-6 GT in waiting
***************

Group: Members
Posts: 17,827
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



On the other hand, it doesn’t hurt anything. I’ve seen plenty of 911 oil tanks with pieces of dip sticks in them. It doesn’t go anywhere.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Rob-O
post Aug 18 2022, 08:46 AM
Post #8


Senior Member
***

Group: Members
Posts: 1,197
Joined: 5-December 03
From: Mansfield, TX
Member No.: 1,419
Region Association: Southwest Region



Doesn’t the factory tank have a brazed in screen about halfway down the tank? I thought I remember this ring the case. If so it shouldn’t makes it’s way to the filter console or pick up. Just remember the screen is there if fishing with a magnet. You don’t want to push that magnet and break the screen. Again, if I’m remembering correctly the screen seemed fragile.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michael7810
post Aug 19 2022, 08:04 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,066
Joined: 6-June 11
From: Scottsdale, AZ
Member No.: 13,164
Region Association: Southwest Region



From what I've read a magnet wont stick to the dipstick.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 19 2022, 10:29 AM
Post #10


When I set my timing, why do I flush, then take a pee?
*****

Group: Members
Posts: 7,723
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest



QUOTE(mepstein @ Aug 18 2022, 04:41 AM) *

On the other hand, it doesn’t hurt anything. I’ve seen plenty of 911 oil tanks with pieces of dip sticks in them. It doesn’t go anywhere.


(IMG:style_emoticons/default/agree.gif)

If you can't get the piece out, shouldn't hurt anything.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Aug 19 2022, 11:55 AM
Post #11


Advanced Member
****

Group: Members
Posts: 4,169
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

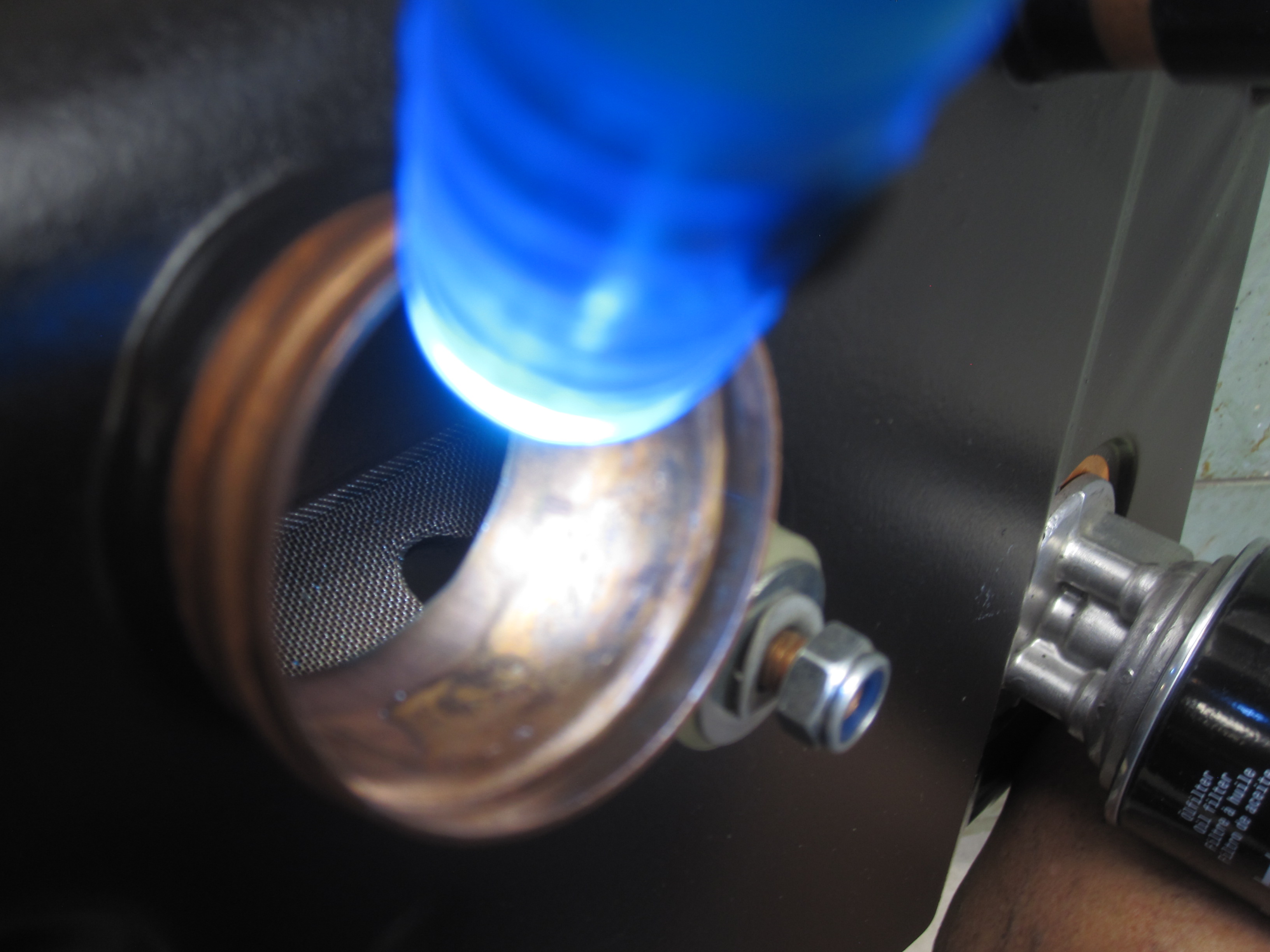

The dipstick tube extends down through the screen.
There are magnets that have long spring-like extensions.
Take the filler neck off and aim the magnet through the hole in the screen. The line of
sight might be too difficult in the car but worth a try.
You might have to lay across the trunk lid to get a good view.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
