Hello Teeners!

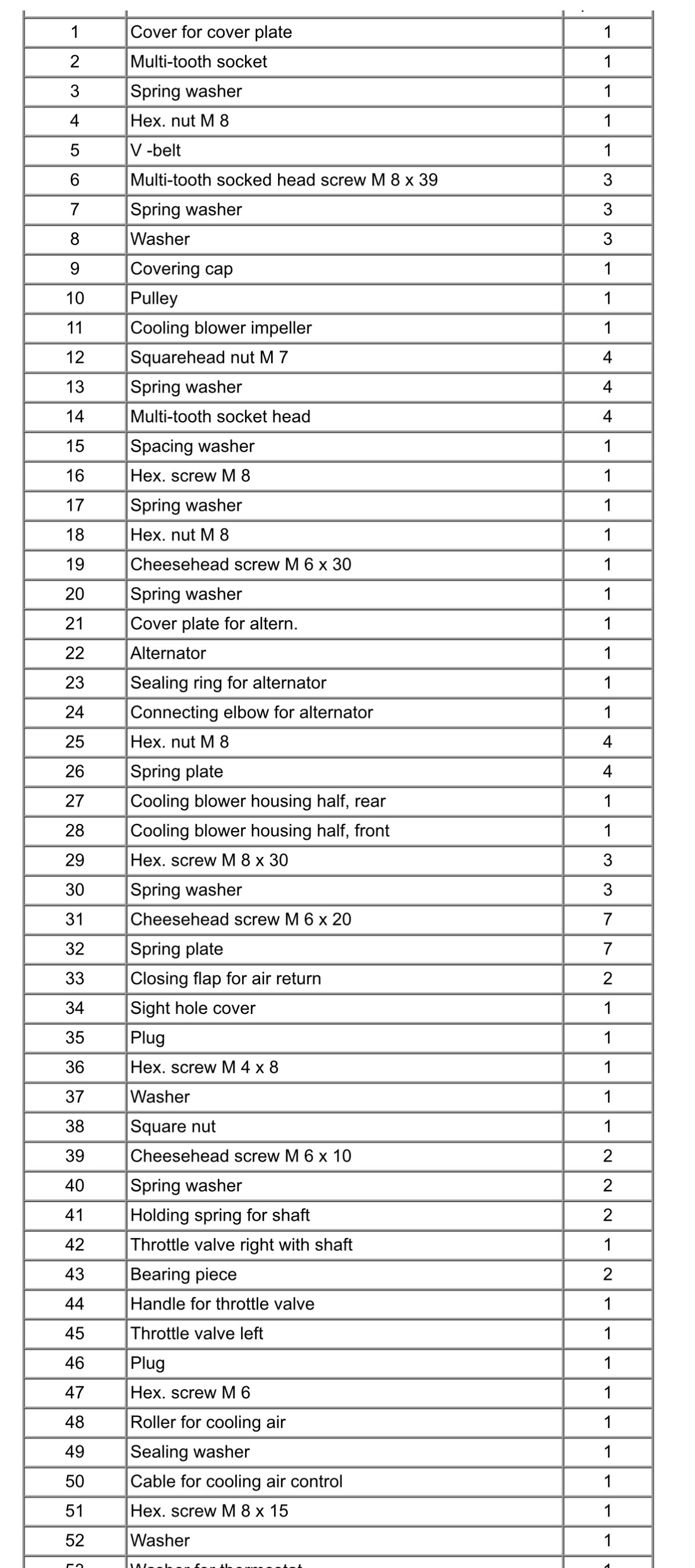

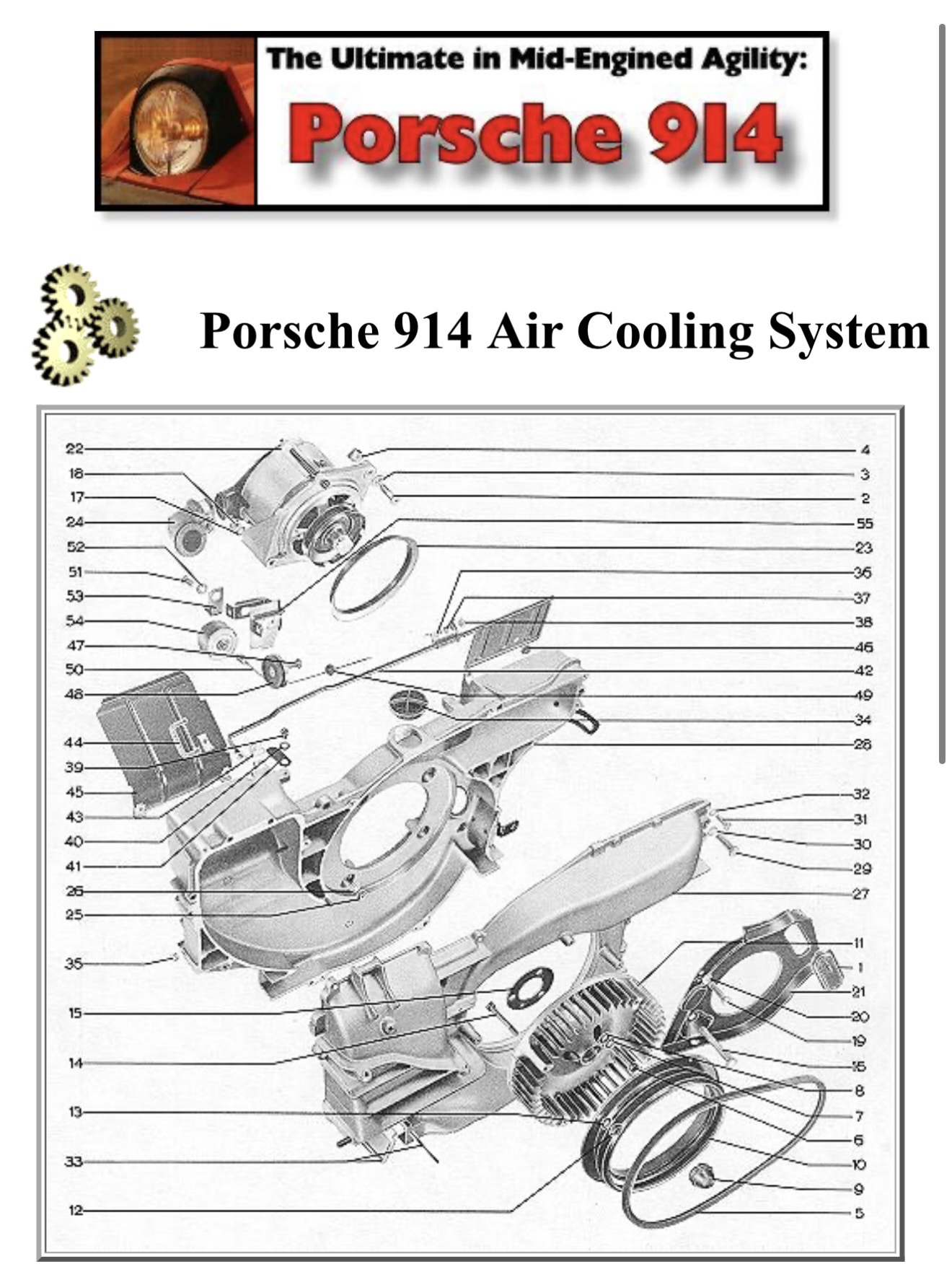

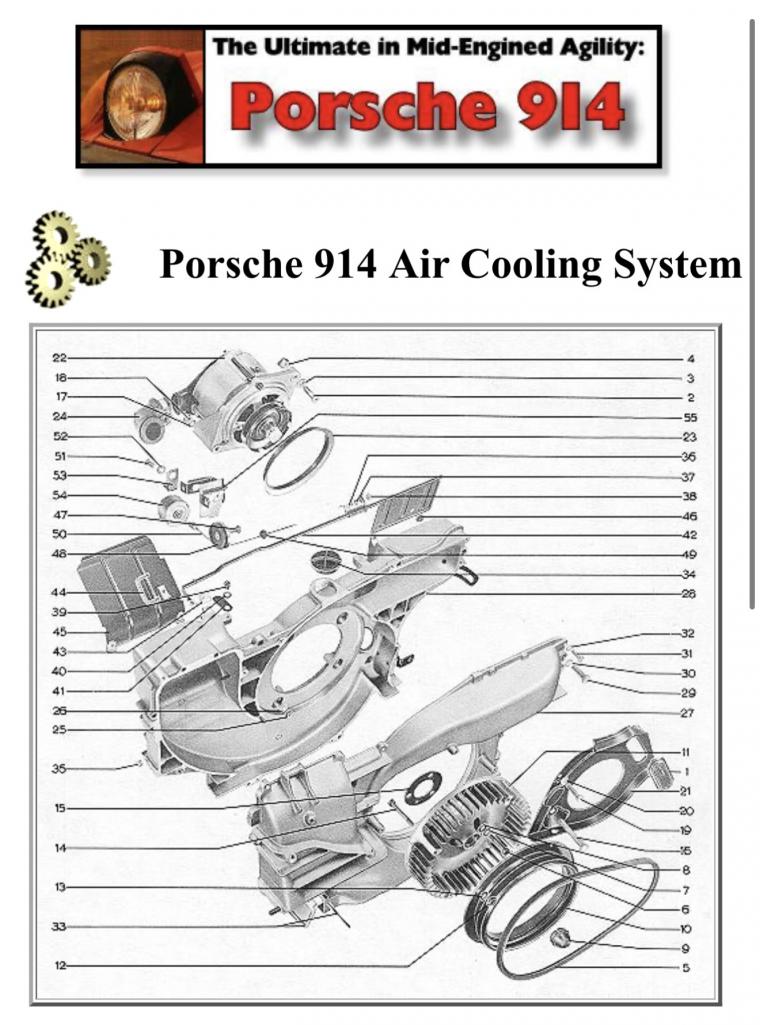

Is there a difference or interchangeable on this 2 type of fan? Also anyone have the spacer #15 and each 3 of #6, 7 & 8? Thank you!     |
   |

|
| 914werke |
Aug 1 2026, 05:11 PM
Post
#2
|
|
"I got blisters on me fingers" Group: Members Posts: 11,716 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|

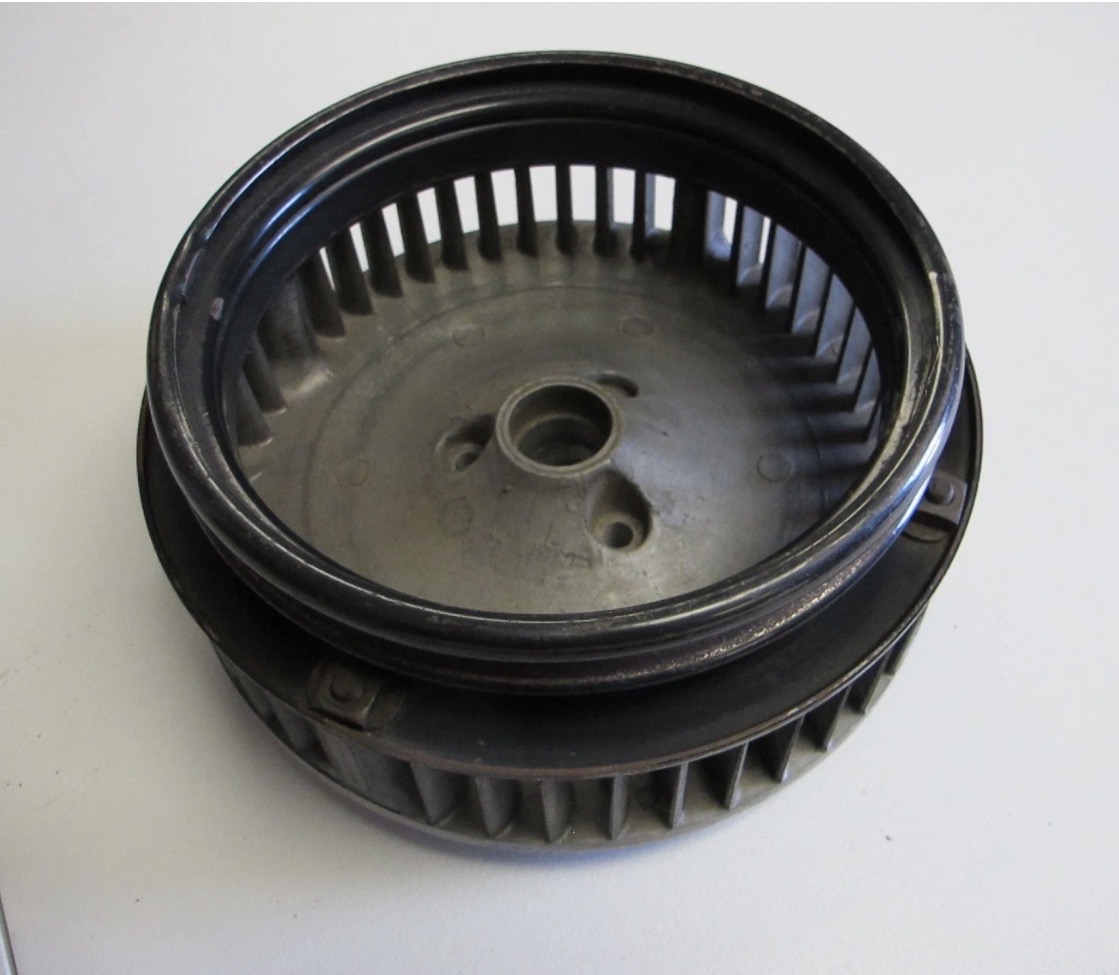

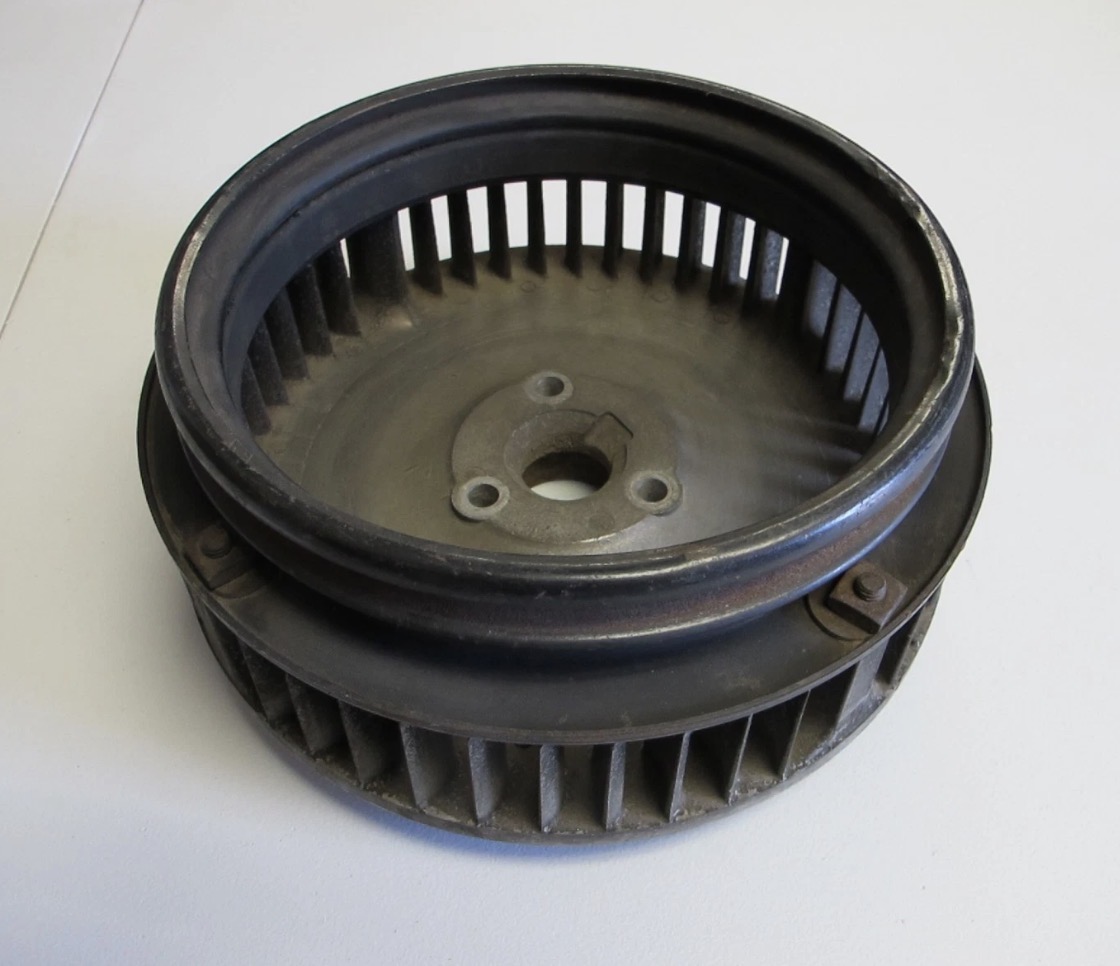

The one with the "snout is early. Effectively interchangeable.
The (3) triplesquare ? bolts are specific. |
 |
|
| ndfrigi |
Aug 1 2026, 05:28 PM
Post
#3
|
|
Advanced Member Group: Members Posts: 2,987 Joined: 21-August 11 From: Orange County Member No.: 13,474 Region Association: Southern California
|

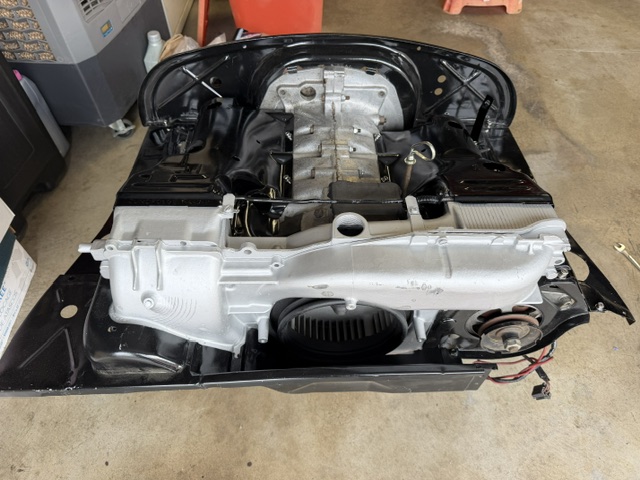

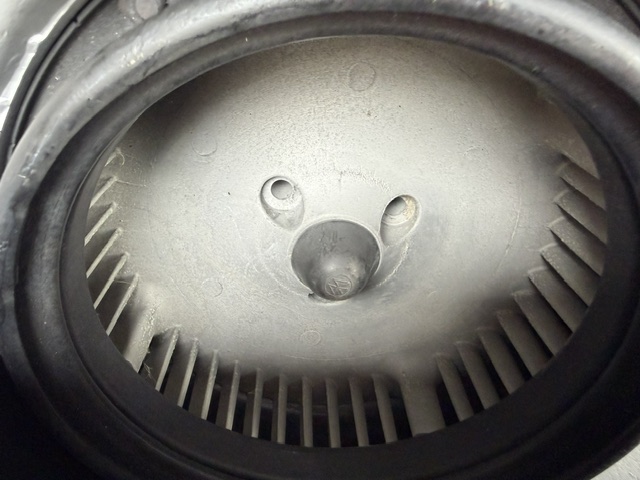

QUOTE(914werke @ Aug 1 2026, 04:11 PM)  The one with the "snout is early. Effectively interchangeable. The (3) triplesquare ? bolts are specific. Thanks! We are trying finish the assembly of this rebuilt 1.9 early engine with W series engine from 1971 car. Cooling fan is just temporarily installed but no spacer yet and bolts.   |
|
|
|
| Jack Standz |
Aug 1 2026, 05:38 PM
Post
#4
|
|
Senior Member Group: Members Posts: 888 Joined: 15-November 19 From: Happy Place (& surrounding area) Member No.: 23,644 Region Association: None
|
QUOTE(ndfrigi @ Aug 2 2026, 06:06 AM) Hello Teeners! Is there a difference or interchangeable on this 2 type of fan? Also anyone have the spacer #15 and each 3 of #6, 7 & 8? Thank you! They are not all directly interchangeable. Some use longer (or shorter) fasteners. If you have too long bolts in a fan that uses shorter ones, they will tear up the seal. Also, if you need timing marks, some significant differences exist and you'll be left wondering how to time your motor (can use a dial back timing light). Also, it's a good idea to lap the crankshaft end with the fan and ensure the woodruff key fits properly when you final fit everything together. |
|
|
|
| ndfrigi |
Aug 1 2026, 07:24 PM
Post
#5
|
|
Advanced Member Group: Members Posts: 2,987 Joined: 21-August 11 From: Orange County Member No.: 13,474 Region Association: Southern California
|
Thank you also @Jack_standz also!
I think we can find head screw, washer and spring washer. For now, we will appreciate if someone can find spacer #15 on your stash. Thanks! |
|
|
|
|
|
