 HELP! Rear Swaybar Bushing Install |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| friethmiller |
 Jul 27 2026, 04:15 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 1,423 Joined: 10-February 19 From: Austin, TX Member No.: 22,863 Region Association: Southwest Region
 |

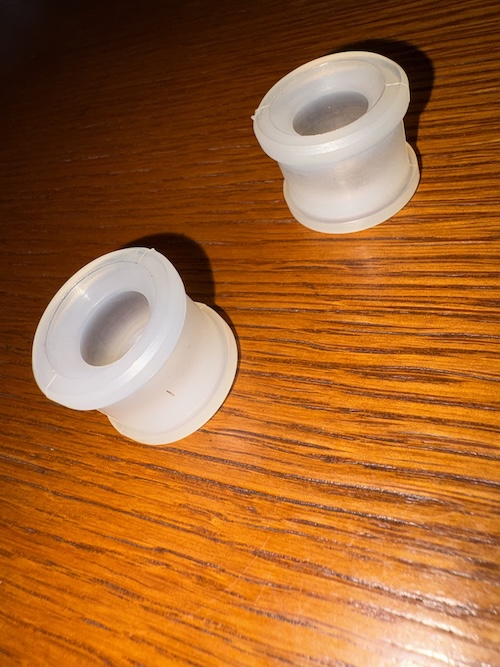

I need help here. I've just burned through 3 of these bushings trying to install them into my drop link. Every time I go to push on in, it cracks and falls apart during install. I don't understand why this is the case. Can someone tell me how to do it? I am absolutely at wits-end with these damn things. (IMG:style_emoticons/default/headbang.gif)
BTW, I just got new ones from AA this time. The 914rubber ones all failed. I'm sure it was me. Please help!!  |
   |

|
| NARP74 |
Jul 27 2026, 04:29 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,479 Joined: 29-July 20 From: Colorado, USA, Earth Member No.: 24,549 Region Association: Rocky Mountains |
The AA ones could just be 914 Rubber ones, some parts are.
I think I put a small hole in the closed end to allow air and grease to escape and then used a clamp to slowly compress them on, going slowly and readjusting if needed. Heating them in hot water did not work for me. A heat gun while you do this might help. Too hot and they get mushy and collapse. |
 |
|
| Ron914 |
Jul 27 2026, 04:47 PM
Post
#3
|
|
Senior Member Group: Members Posts: 551 Joined: 19-April 22 From: Huntington Beach,Ca Member No.: 26,487 Region Association: Southern California
|
I empathize with you Fred ,this has been the hardest job yet on my project .
I purchased mine from AA also and after many fails I it was suggested I buy authentic bushings from Porsche . I purchased them from Pelican and still had a problem installing them . I heard about a shop around the corner from me called Fixasix and went over to see if they could do it for me . I spent $40 but it was worth the frustration to me just to get it done . I came home excited to finally connect the rear sway bar and I must saw it still is not connected . They heated them in hot water, used silicone lubricant , a vise and a large flat blade screwdriver . I will say it took them about 30 minutes to install the bushings and it wasn't easy . It takes a lot of force to pop them onto the balls .thus I have only one end installed on the sway bar end . I used a large C clamp to accomplish that but never could get the other end attached to the shock bolts ( there is no where to use a C clamp for that side . I am thinking I might have to. remove the shock bolts and install these ends first . |
|
|
|
| friethmiller |
Jul 27 2026, 05:34 PM
Post
#4
|
|
Senior Member Group: Members Posts: 1,423 Joined: 10-February 19 From: Austin, TX Member No.: 22,863 Region Association: Southwest Region
|
My issue is with just getting the bushing into the drop link.
|
|
|
|
| Cairo94507 |
Jul 27 2026, 06:08 PM
Post
#5
|
|
Michael Group: Members Posts: 10,723 Joined: 1-November 08 From: Auburn, CA Member No.: 9,712 Region Association: Northern California
|
We stuck the bushings in very hot water to get the pliable and then squeezed them in. Greased the ball and then popped them on with a big pair of channel lock pliers. (IMG:style_emoticons/default/beerchug.gif)
|
|
|
|
|
