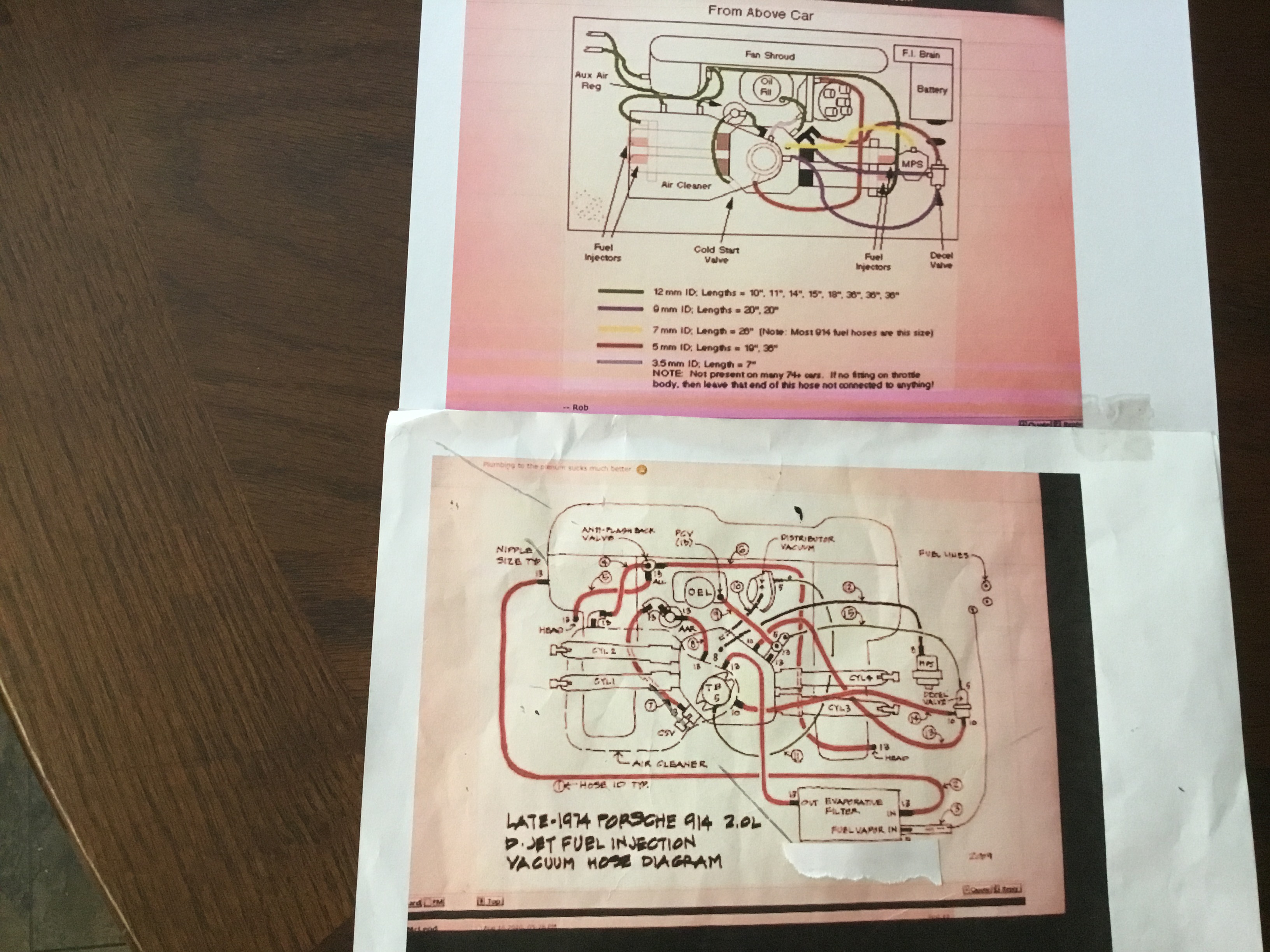

These two drawings show differences on the connections to the decel valve… my question is.. will it make any difference? T.I.A. Dennis (IMG:style_emoticons/default/confused24.gif)
Attached thumbnail(s)
|
   |

|
  |
Replies(1 - 4)
| DC_neun_vierzehn |
Jul 18 2026, 02:56 PM
Post
#2
|
|
Senior Member Group: Members Posts: 675 Joined: 16-November 20 From: Coastal Delaware Member No.: 24,893 Region Association: MidAtlantic Region
|
What year and motor is your 914?
|
|
|
|
| Flyinlow |
Jul 18 2026, 03:46 PM
Post
#3
|
|
Flyinlow Group: Members Posts: 154 Joined: 17-October 20 From: British Columbia, Canada Member No.: 24,774 Region Association: Canada
|
QUOTE(DC_neun_vierzehn @ Jul 18 2026, 01:56 PM)  What year and motor is your 914? 74 2.0 |
|
|
|
| emerygt350 |
Jul 18 2026, 04:15 PM
Post
#4
|
|
Advanced Member Group: Members Posts: 3,672 Joined: 20-July 21 From: Upstate, NY Member No.: 25,740 Region Association: North East States |
There are broken diagrams out there and yes it does matter. I would run out and verify the correct setup off of mine but there is a severe thunderstorm at the moment....
|
|
|
|
| Ron914 |
Jul 18 2026, 04:49 PM
Post
#5
|
|
Senior Member Group: Members Posts: 549 Joined: 19-April 22 From: Huntington Beach,Ca Member No.: 26,487 Region Association: Southern California
|
I have a 76 2.0L with D-jet FI .

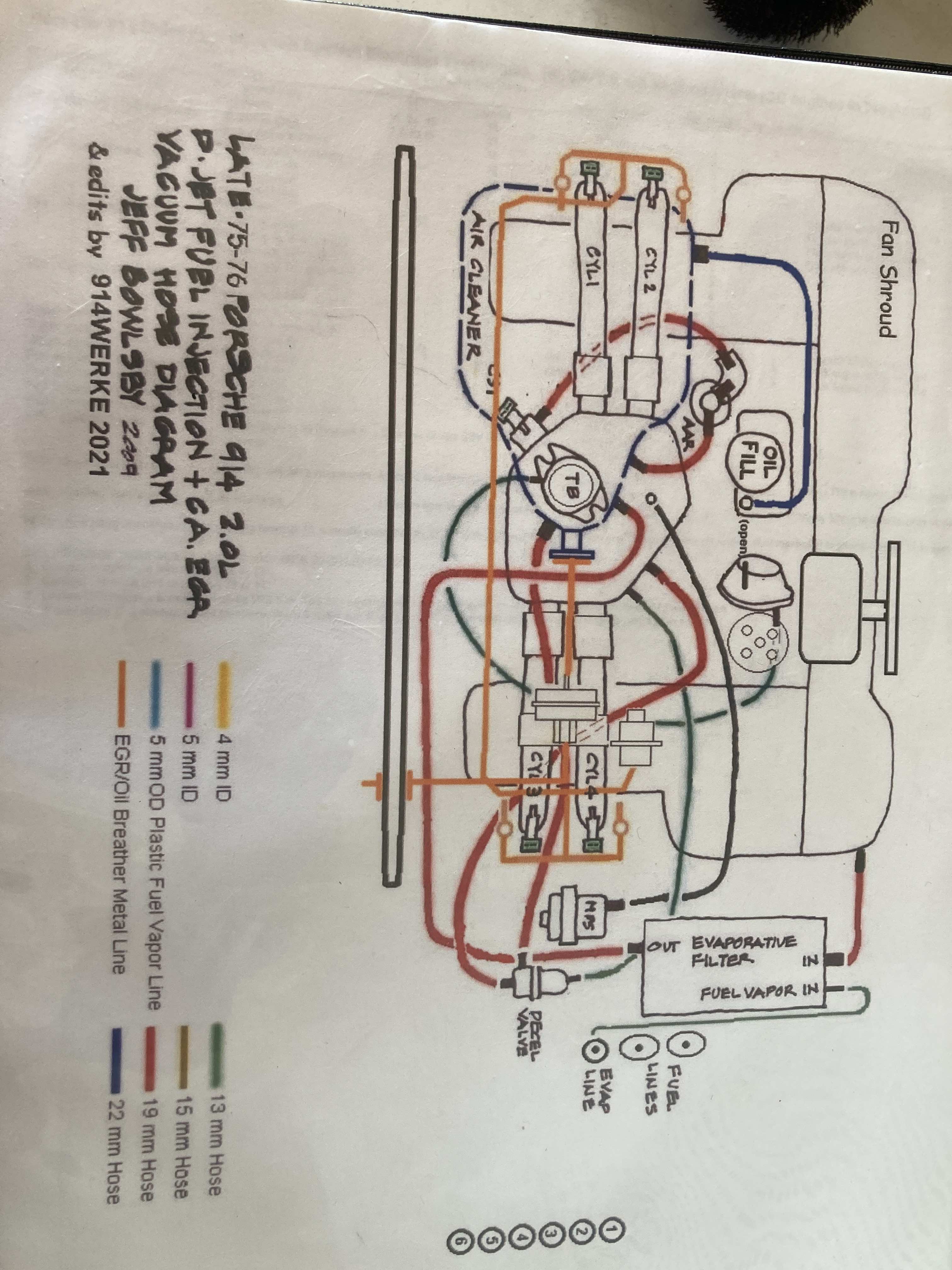

This is the diagram I used which matches my motor .  |
 |
|
|
