 What oil temp / fuel gauge is this? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| 75ninefourteen |
 Mar 16 2026, 01:16 PM
Post
#1
|
|
Newbie  Group: Members Posts: 26 Joined: 3-October 25 From: Austin, TX Member No.: 29,016 Region Association: Southwest Region  |
I've been trying to figure out what model this gauge was originally. So far in searching I've seen some close that are out of a 914-6, but have also seen similar marked as 911. Any ideas? I haven't had a chance to pull the gauge to look for a part number yet. I think the sensor for the oil temp is mismatched since it's reading cool.
 |
   |

|
| 930cabman |
Mar 16 2026, 01:41 PM
Post
#2
|
|
Advanced Member Group: Members Posts: 4,541 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States
|
I am unable to assist with the gauge, but you may consider checking the low temp reading with a known source, IR or similar
|
 |
|
| GregAmy |
Mar 16 2026, 02:10 PM
Post
#3
|
|
Advanced Member Group: Members Posts: 2,647 Joined: 22-February 13 From: Middletown CT Member No.: 15,565 Region Association: North East States
|
That appears to be a 1970-1972 914/6 combo gauge, per P914.com (RIP)
https://web.archive.org/web/20190718110228/...auges_combo.htm If you tilt it back at an extreme angle you may be able to see a part number under the rim/bezel at the top. |
|
|
|
| brant |
Mar 16 2026, 03:36 PM
Post
#4
|
|
914 Wizard Group: Members Posts: 12,160 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|
The gauge should have a tiny part number in it.
Seen at an angle Looks like the 6 one which doesn’t have dash bulbs The 4 cylinder combo gauge did have dash lighting |
|
|
|
| fixer34 |
Mar 16 2026, 03:41 PM
Post
#5
|
|
Senior Member Group: Members Posts: 1,400 Joined: 16-September 14 From: Chicago area Member No.: 17,908 Region Association: Upper MidWest
|
The one on my -6 has horizontal lines in the two 'boxes'. See if you can get the part number on the upper rim.
|
|
|
|
| 914Wes |
Mar 16 2026, 04:09 PM
Post
#6
|
|
Member Group: Members Posts: 51 Joined: 9-March 22 From: SO CAL Member No.: 26,388 Region Association: Southern California |

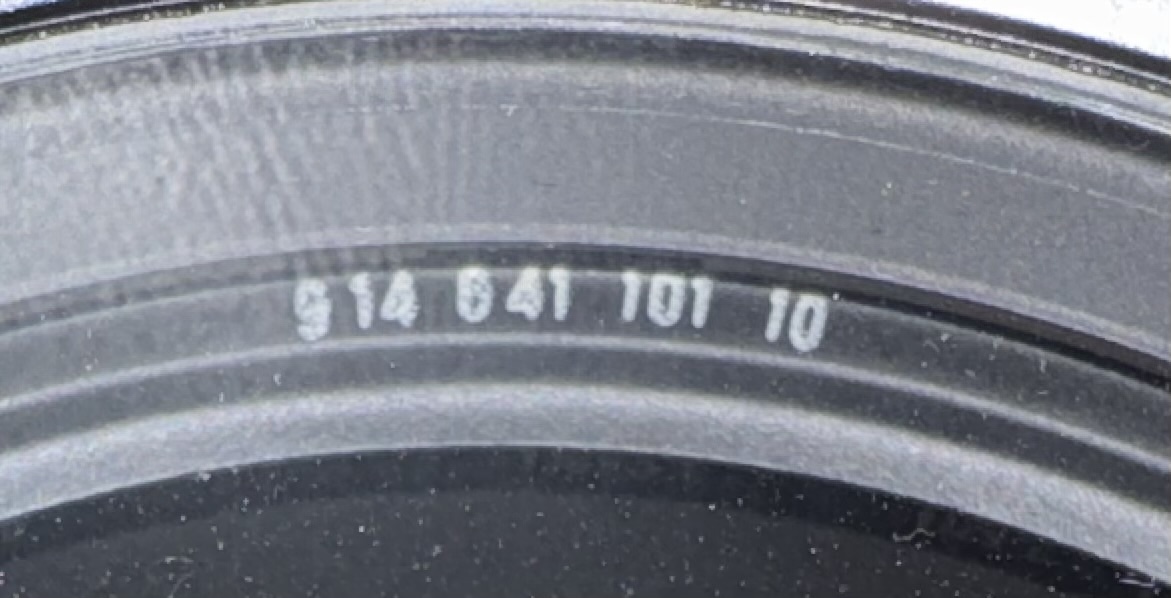

Post the part number. Attached image to show where its marked.
 |
|
|
|
| 914Sixer |
Mar 16 2026, 04:09 PM
Post
#7
|
|
914 Guru Group: Members Posts: 9,435 Joined: 17-January 05 From: San Angelo Texas Member No.: 3,457 Region Association: Southwest Region
|
Look in 12 o'clock position. It is a 914-6 gauge with later 911 sportmatic temp style gauge.
Attached image(s)
|
|
|
|
| 75ninefourteen |
Mar 16 2026, 04:19 PM
Post
#8
|
|
Newbie Group: Members Posts: 26 Joined: 3-October 25 From: Austin, TX Member No.: 29,016 Region Association: Southwest Region |
QUOTE(914Wes @ Mar 16 2026, 05:09 PM)  Post the part number. Attached image to show where its marked. Thanks for the image. I will see if I can see where its marked. |
|
|
|
| 75ninefourteen |
Mar 16 2026, 04:40 PM
Post
#9
|
|
Newbie Group: Members Posts: 26 Joined: 3-October 25 From: Austin, TX Member No.: 29,016 Region Association: Southwest Region |
QUOTE(930cabman @ Mar 16 2026, 02:41 PM) I am unable to assist with the gauge, but you may consider checking the low temp reading with a known source, IR or similar Thanks for the suggestion. I am planning to check the temp through the oil dipstick tube as a starting point. |
|
|
|
| porschetub |
Mar 16 2026, 08:44 PM
Post
#10
|
|
914 Guru Group: Members Posts: 5,043 Joined: 25-July 15 From: New Zealand Member No.: 18,995 Region Association: None |
QUOTE(75ninefourteen @ Mar 17 2026, 11:40 AM) QUOTE(930cabman @ Mar 16 2026, 02:41 PM) I am unable to assist with the gauge, but you may consider checking the low temp reading with a known source, IR or similar Thanks for the suggestion. I am planning to check the temp through the oil dipstick tube as a starting point. Good idea should be close enough as reading is from the sump anyway pay to check the "G" wire on the gauge to sender ,most likely you have a duff sender or wrong rating for the same ,cheers |
|
|
|
| 75ninefourteen |
Mar 17 2026, 07:29 AM
Post
#11
|
|
Newbie Group: Members Posts: 26 Joined: 3-October 25 From: Austin, TX Member No.: 29,016 Region Association: Southwest Region |
Had a chance to look at the gauge and find the number. Looks like it's a '70-'26 914-6 one. Now that I know this, I can look to see if the sender is a correct match and the connections are good.
I should have stated from the start that I don't think the car is running hot. I am only attempting to have a more accurate reading at the gauge.  |
|
|
|
|
