> Building another engine
mepstein
post Feb 27 2026, 10:55 AM
Post #1


914-6 GT in waiting
***************

Group: Members
Posts: 20,526
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Building another engine for future sale. This one is a 3.2 short stroke. Pauter cranks, canyon head studs, JE 10.5 pistons in Mahle 98mm cylinders. 964 oil pump. Cam for EFI. Twin plug heads with asco valve springs and retainers.

More to come.


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Feb 27 2026, 02:55 PM
Post #2


Village Idiot
*****

Group: Members
Posts: 8,907
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Love to see engines getting built like this. Works of art!

Short stroke 3.2, would it wind up being less than a 3.2?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 27 2026, 03:56 PM
Post #3


914-6 GT in waiting
***************

Group: Members
Posts: 20,526
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Root_Werks @ Feb 27 2026, 03:55 PM) *

Love to see engines getting built like this. Works of art!

Short stroke 3.2, would it wind up being less than a 3.2?

It’s built on a 3.0 case with 98mm pistons and cylinders. Same cylinder as a 3.2 to 3.4 but the piston needs to be sized for a 3.0 rod. It’s a tried and true combo.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Mar 1 2026, 05:54 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,741
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest
Very nice Mark. Post more of the build, fun to see it come together.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 1 2026, 07:39 PM
Post #5


914-6 GT in waiting
***************

Group: Members
Posts: 20,526
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Cleaning up the cam towers. Removed all the studs to replace with new. It also makes it much easier to clean the sealing surfaces. Removed the aluminum plugs and oil spray bars to install new. This greatly reduces the chance of debris obstructing oil flow. These parts are 45 years old…. A couple times in the ultrasonic and then blow everything off with compressed air.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Mar 1 2026, 08:20 PM
Post #6


Get that VIN ?
**********

Group: Members
Posts: 10,033
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
(IMG:style_emoticons/default/smile.gif) Interesting, keep posting..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 5 2026, 02:44 PM
Post #7


914-6 GT in waiting
***************

Group: Members
Posts: 20,526
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region

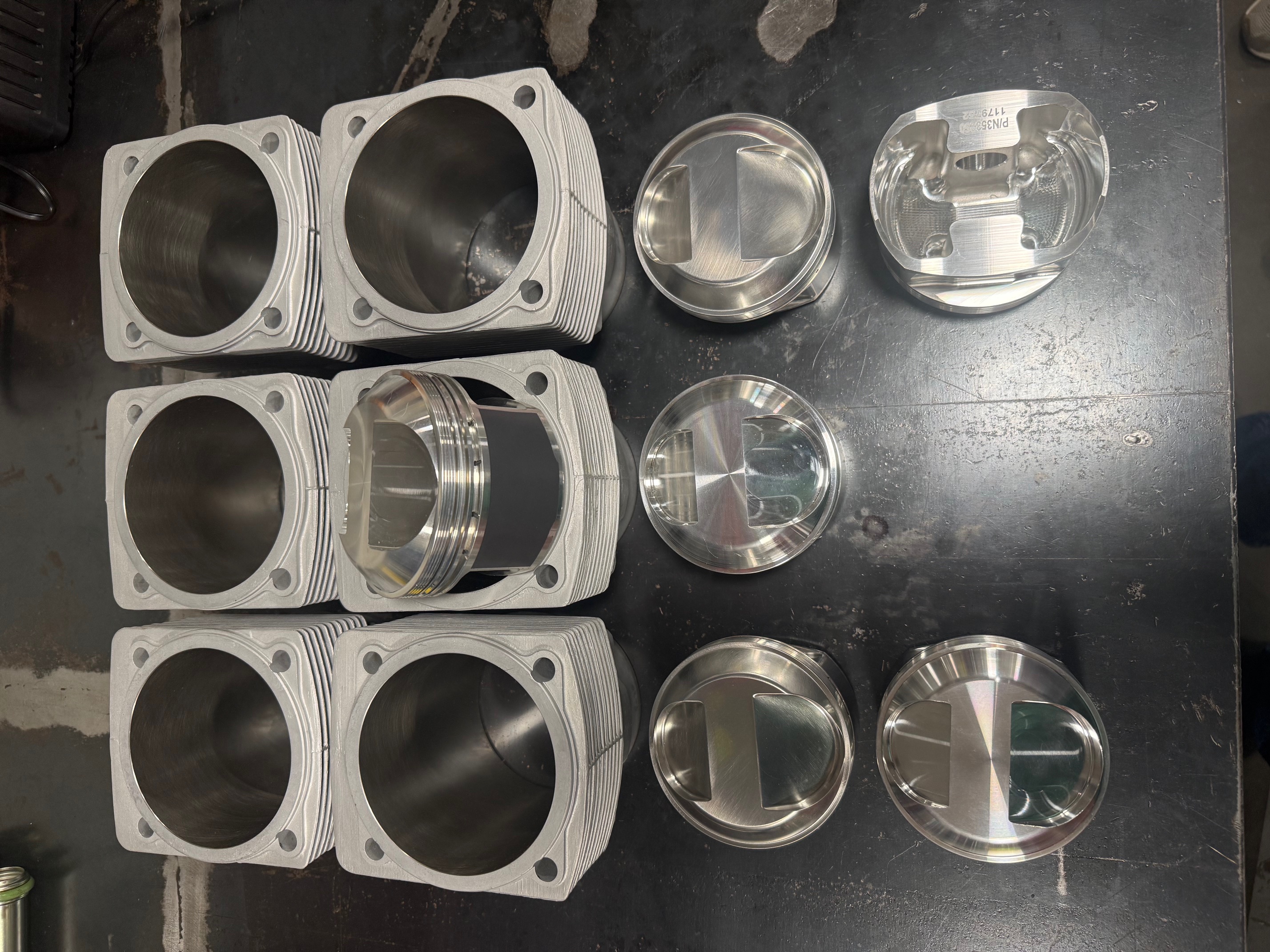

Mahle cylinders and custom JE pistons that have been undercrowned and coated.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Mar 5 2026, 04:04 PM
Post #8


914 Guru
*****

Group: Members
Posts: 6,024
Joined: 14-June 03
From: Laguna Niguel, CA
Member No.: 822
Region Association: Southern California
Very nice!! What is the plans for cams and induction? Also always curious about cost?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Mar 5 2026, 05:31 PM
Post #9


Distracted Member
***

Group: Members
Posts: 1,729
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California
Ooooh, please lots of pics and details! Those JE’s look very similar in profile and piston cut to the Mahles that just went into my burnt 3.4.

Attached Image

What cylinders are those/where’d you source? I have some older Mahle motorsport 98mm single plug pistons i was thinking of doing a 3.2SS… but i need to source the cylinders or have the 3.0 cylinders bored and coated???
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 5 2026, 06:49 PM
Post #10


914-6 GT in waiting
***************

Group: Members
Posts: 20,526
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Steve @ Mar 5 2026, 05:04 PM) *

Very nice!! What is the plans for cams and induction? Also always curious about cost?

Cams are special. Streetable but very performance oriented. Induction will be Clewett ITB’s and Haltech efi. Cost is a core engine, parts and labor. The efi & itb’s add a significant cost over stock induction but really make it fun.

A note about EFI. There’s a cost for parts but you can expect to pretty much double the cost to actually get it running and tuned. We’ll have a custom harness made, engine installed in the car and dyno tuned.

I’ll post the engine to completion and then show it in the car if the buyer is ok with it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 5 2026, 06:55 PM
Post #11


914-6 GT in waiting
***************

Group: Members
Posts: 20,526
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region

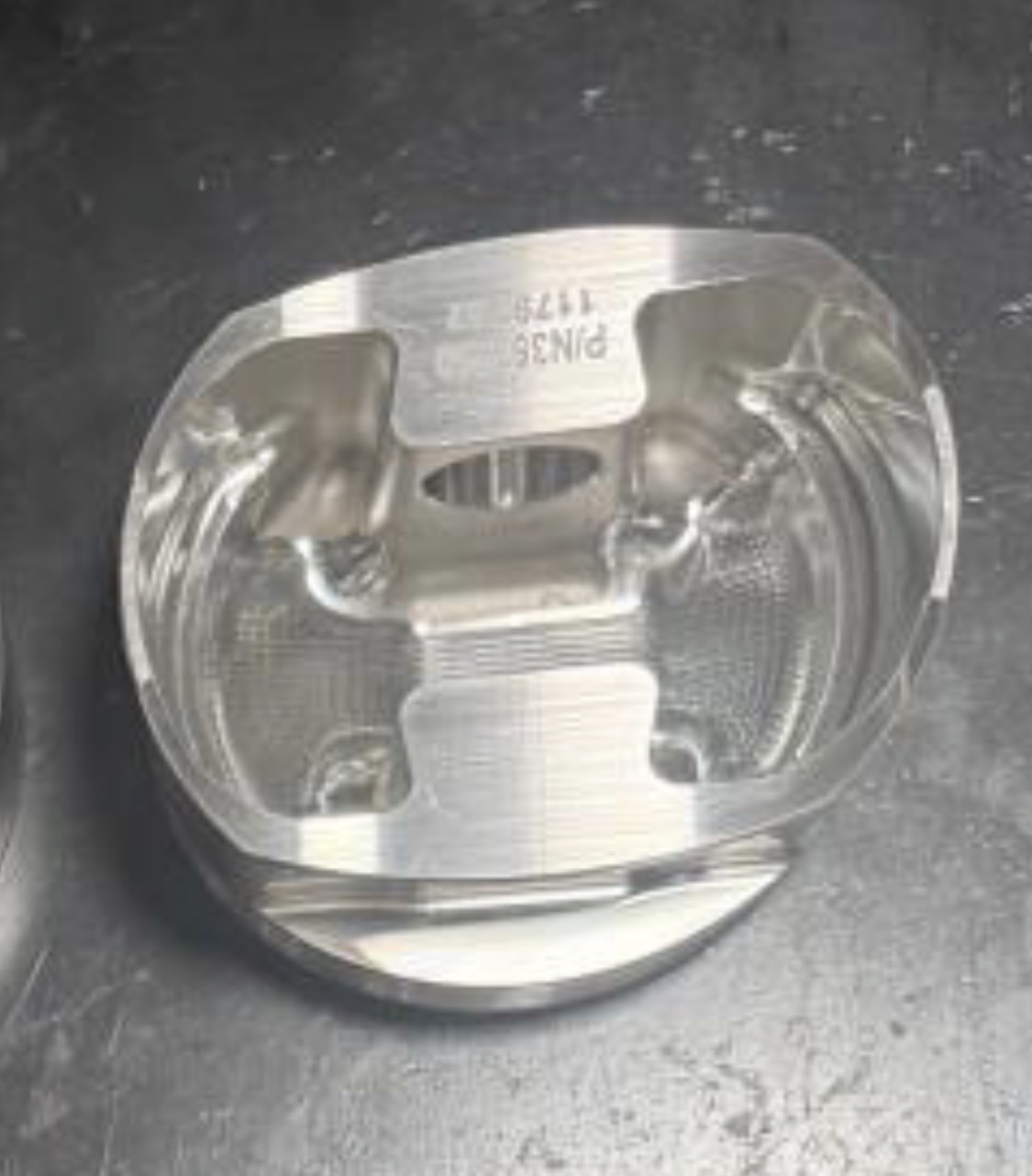

Hard to tell from the pics but the pistons are undercut to save a bit of weight. Pauter rods are lighter and stronger than stock. It all adds up, or in this case, adds up to less weight.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flyer86d
post Mar 6 2026, 05:10 AM
Post #12


Member
**

Group: Members
Posts: 484
Joined: 12-January 11
From: Corea, Maine
Member No.: 12,585
Region Association: North East States
I had a very similar motor in my track 911 way back when but with Weber 46’s and GE80 cams. It was a wonderful revvy engine that would light off the tires in first when it came up on its cams at 5000rpm, rev to 7500 and was very reliable. I never had it out of the car in the eight years I owned it. This will be a fun motor!

Charlie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Mar 8 2026, 03:05 PM
Post #13


Advanced Member
****

Group: Members
Posts: 4,524
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
Gonna be a rocket, keep posting as you go
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 8 2026, 03:11 PM
Post #14


914-6 GT in waiting
***************

Group: Members
Posts: 20,526
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Slowed down a bit while we finish a stock-ish 2.4 for a customer and work on some other stuff.

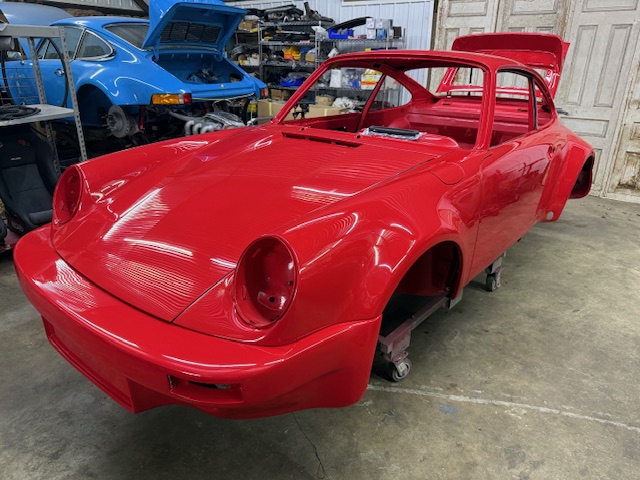

Also building an IROC car.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
