> Brake line plastic clips?
Chris914n6
post Feb 19 2026, 04:32 PM
Post #1


Jackstands are my life.
****

Group: Members
Posts: 3,535
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region
Maybe I'm calling them the wrong thing but I can't seem to find factory repro or generic fit clips to hold the hard brake lines to sheetmetal (engine bay in particular).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TRP
post Feb 19 2026, 05:19 PM
Post #2


Member
**

Group: Members
Posts: 348
Joined: 2-September 23
From: Morgan Hill, CA
Member No.: 27,559
Region Association: None
Are you talking about the rectangular white ones that have a rod/shaft that pushes into the clip to hold it to the firewall/engine bay?

I need two of those as well. Not sure what they are called.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TRP
post Feb 19 2026, 05:55 PM
Post #3


Member
**

Group: Members
Posts: 348
Joined: 2-September 23
From: Morgan Hill, CA
Member No.: 27,559
Region Association: None
They kind of look like this:

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Feb 20 2026, 04:44 PM
Post #4


914 Guru
*****

Group: Members
Posts: 9,480
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region

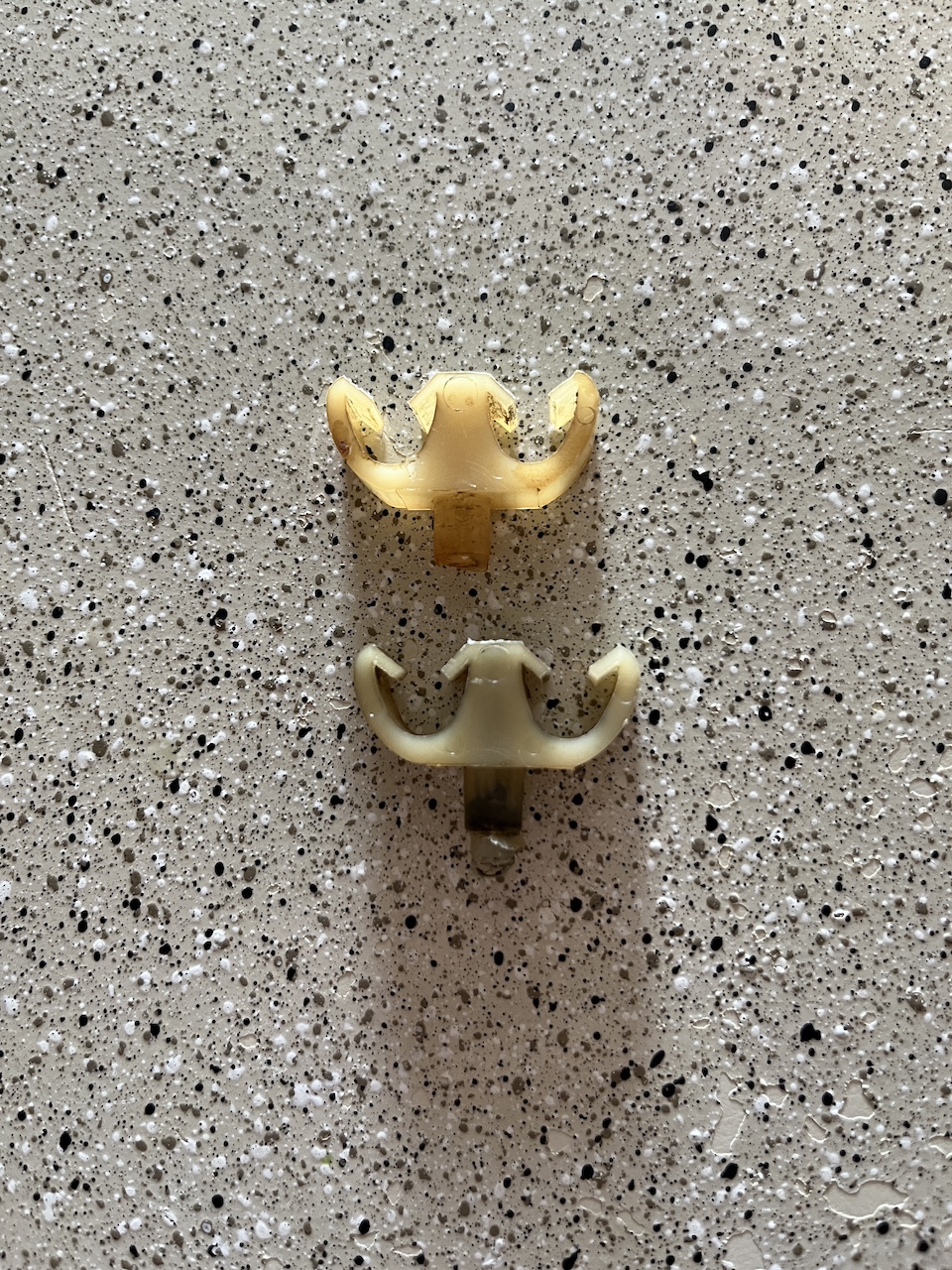

This what your talking about?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DennisV
post Feb 20 2026, 05:54 PM
Post #5


Senior Member
***

Group: Members
Posts: 921
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California
QUOTE(Chris914n6 @ Feb 19 2026, 02:32 PM) *

Maybe I'm calling them the wrong thing but I can't seem to find factory repro or generic fit clips to hold the hard brake lines to sheetmetal (engine bay in particular).

Are you able to find it in the PDF parts catalog to provide a part number or better illustrate where it lives?

The only plastic clip I'm seeing related to hard brake lines is: Pipe Clip (914-1,8V/1,8
914-2,0) 999-507-235-40

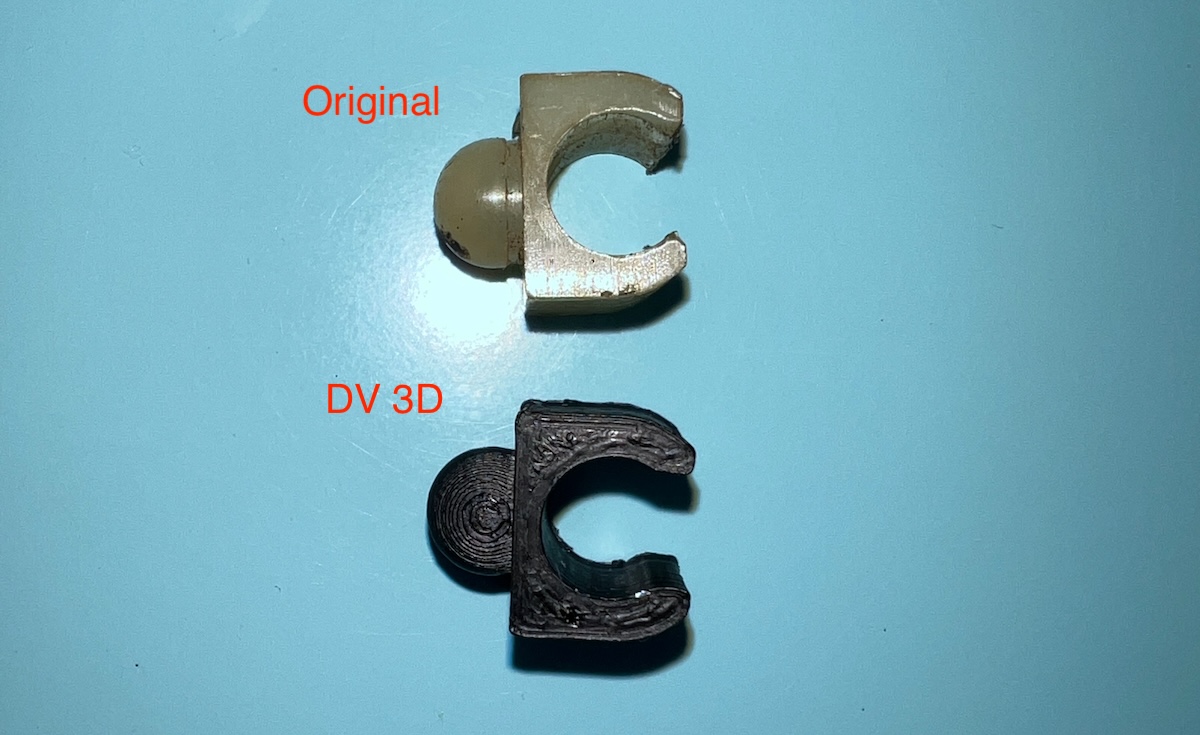

If it's like the one Mark posted, and they really are NLA, I could model that and 3D print a handful in ABS. I would just need someone to loan me an original to take dimensions from. I did this one for the 914-6 fuel rail.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 20 2026, 09:23 PM
Post #6


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,249
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
It would be FANTASTIC if you would make these available. Can you print them in nylon 6?

Referring to the double fuel line clips shown above.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Feb 21 2026, 11:22 AM
Post #7


Senior Member
***

Group: Members
Posts: 1,066
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
(IMG:style_emoticons/default/agree.gif) I would be in for some .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Feb 21 2026, 12:01 PM
Post #8


914 Guru
*****

Group: Members
Posts: 9,480
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
The maybe available at VW sites. Single ignition wire holder. Used one in picture from theSamba


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Feb 21 2026, 01:01 PM
Post #9


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,657
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
(IMG:style_emoticons/default/agree.gif) Those are available new (I have them listed on my site).
The dual fuel line clips Mark posted an example of, I've not found a replacement source for, although Ive been rat-holing good used ones for a while.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Feb 23 2026, 09:19 PM
Post #10


Jackstands are my life.
****

Group: Members
Posts: 3,535
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region
I can see the confusion (IMG:style_emoticons/default/smile.gif)

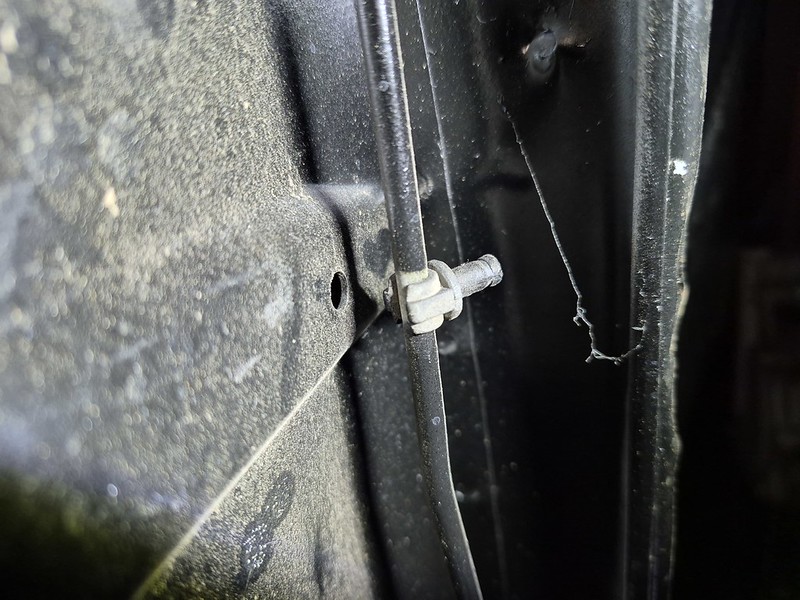

My car, 75. 6mm hole fyi

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-431-1771903185.1.jpg)

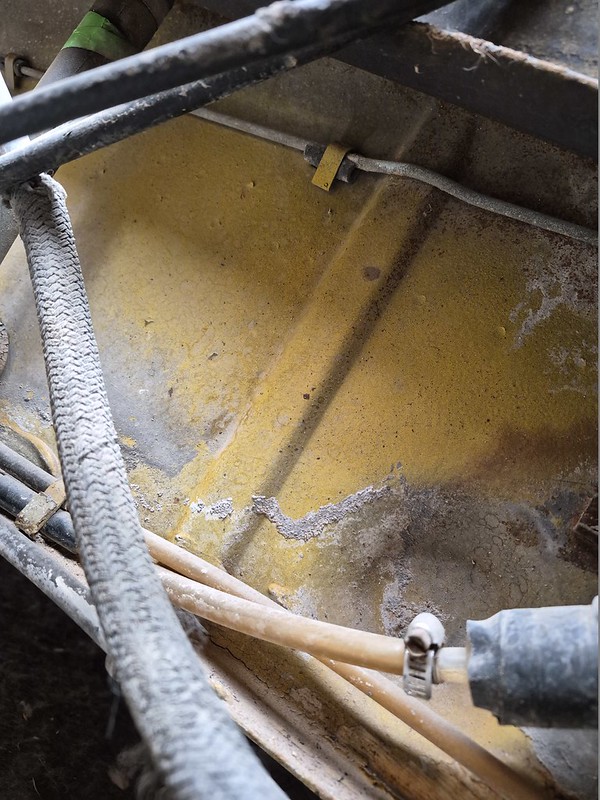

My other car, 71. metal tabs

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-431-1771903191.2.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DennisV
post Feb 24 2026, 08:12 AM
Post #11


Senior Member
***

Group: Members
Posts: 921
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California
QUOTE(JeffBowlsby @ Feb 20 2026, 07:23 PM) *

It would be FANTASTIC if you would make these available. Can you print them in nylon 6?

Referring to the double fuel line clips shown above.

I have only printed PLA and ABS, but my printer is capable of handling Nylon.

I'd need someone to loan me an original to take measurements from so I can make a CAD model.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 24 2026, 01:11 PM
Post #12


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,249
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
@DennisV

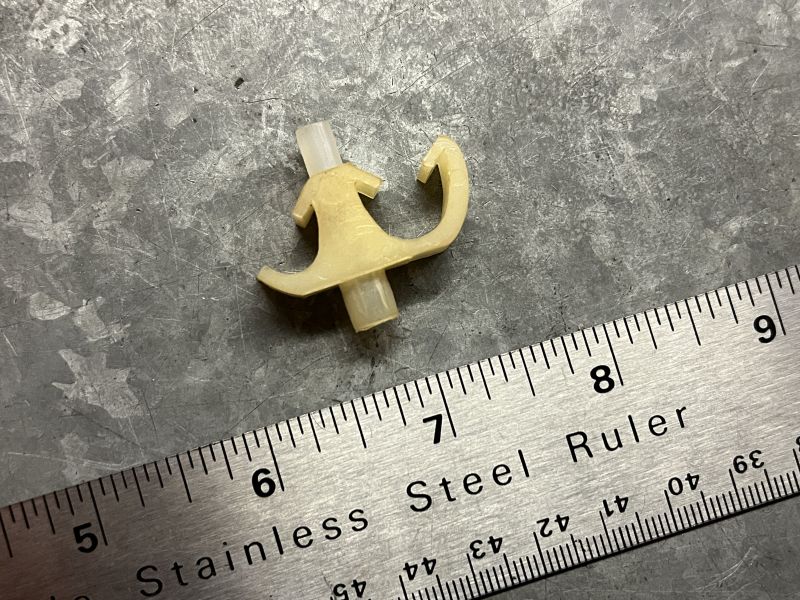

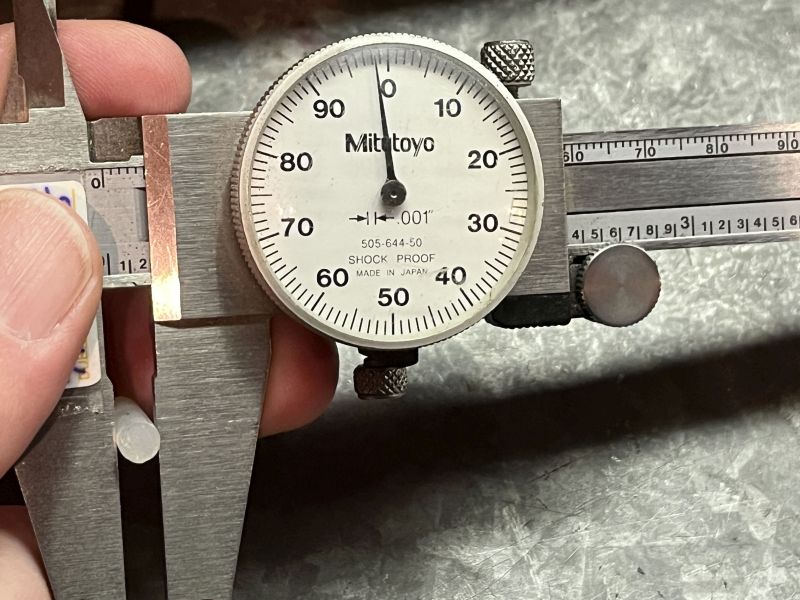

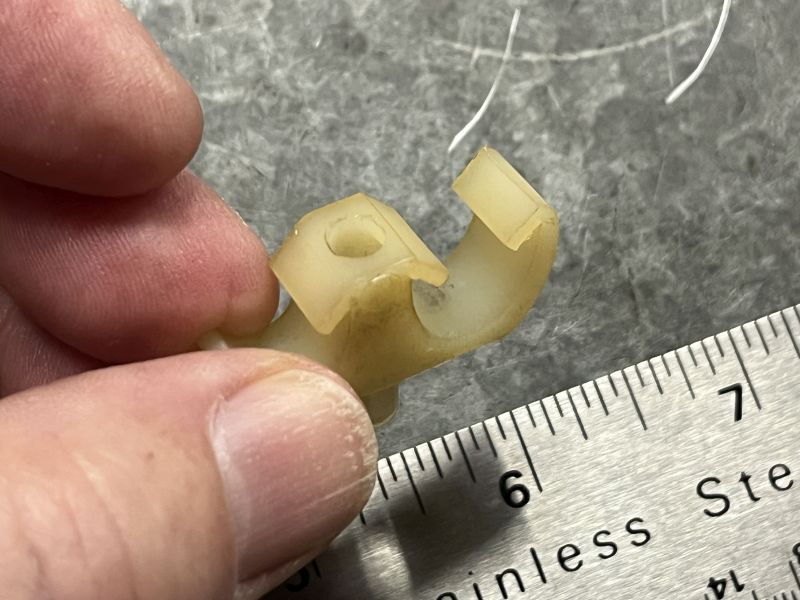

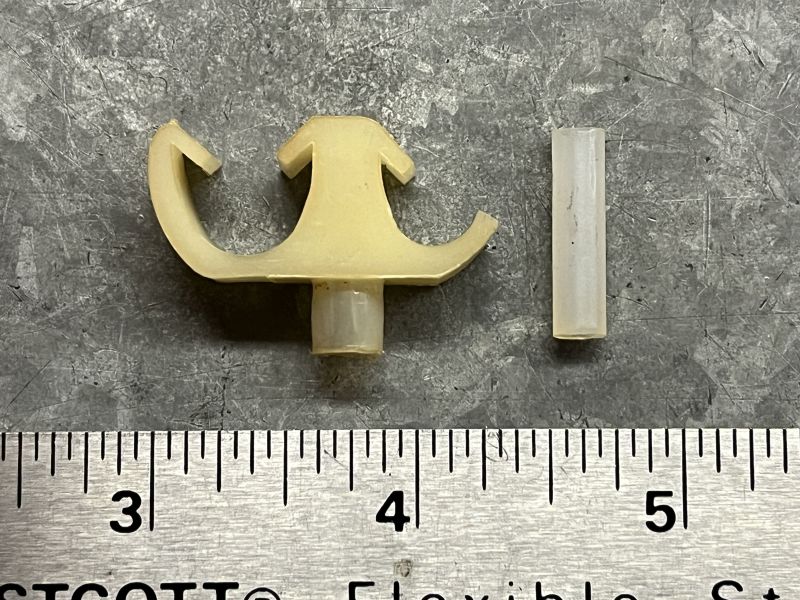

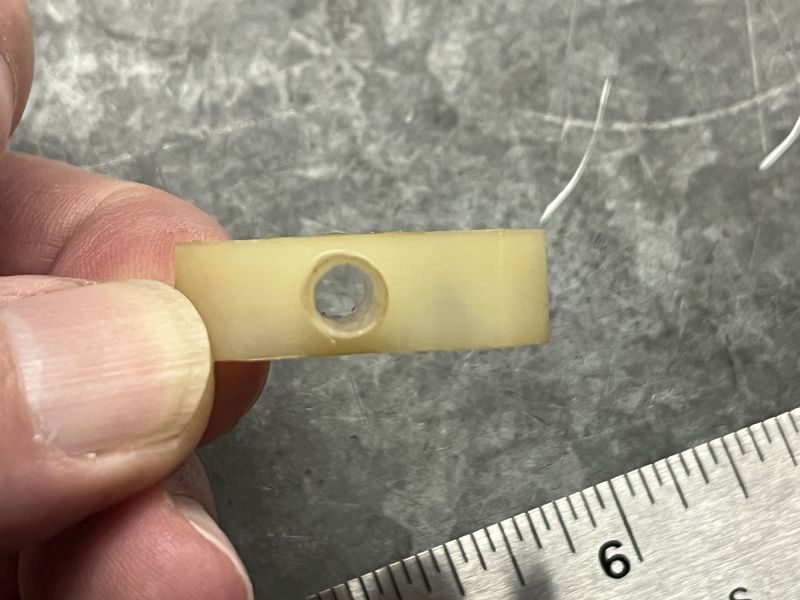

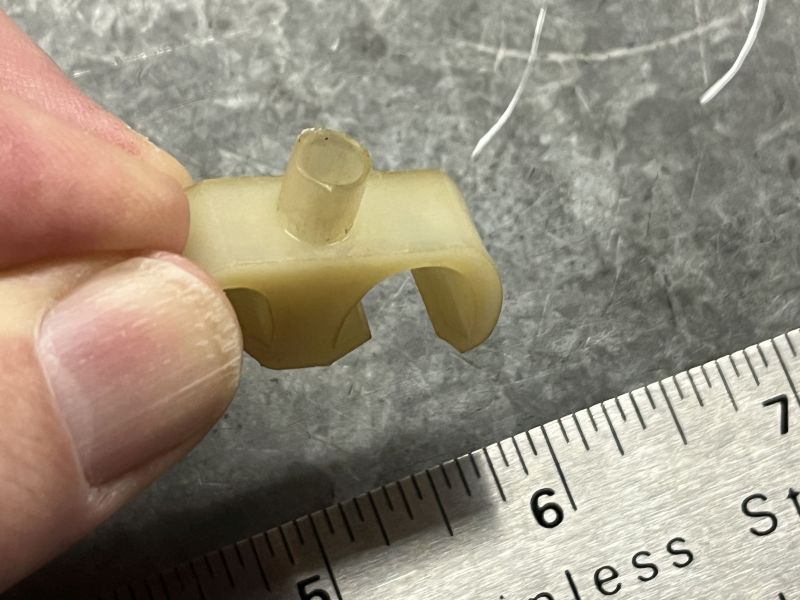

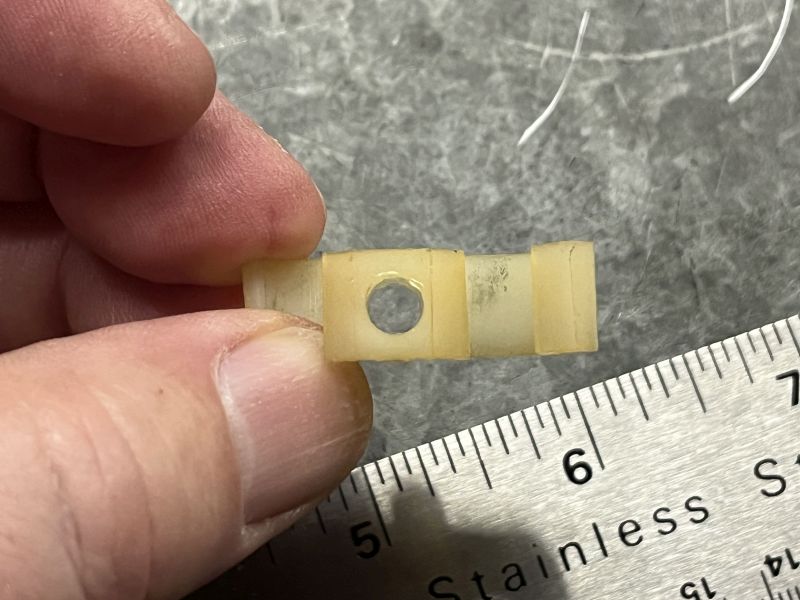

The fuel line clip is 2-pieces, a body and a separate solid ~5mm dia. rod, both of Nylon. The rod inserts into the hole centered in the clip body, and I see subtle bumps inside the hollow tube extension of the hole on the back side of the clip to friction hold the rod in place, once the rod is fully inserted. The two parts are a close tolerance friction fit. The plunger seems to be a uniform OD, not tapered. The clip body holds two fuel lines in parallel. The clip in the photos is broken, but it should have symmetrical arms.

If this cannot be replicated, can something functionally similar be developed and printed?


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914werke
post Feb 24 2026, 03:40 PM
Post #13


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,657
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Your brake line clip (clarified) Are late only 75-76. Amongst the changes to the chassis that we made, doing away with the bendable tabs & replacing them which holes for those clips
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DennisV
post May 13 2026, 05:08 PM
Post #14


Senior Member
***

Group: Members
Posts: 921
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California

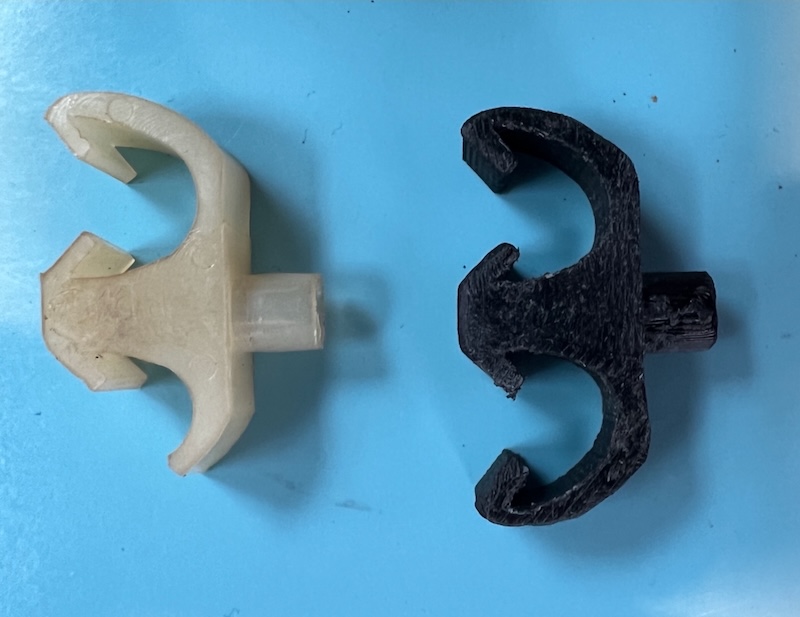

I thought I'd share some progress on a project @JeffBowlsby and I have been fiddling with. First prototype.

Attached Image
