> Brain Trust Help needed on Parking Brake Light, Parking Brake Light Always on......
Gatornapper
post Jul 4 2025, 07:40 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,279
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States



Once again need the help of the great 914 Brain Trust here........

My Parking Brake Light stays on all the time.

The switch is fairly new and it is functioning properly.

Disconnecting the brown (ground) wire to the switch, it has no continuity or resistance to ground. So it is not "grounded out" somewhere.

I see in my great 914 electrical schematic of the ground circuit for the switch and light that there are two diodes in the circuit.

I am guessing that one of them failed.

Can anyone tell me where these two diodes are located?

Or where else the problem might be?

As always,

TIA,

GN
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jul 4 2025, 08:41 PM
Post #2


Get that VIN ?
*****

Group: Members
Posts: 9,819
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



MC ?
I just went through this… (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jamie
post Jul 5 2025, 09:03 AM
Post #3


Senior Member
***

Group: Members
Posts: 1,130
Joined: 13-October 04
From: Georgetown,KY
Member No.: 2,939
Region Association: South East States



QUOTE(jim_hoyland @ Jul 4 2025, 06:41 PM) *

MC ?
I just went through this… (IMG:style_emoticons/default/smile.gif)

I'm also trying to troubleshoot the flashing red instrument light. Didn't locate the brake switch illustrated in the shop manuals, and have no good access down beside the seat. Have pushed the MC pin in several times with no effect, no leaks, and brakes are working just fine. Don't know what to try next? (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Literati914
post Jul 5 2025, 10:01 AM
Post #4


Advanced Member
****

Group: Members
Posts: 2,025
Joined: 16-November 06
From: Dallas, TX
Member No.: 7,222
Region Association: Southwest Region



@Gatornapper - if you pull the combo gauge, you'll see the two diodes... (your model may be different, but) on my '72 there are two diodes going to the e-brake/MC flashing bulb - one diode is looped over from the generator bulb and the other diode is where two Brown/White wires are combined (these are e-brake and 'fasten seat belt dash light').

But before looking in to those - pull the other single Brown/White wire from the bulb and see if the flashing stops.. that's the wire from the MC, and you can isolate the problem that way.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Jul 5 2025, 10:47 AM
Post #5


Senior Member
***

Group: Members
Posts: 1,279
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States



Ah yes! On my schematic it does look like one diode is next to bulb. Other one seems to be near the switch but I don't see one there......

Great suggestion, I will do this.

THANK YOU!

Will let you know.

What is "MC"?

GN


QUOTE(Literati914 @ Jul 5 2025, 10:01 AM) *

@Gatornapper - if you pull the combo gauge, you'll see the two diodes... (your model may be different, but) on my '72 there are two diodes going to the e-brake/MC flashing bulb - one is looped over from the generator bulb and the other is where two Brown/White wires are combined (these are e-brake and 'fasten seat belt dash light').

But before looking in to those - pull the other single Brown/White wire from the bulb and see if the flashing stops.. that's the wire from the MC, and you can isolate the problem that way.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Jul 5 2025, 11:05 AM
Post #6


Senior Member
***

Group: Members
Posts: 678
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region



QUOTE(Gatornapper @ Jul 5 2025, 12:47 PM) *

What is "MC"?

"MC" is short for Master Cylinder.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Literati914
post Jul 5 2025, 12:10 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,025
Joined: 16-November 06
From: Dallas, TX
Member No.: 7,222
Region Association: Southwest Region



QUOTE(BillC @ Jul 5 2025, 12:05 PM) *

QUOTE(Gatornapper @ Jul 5 2025, 12:47 PM) *

What is "MC"?

"MC" is short for Master Cylinder.


Yea that flashing bulb is not just the E-brake warning light - it's also the Master Cylinder warning light. So the non-stop flashing could be from either circuits going to the bulb. You can pull one at a time and see if the light stops blinking. Alternately you could pull the wires off the MC itself.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 5 2025, 12:23 PM
Post #8


914 Guru
*****

Group: Members
Posts: 7,224
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



Simplified schematic from Spoke Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 5 2025, 12:25 PM
Post #9


914 Guru
*****

Group: Members
Posts: 7,224
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(Jamie @ Jul 5 2025, 11:03 AM) *


I'm also trying to troubleshoot the flashing red instrument light. Didn't locate the brake switch illustrated in the shop manuals, and have no good access down beside the seat. Have pushed the MC pin in several times with no effect, no leaks, and brakes are working just fine. Don't know what to try next? (IMG:style_emoticons/default/blink.gif)

Troubleshoot with Multimeter using Spokes schematic above
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Jul 9 2025, 05:44 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,279
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States



Ah, yes.

Thank you SH for the schematic.

NO diodes at light in left gauge - none in sight anywhere. See none in schematic above either. My 914 is '76.

But I will check the Brake Fluid. I just bled the brakes a week ago with 15psi on fluid reservoir system. So reservoir is full.

GN
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jul 9 2025, 06:36 AM
Post #11


Jerry
*****

Group: Members
Posts: 7,194
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



For the MC warning switch, you can disconnect the wires to see if the warning light goes out. Same with the ebrake switch. The flasher will flash with relatively little current through the switches or other leakage.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Jul 11 2025, 06:41 AM
Post #12


Senior Member
***

Group: Members
Posts: 1,279
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States



Thanks Spoke.

Light still flashes with brake wire disconnected.

Gotta get under car to remove MC wire I guess.........yes, light flashes.....

Is wire to MC looking for fluid in MC?

Just bled my brakes and light still flashes. My 914 has 911 MC. Brakes work great, reservoir is full.

GN

QUOTE(Spoke @ Jul 9 2025, 06:36 AM) *

For the MC warning switch, you can disconnect the wires to see if the warning light goes out. Same with the ebrake switch. The flasher will flash with relatively little current through the switches or other leakage.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914
post Jul 11 2025, 07:23 AM
Post #13


Senior Member
**

Group: Members
Posts: 460
Joined: 26-December 02
Member No.: 19
Region Association: Southern California



Is there a reset button/Switch on the Master Cyl?
914/Alan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jul 11 2025, 08:06 AM
Post #14


Michael
**********

Group: Members
Posts: 10,388
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



On my MC there is- ATE. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jamie
post Jul 11 2025, 08:55 AM
Post #15


Senior Member
***

Group: Members
Posts: 1,130
Joined: 13-October 04
From: Georgetown,KY
Member No.: 2,939
Region Association: South East States



QUOTE(914 @ Jul 11 2025, 05:23 AM) *

Is there a reset button/Switch on the Master Cyl?
914/Alan

I've tried that reset switch multiple times without resulting in ending the flashing. Will next remove the wire from the MC when I can next get the car up on the lift.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Jul 14 2025, 03:14 PM
Post #16


Senior Member
***

Group: Members
Posts: 1,279
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States



I'll do the same. Lift presently occupied preparing my sweet 944 S for buyer next week. After acquiring my Concours 951 last September, my beloved wife thinks no man needs two nice 944's, and I actually agree.

What in the world does this wire to the MC do? Make sure there is fluid in MC? Why is there a reset on it?

GN

QUOTE(Jamie @ Jul 11 2025, 08:55 AM) *

QUOTE(914 @ Jul 11 2025, 05:23 AM) *

Is there a reset button/Switch on the Master Cyl?
914/Alan

I've tried that reset switch multiple times without resulting in ending the flashing. Will next remove the wire from the MC when I can next get the car up on the lift.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 14 2025, 05:47 PM
Post #17


914 Guru
*****

Group: Members
Posts: 7,224
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(Gatornapper @ Jul 14 2025, 05:14 PM) *



What in the world does this wire to the MC do? Make sure there is fluid in MC? Why is there a reset on it?


The master cylinder switch senses a loss of pressure in either of the two braking circuits.

If there is a pressure differential across the sensing piston inside the master cylinder, it trips the latching switch.

This will occur during brake bleeding - thus the reset switch.

If you haven’t bled the brakes and this circuit is being tripped, it is a serious issue and shouldn’t be ignored.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Jul 17 2025, 06:07 AM
Post #18


Senior Member
***

Group: Members
Posts: 1,279
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States



Change of subject as I have no where else to go: This is the best forum on the planet for a car, and seems to have the best electrical guys like SuperHawk and Spoke, etc.

Any of you guys have a 944? Have strange problem on my '87 944 S re: ignition switch and 12v to AC compressor clutch.......

If so should I start new thread or handle this via PM?

GN
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Literati914
post Jul 17 2025, 12:35 PM
Post #19


Advanced Member
****

Group: Members
Posts: 2,025
Joined: 16-November 06
From: Dallas, TX
Member No.: 7,222
Region Association: Southwest Region



I have the same issue with the stupid flashing light caused by the M.C., I’ve unplugged it’s wire from the bulb for the time being (e-brake still causes it to flash as it should when up).

I’d say ‘don’t be surprised if there is no reset button to push’ … I have 3 old 914 master cylinders and none of them have a reset button. Am I missing something? They all have some type of a square plastic “tower” where the spade(s) are … is that somehow the reset “button”? I lightly tried prying the plastic block off on one and that didn’t seem to be the case (IMG:style_emoticons/default/confused24.gif)

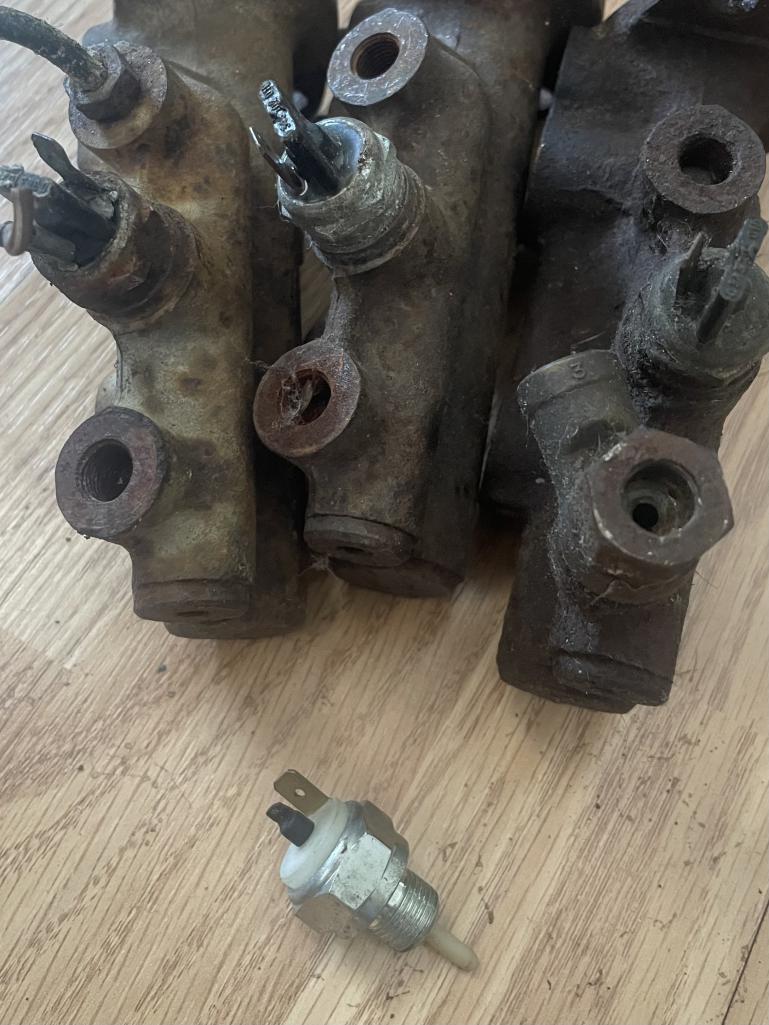

In the pic below, the separate warning switch does actually have a button (under a little cover that's meant to be temporarily removed). I switched it out for a two-spade switch before installing my 914rubber after-market MC and am now wondering if there's maybe a compatibility issue.. did so because my car has an obvious ground wire in that location for the MC. I think I’m gonna try going back to the single spade unit and see if I can get the light to stop blinking.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gatornapper
post Jul 17 2025, 07:28 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,279
Joined: 22-September 17
From: Woods west of Richmond, VA
Member No.: 21,449
Region Association: South East States



Thanks.

Gonna unplug mine - if there is one. My MC is from a 911 - does that one have same reset button and wire?

I'll just monitor my brakes and brake fluid level closely. No need for warning light.

E-Brake switch is another matter - too many times I've driven off with E-brake on!

GN

QUOTE(Literati914 @ Jul 17 2025, 12:35 PM) *

I have the same issue with the stupid flashing light caused by the M.C., I’ve unplugged it’s wire from the bulb for the time being (e-brake still causes it to flash as it should when up).

I’d say ‘don’t be surprised if there is no reset button to push’ … I have 3 old 914 master cylinders and none of them have a reset button. Am I missing something? They all have some type of a square plastic “tower” where the spade(s) are … is that somehow the reset “button”? I lightly tried prying the plastic block off on one and that didn’t seem to be the case (IMG:style_emoticons/default/confused24.gif)

In the pic below, the separate warning switch does actually have a button (under a little cover that's meant to be temporarily removed). I switched it out for a two-spade switch before installing my 914rubber after-market MC and am now wondering if there's maybe a compatibility issue.. did so because my car has an obvious ground wire in that location for the MC. I think I’m gonna try going back to the single spade unit and see if I can get the light to stop blinking.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
