thecleanoutking |
![]()
Post
#1
|
Newbie ![]() Group: Members Posts: 38 Joined: 8-May 24 From: Florida Member No.: 28,109 Region Association: South East States ![]() |

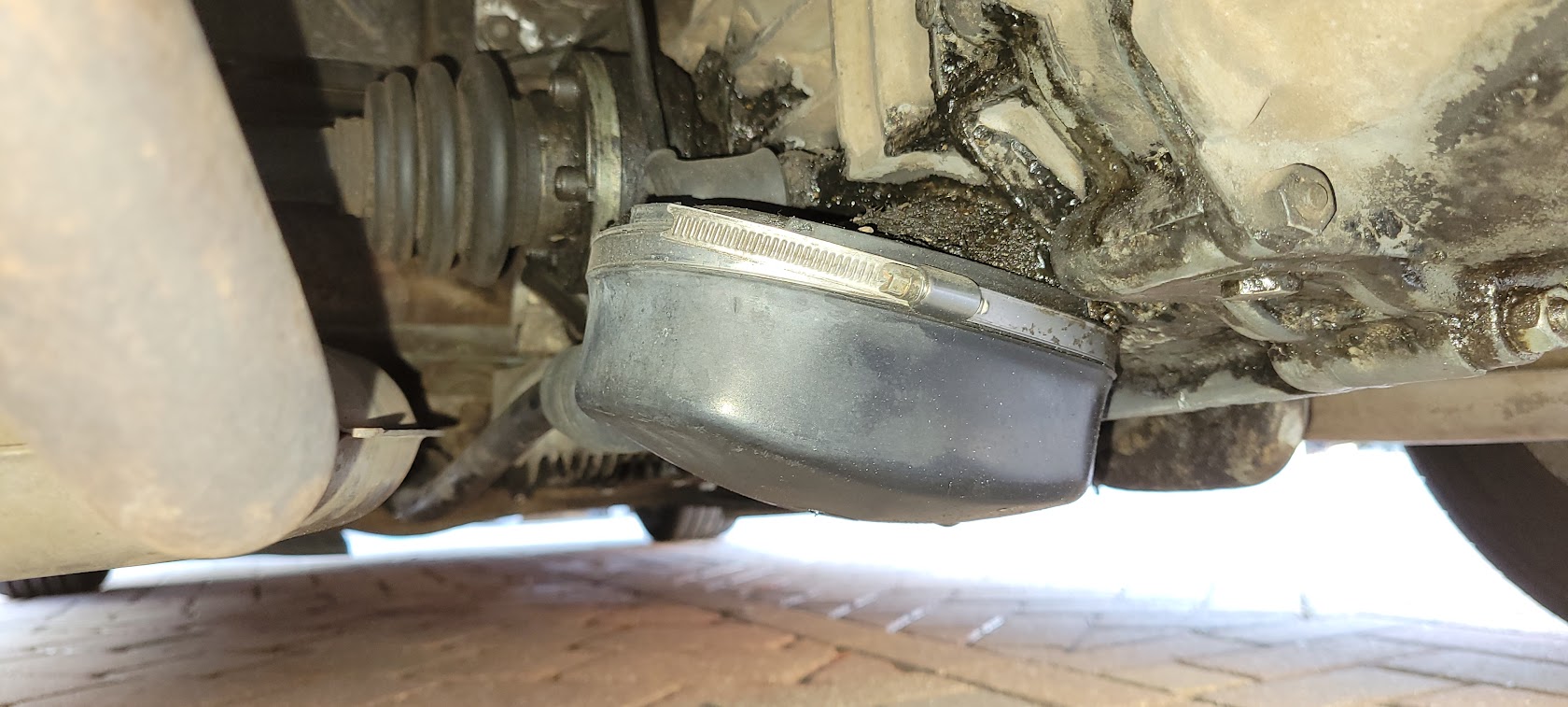

As I get to know and love this 914 I bought back in July. I was looking around underneath yesterday and noticed an oil drip around a part I don't really know what it is??
Sorry just not that familiar with these cars thought maybe some of you could tell me a bit about what I'm looking at and where oil might be coming from.. I think its either a transmission breather or some kind of external filter?? Before I remove that clamp and look at what's there thought I might ask here first.. The oil seems to be coming from above it.. ![]() |
rjames |
![]()
Post
#2
|
I'm made of metal ![]() ![]() ![]() ![]() Group: Members Posts: 4,207 Joined: 24-July 05 From: Shoreline, WA Member No.: 4,467 Region Association: Pacific Northwest ![]() ![]() |
That’s just the cover for the shift console.
Hard to tell from that pick where the oil is coming from. Prob a mix of oil and tranny fluid. |
Shivers |
![]()
Post
#3
|
Senior Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,920 Joined: 19-October 20 From: La Quinta, CA Member No.: 24,781 Region Association: Southern California ![]() |

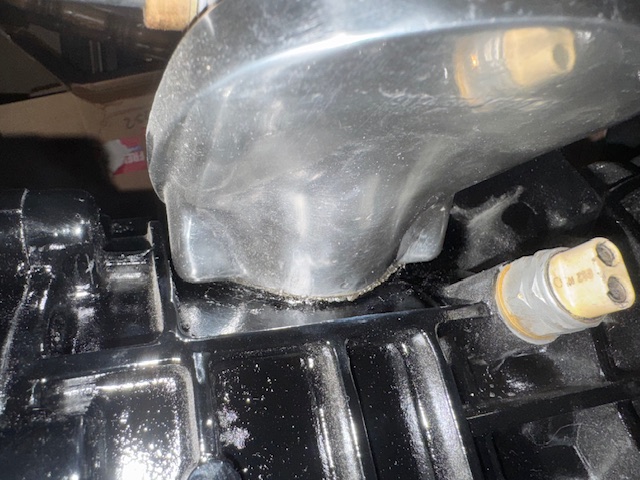

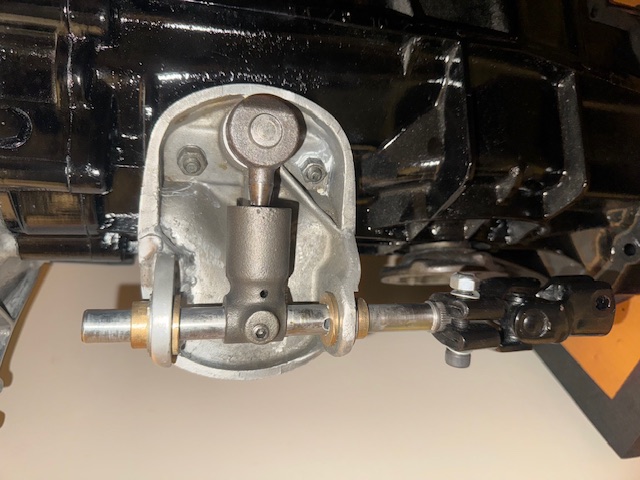

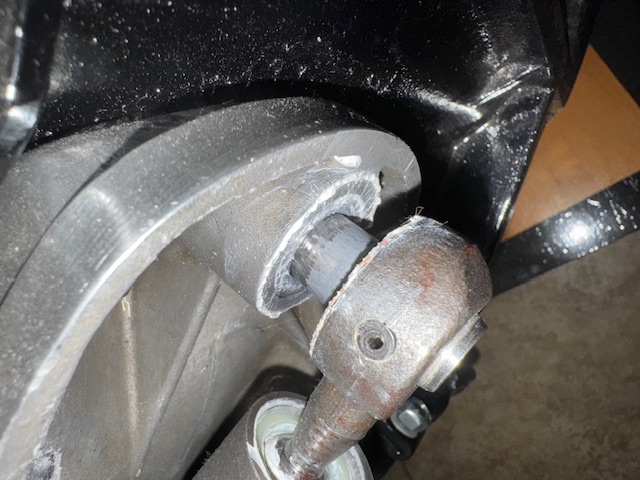

Shift console. Two places it may leak. Where the shift shaft goes through the console and where it attaches to the transmission.
![]() ![]() ![]() |
dax1969 |
![]()
Post
#4
|
Member ![]() ![]() Group: Members Posts: 381 Joined: 10-March 14 From: belgium Member No.: 17,103 Region Association: None ![]() ![]() |
Good day, Had a leak there as well. Replaced the shaft seal and the rubber ring. Take it apart and you will see. note : a friend of mine had a leak coming from one of the studs. He took the stud out and re-installed with some sealer. btw, the black crud is some kind of protection the factory applied to the transmission. It's some kind of tar that I painstakingly removed by chipping it away. I thought it was hardened grease but nope.. good luck Dax |
930cabman |
![]()
Post
#5
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 3,905 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States ![]() ![]() |
assuming it's a minor leak, you might consider leaving it. keep your eye on the trans oil level.
It's not a huge job to repair if you decide to get it fixed. |
fiacra |
![]()
Post
#6
|
Person.Woman.Man.Camera.TV ![]() ![]() ![]() Group: Members Posts: 513 Joined: 1-March 19 From: East Bay Region - California Member No.: 22,920 Region Association: Northern California ![]() ![]() |
Transaxle oil is pretty pungent and has a very distinct smell. Your nose can tell you whether or not this is from the transmission or the engine.
|
worn |
![]()
Post
#7
|
Winner of the Utah Twisted Joint Award ![]() ![]() ![]() ![]() Group: Members Posts: 3,430 Joined: 3-June 11 From: Madison, WI Member No.: 13,152 Region Association: Upper MidWest ![]() ![]() |
Transaxle oil is pretty pungent and has a very distinct smell. Your nose can tell you whether or not this is from the transmission or the engine. Hadn’t thought about that but you are absolutely right. Looks like a relatively small oil discharge compared to many that I have caused, er hmmm I mean have seen. |
r_towle |
![]()
Post
#8
|
Custom Member ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 24,705 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States ![]() ![]() |
Remove clamp from cover
Pull cover off (it does not come off, just turn it and empty it out Clean it out Put it back Monitor it in 6 months |
![]() ![]() |
![]() |
