> Brake Lights, FIXED TODAY
jim_hoyland
post Oct 5 2024, 05:59 PM
Post #1


Get that VIN ?
*****

Group: Members
Posts: 9,474
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



While working on an unrelated issue, I lost the brake lights.
Fuse on #9 is good, how does the brake pedal switch activate the stop lights ?
Need to know where to start……
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jfort
post Oct 5 2024, 06:24 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,142
Joined: 5-May 03
From: Findlay, OH
Member No.: 652
Region Association: Upper MidWest



We lost ours on the 914 race car. Switch at the brake pedal. Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jfort
post Oct 5 2024, 06:27 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,142
Joined: 5-May 03
From: Findlay, OH
Member No.: 652
Region Association: Upper MidWest

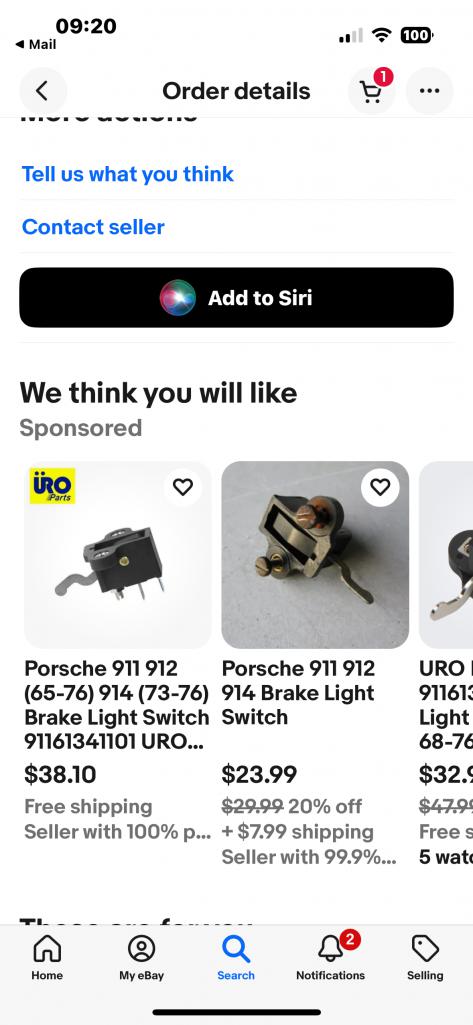

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Oct 5 2024, 06:33 PM
Post #4


Get that VIN ?
*****

Group: Members
Posts: 9,474
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



How is the switch wired, I’m looking to see where it goes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Oct 5 2024, 07:03 PM
Post #5


can't remember
****

Group: Members
Posts: 3,326
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest



QUOTE(jim_hoyland @ Oct 5 2024, 05:33 PM) *

How is the switch wired, I’m looking to see where it goes

The switch is inside at the pedal cluster. It is normally open, with a lever that rides on the pushrod between the pedal and master. When you step on the pedal a spring closes the switch and current lights up the lights. As indicated, replacements are available and not too overengineered. As in kind of inexpensive.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Oct 5 2024, 07:47 PM
Post #6


bdstone914
****

Group: Members
Posts: 4,700
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



@jim_hoyland
' post='3171371' date='Oct 5 2024, 05:33 PM']
How is the switch wired, I’m looking to see where it goes
[/quote]

They rarely fail.

Do you have power at fuse 9 ?

What wiring issue were you working on as it sound like it is related.

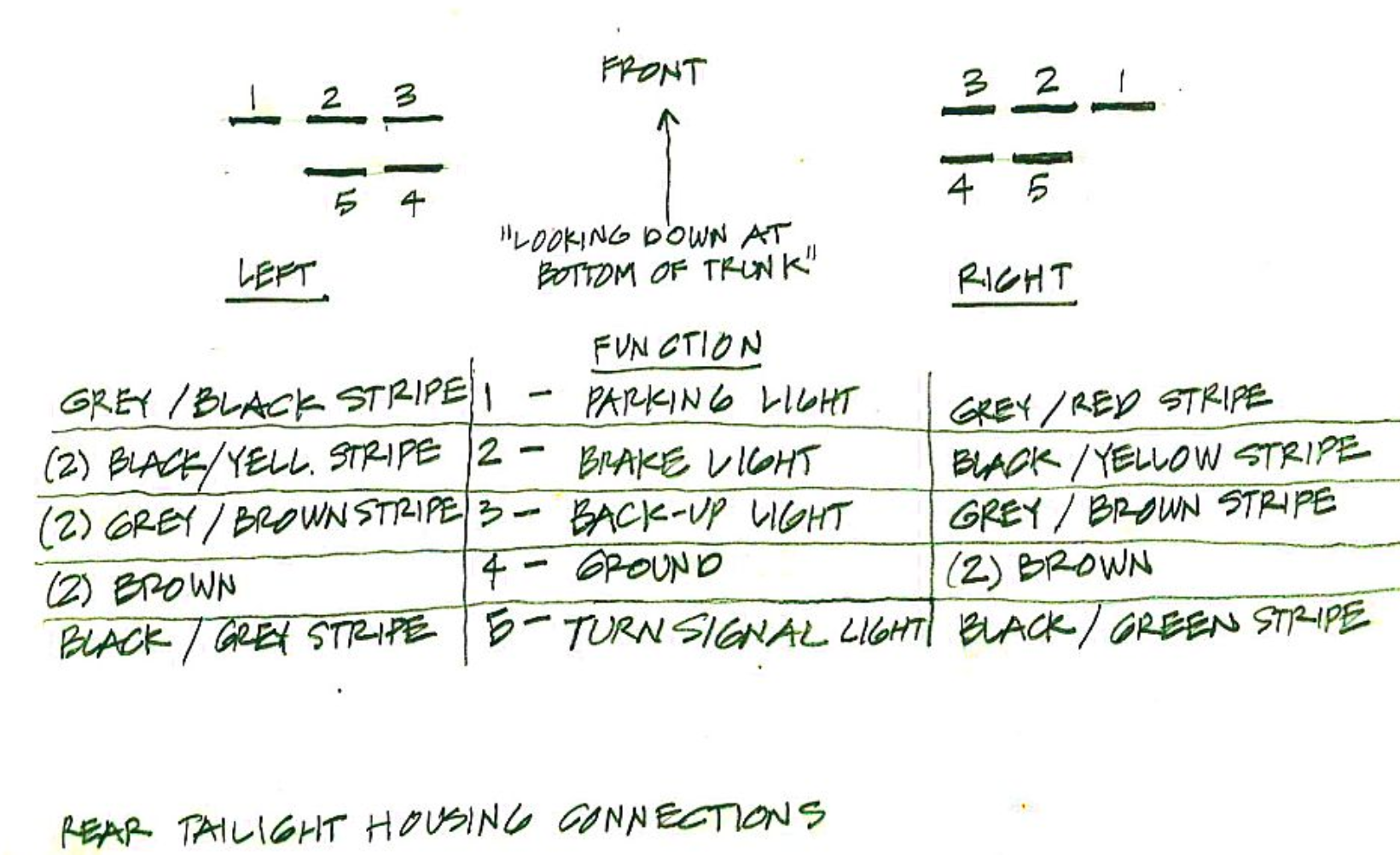

With ignition on, one of the wires at the switch should have power. I would first check for power at the brake light socket then the wire into the housing. I use a stick to depress and hold the pedal down if a helper is not available.

If all checks out there then move to the pedals.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Oct 5 2024, 08:18 PM
Post #7


Get that VIN ?
*****

Group: Members
Posts: 9,474
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California

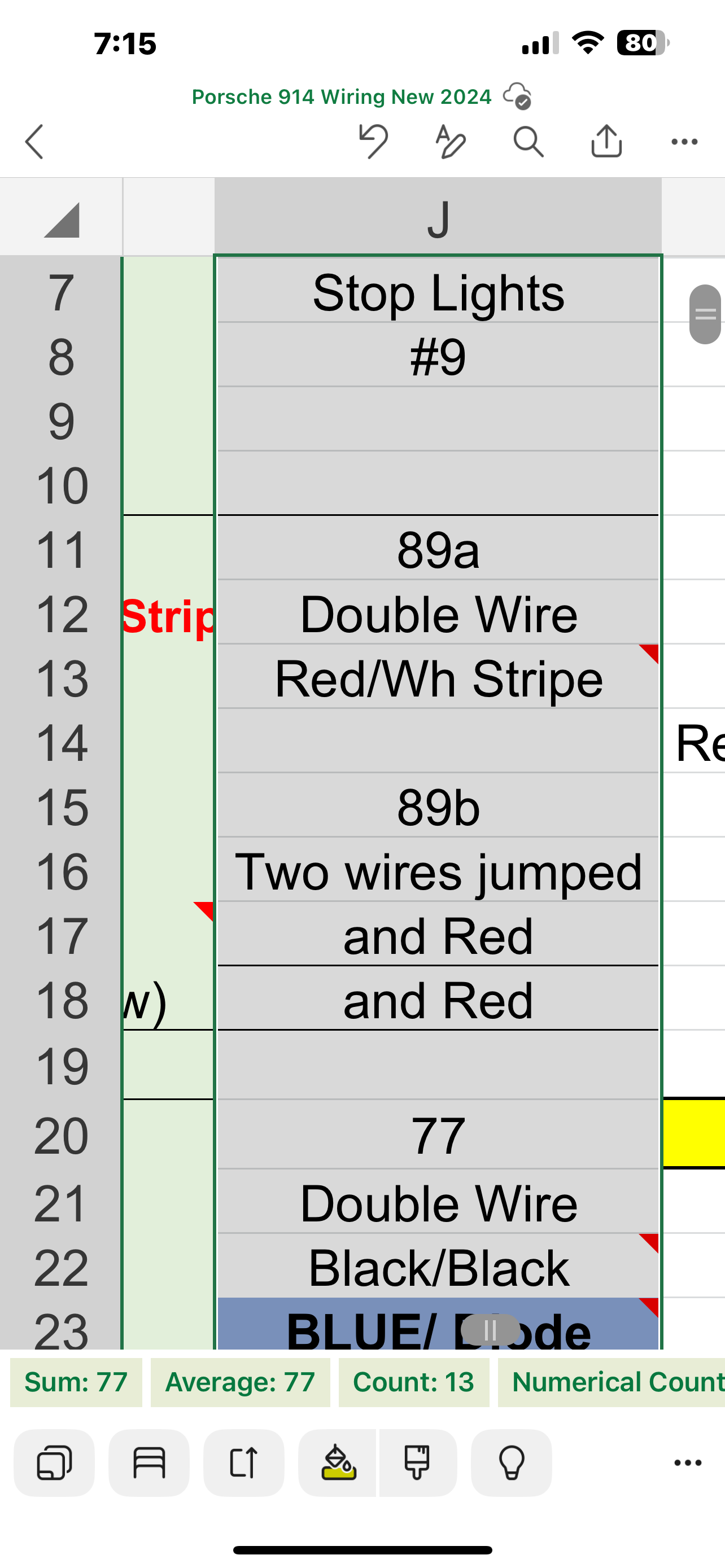

Power at Fuse 9
All the connections in the trunk are good.
The blue diode is not there any more


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Oct 6 2024, 02:14 PM
Post #8


Get that VIN ?
*****

Group: Members
Posts: 9,474
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



A wire from the pedal cluster to the back of fuse 9 came loose. All fixed now
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 6 2024, 02:28 PM
Post #9


914 Wizard
**********

Group: Members
Posts: 10,608
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains



(IMG:style_emoticons/default/beerchug.gif)
