> Rear Shocks Washer Sizes, 914-6 Parts ID
DennisV
post Jun 13 2024, 12:16 PM
Post #1


Senior Member
***

Group: Members
Posts: 519
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California



Can anyone tell me the ID, OD, and thickness of the washers used in the rear shock assembly?

The PO of our car swapped out and removed a bunch of stuff. I have a stash of various large washers I can pick through, but can't find specs to know what's correct. They all appear to be NLA, so hard to even find pictures. Are any of these unique in that they're concave or slotted?
  • #4 914-333-503-00 Cap - boge -
  • #5 901-333-511-00 Stop washer
  • #9 914-333-515-01 Washer (aka suspension shim?)
  • #13 914-333-515-00 Washer

Thank you.
Attached Image

P.S. Is it safe to reuse the rubber bump stop (6), donut (11), and cone (12) bushings fi they're not thrashed?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 13 2024, 12:44 PM
Post #2


914 Guru
*****

Group: Members
Posts: 6,138
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



Post WTB - plenty of proper parts out there. They are not standard washers.

New jounce bumpers will be much more pleasant to ride than age hardened parts.

Same for the rubber isolators (11 & 12) - new parts are available, why ride on 50 year old hardened parts?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jun 14 2024, 02:13 AM
Post #3


bdstone914
****

Group: Members
Posts: 4,585
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



@DennisV

They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DennisV
post Jun 24 2024, 08:18 AM
Post #4


Senior Member
***

Group: Members
Posts: 519
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California



QUOTE(Superhawk996 @ Jun 13 2024, 11:44 AM) *

Post WTB - plenty of proper parts out there. They are not standard washers.
...new parts are available, why ride on 50 year old hardened parts?

Fair point on the rubber.

Regarding the washers, I have a lot of standard as well as non-standard. Whether digging through my stash or buying from someone else, I am not sure what I am looking for.

Attached Image

QUOTE(bdstone914 @ Jun 14 2024, 01:13 AM) *

They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce

I would greatly appreciate pictures and any size info you are able to share.

Thank you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DennisV
post Jul 3 2024, 06:37 PM
Post #5


Senior Member
***

Group: Members
Posts: 519
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California



Made some progress, but still wrestling with a few. Is the stepped washer far left of the photo #4 from the parts catalog (914-333-503-00 Cap - boge -)?
Attached Image

Not entirely sure what I'm looking for to get these two:
  • #5 901-333-511-00 Stop washer
  • #9 914-333-515-01 Washer (aka suspension shim?)



User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 3 2024, 08:25 PM
Post #6


914 Guru
*****

Group: Members
Posts: 7,895
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



The need for some of those parts depends on your choice of shock make and model.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 3 2024, 09:47 PM
Post #7


bdstone914
****

Group: Members
Posts: 4,585
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



QUOTE(bkrantz @ Jul 3 2024, 07:25 PM) *

The need for some of those parts depends on your choice of shock make and model.



I think some Koni use a different thread pitch on some early shocks. I remember trying to find a match for one. But i thonk the washers ate all the same.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 3 2024, 09:51 PM
Post #8


bdstone914
****

Group: Members
Posts: 4,585
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



QUOTE(DennisV @ Jun 24 2024, 07:18 AM) *

QUOTE(Superhawk996 @ Jun 13 2024, 11:44 AM) *

Post WTB - plenty of proper parts out there. They are not standard washers.
...new parts are available, why ride on 50 year old hardened parts?

Fair point on the rubber.

Regarding the washers, I have a lot of standard as well as non-standard. Whether digging through my stash or buying from someone else, I am not sure what I am looking for.

Attached Image

QUOTE(bdstone914 @ Jun 14 2024, 01:13 AM) *

They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce

I would greatly appreciate pictures and any size info you are able to share.

Thank you.



I have some sets i am preping for replating. Will try to remember to get pictures. Text me at nine five won five three six seven for seven ate
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 3 2024, 09:55 PM
Post #9


bdstone914
****

Group: Members
Posts: 4,585
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



@DennisV

#dennisv


[quote name='bdstone914' post='3150828' date='Jun 14 2024, 01:13 AM']
They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce
[/quote]
I would greatly appreciate pictures and any size info you are able to share.

Thank you.
[/quote]


I have some sets i am preping for replating. Will try to remember to get pictures. Text me at nine five won five three six seven for seven ate
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 4 2024, 11:11 AM
Post #10


914 Guru
*****

Group: Members
Posts: 6,138
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(DennisV @ Jul 3 2024, 08:37 PM) *

Is the stepped washer far left of the photo #4 from the parts catalog


Yes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 4 2024, 02:19 PM
Post #11


bdstone914
****

Group: Members
Posts: 4,585
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



[quote name='bdstone914' date='Jul 3 2024, 08:55 PM' post='3154606']
@DennisV

#dennisv


[quote name='bdstone914' post='3150828' date='Jun 14 2024, 01:13 AM']
They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce
[/quote]
I would greatly appreciate pictures and any size info you are able to share.

Thank you.
[/quote]


I have some sets i am preping for replating. Will try to remember to get pictures. Text me at nine five won five three six seven for seven ate
[/quote]


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Jul 4 2024, 03:37 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,628
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



QUOTE(bkrantz @ Jul 3 2024, 07:25 PM) *

The need for some of those parts depends on your choice of shock make and model.



^^^ Agreed, this extra hadware I have from a Koni setup differs from my Bilstein setup.

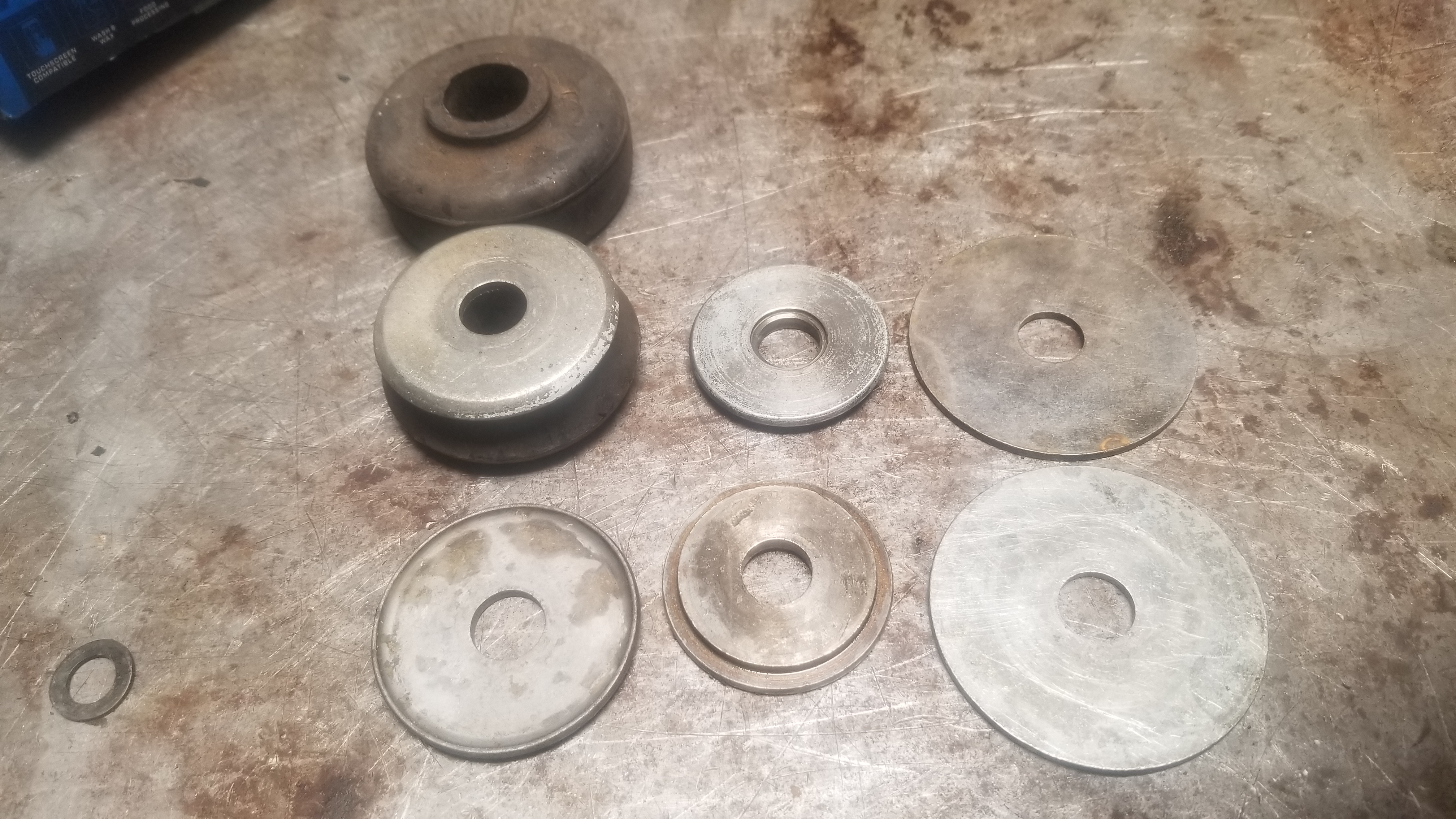

If any of this can be of interest if Bruce doesn't have you covered, let me know. (IMG:style_emoticons/default/smile.gif)


Large file picture for you to zoom in.
Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 4 2024, 10:07 PM
Post #13


bdstone914
****

Group: Members
Posts: 4,585
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



QUOTE(Montreal914 @ Jul 4 2024, 02:37 PM) *

QUOTE(bkrantz @ Jul 3 2024, 07:25 PM) *

The need for some of those parts depends on your choice of shock make and model.



^^^ Agreed, this extra hadware I have from a Koni setup differs from my Bilstein setup.

If any of this can be of interest if Bruce doesn't have you covered, let me know. (IMG:style_emoticons/default/smile.gif)


Large file picture for you to zoom in.
Attached Image



You are missing #13 washers.
It is going to be a couple weeks til i have the parts plated and ready. I only have two complete sets and want two keep one. It seems @dennisv may have some of the parts.
I think the only parts that may be different are the long nuts that go thru the rubber grometts at the top.
I think it was only the early Koni that were a different pitch. I remember trying to chase one down to have enough parts to build a set of shocks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DennisV
post Jul 5 2024, 11:41 AM
Post #14


Senior Member
***

Group: Members
Posts: 519
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California



QUOTE(bdstone914 @ Jul 4 2024, 09:07 PM) *

You are missing #13 washers.

Thanks for the photos and replies.

I thought I had #13 and was missing #5 and #9.
(IMG:style_emoticons/default/unsure.gif)

FWIW - I took off old Koni's and am planning to install original setup Boge.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Jul 5 2024, 02:04 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,628
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Dennis, I think Bruce meant, I (me) in my picture am missing #13. (IMG:style_emoticons/default/smile.gif)

Bruce is my reference (IMG:style_emoticons/default/smilie_pokal.gif) . If there is anything you need in there that Bruce doesn'y have, let me know. (IMG:style_emoticons/default/beerchug.gif)

BTW, adriatic blue? (IMG:style_emoticons/default/wub.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Jul 5 2024, 10:06 PM
Post #16


bdstone914
****

Group: Members
Posts: 4,585
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



@DennisV

' date='Jul 5 2024, 10:41 AM' post='3154865']
[quote name='bdstone914' post='3154763' date='Jul 4 2024, 09:07 PM']
You are missing #13 washers.
[/quote]
Thanks for the photos and replies.

I thought I had #13 and was missing #5 and #9.
(IMG:style_emoticons/default/unsure.gif)

FWIW - I took off old Koni's and am planning to install original setup Boge.
[/quote]

Yes i was repling to Montreal 914 regarding #13 missing.
Do you have the lower shock perches for the Boge? They are unique to Boge.

It looks like you have #13


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DennisV
post Jul 8 2024, 01:01 PM
Post #17


Senior Member
***

Group: Members
Posts: 519
Joined: 8-August 20
From: Santa Rosa, CA
Member No.: 24,575
Region Association: Northern California



I've posted the details I've accumulated to the Parts Vault.

@Montreal914 and @bdstone914 Thanks for the photos. They are helpful. If you have access to #5 and #9 the ID and OD dimensions would be great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Jul 9 2024, 08:11 AM
Post #18


Senior Member
***

Group: Members
Posts: 1,628
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



@DennisV : I will gladly measure them tonight but it would help if someone could identify #5 for me in my picture.

As for #9, I would think they are the larger ones located in between the rubber ones in my picture.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jul 9 2024, 06:34 PM
Post #19


914 Guru
*****

Group: Members
Posts: 8,934
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region

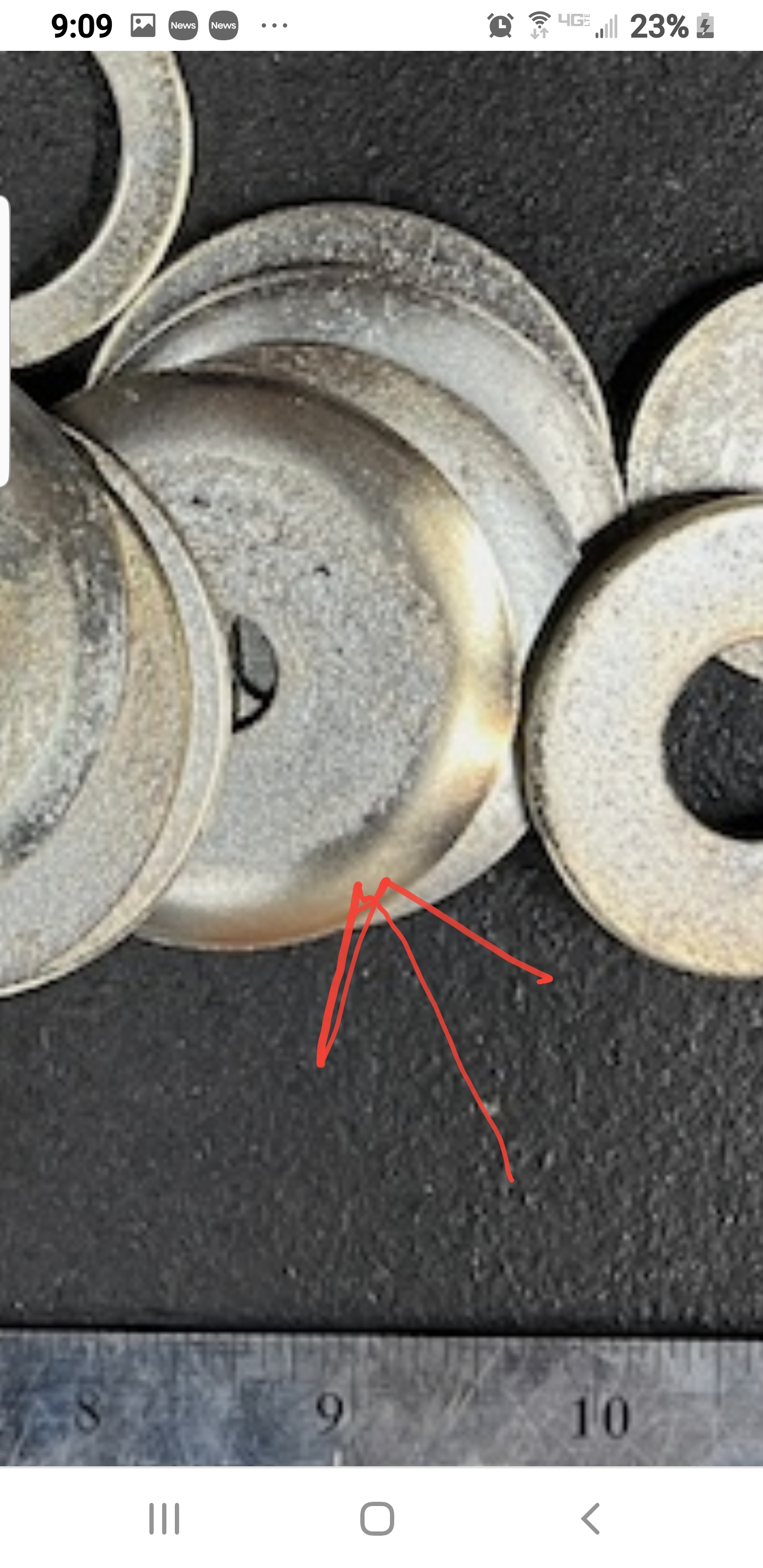

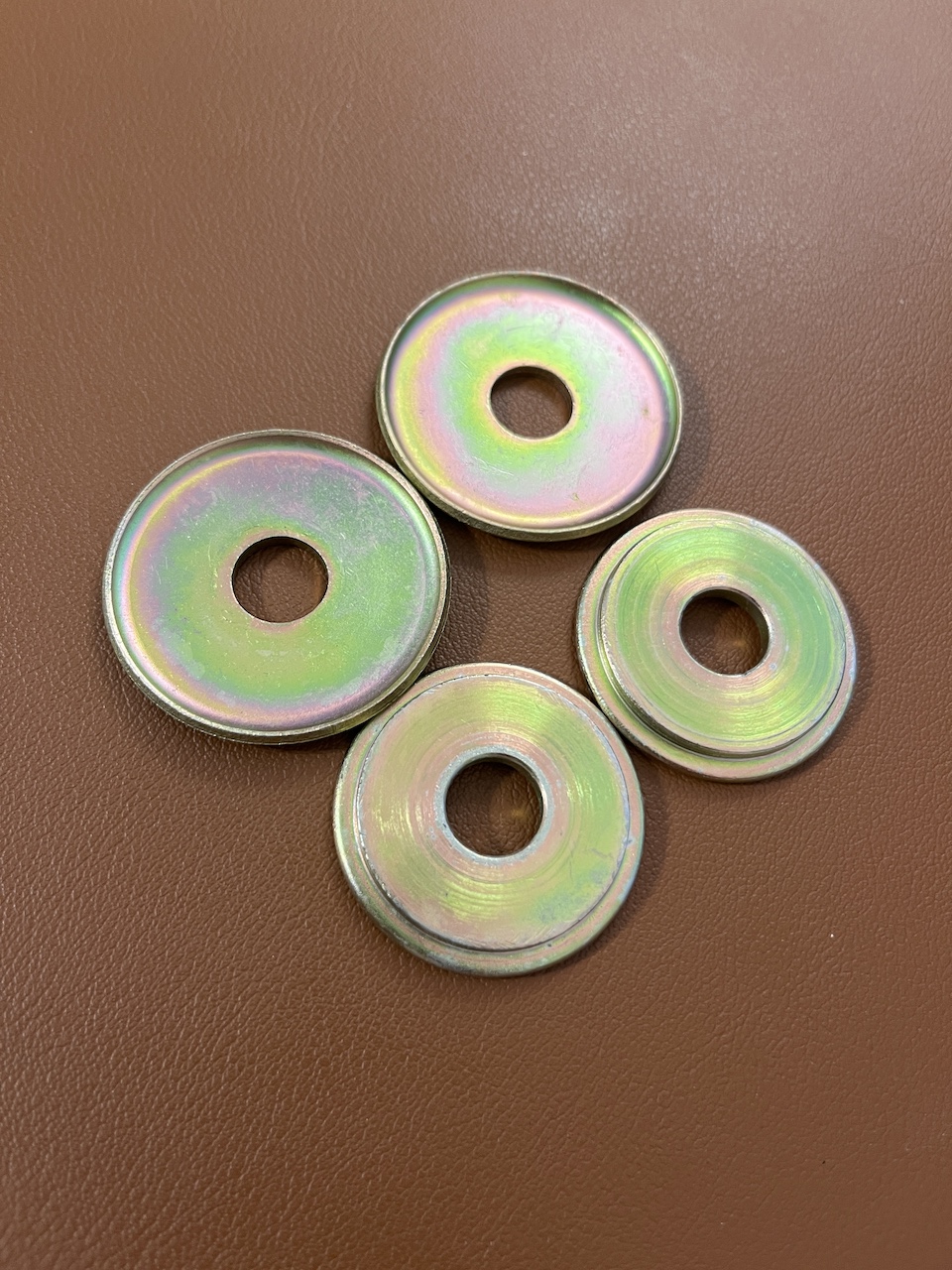

From replated stash


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Jul 10 2024, 02:03 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,628
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



@DennisV

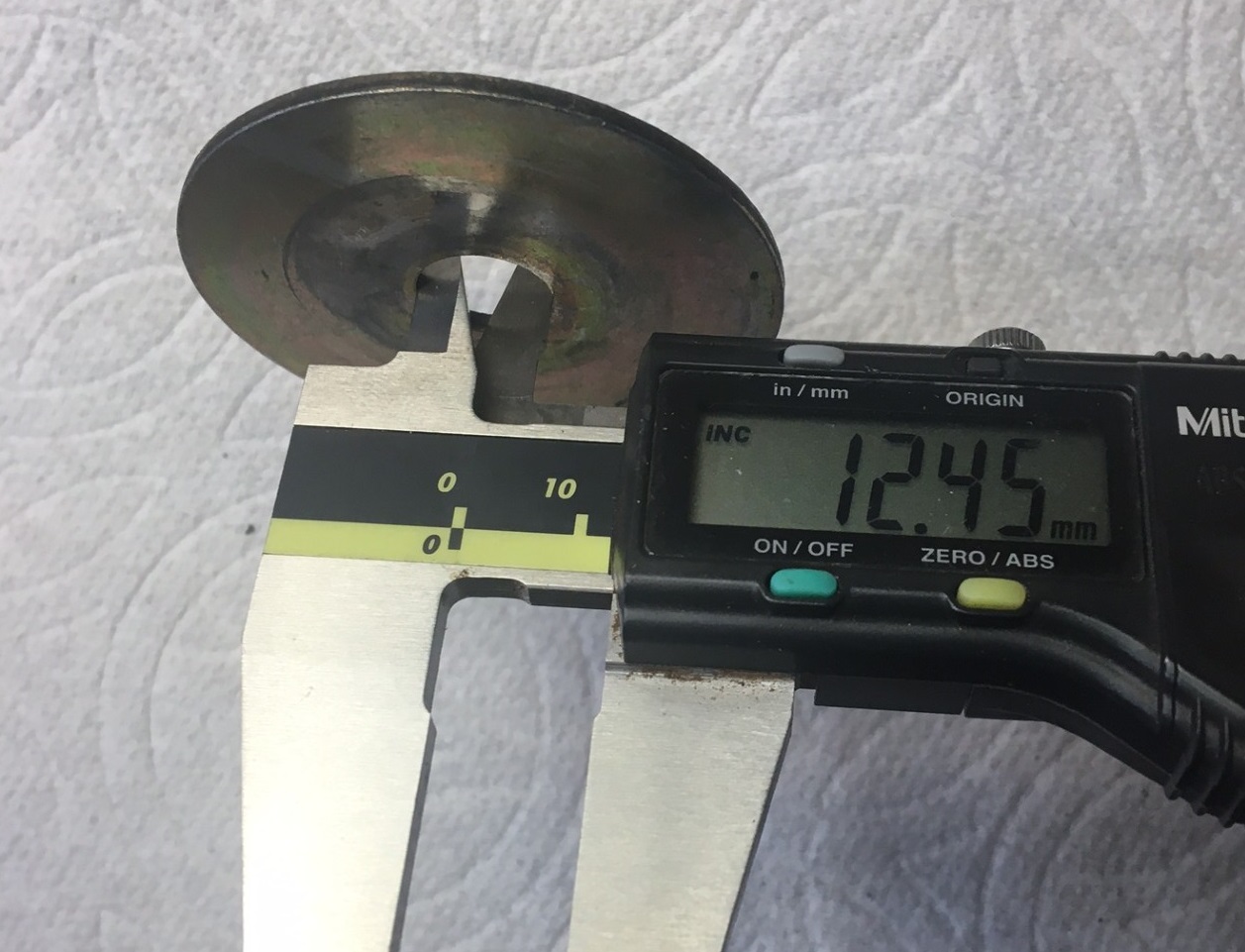

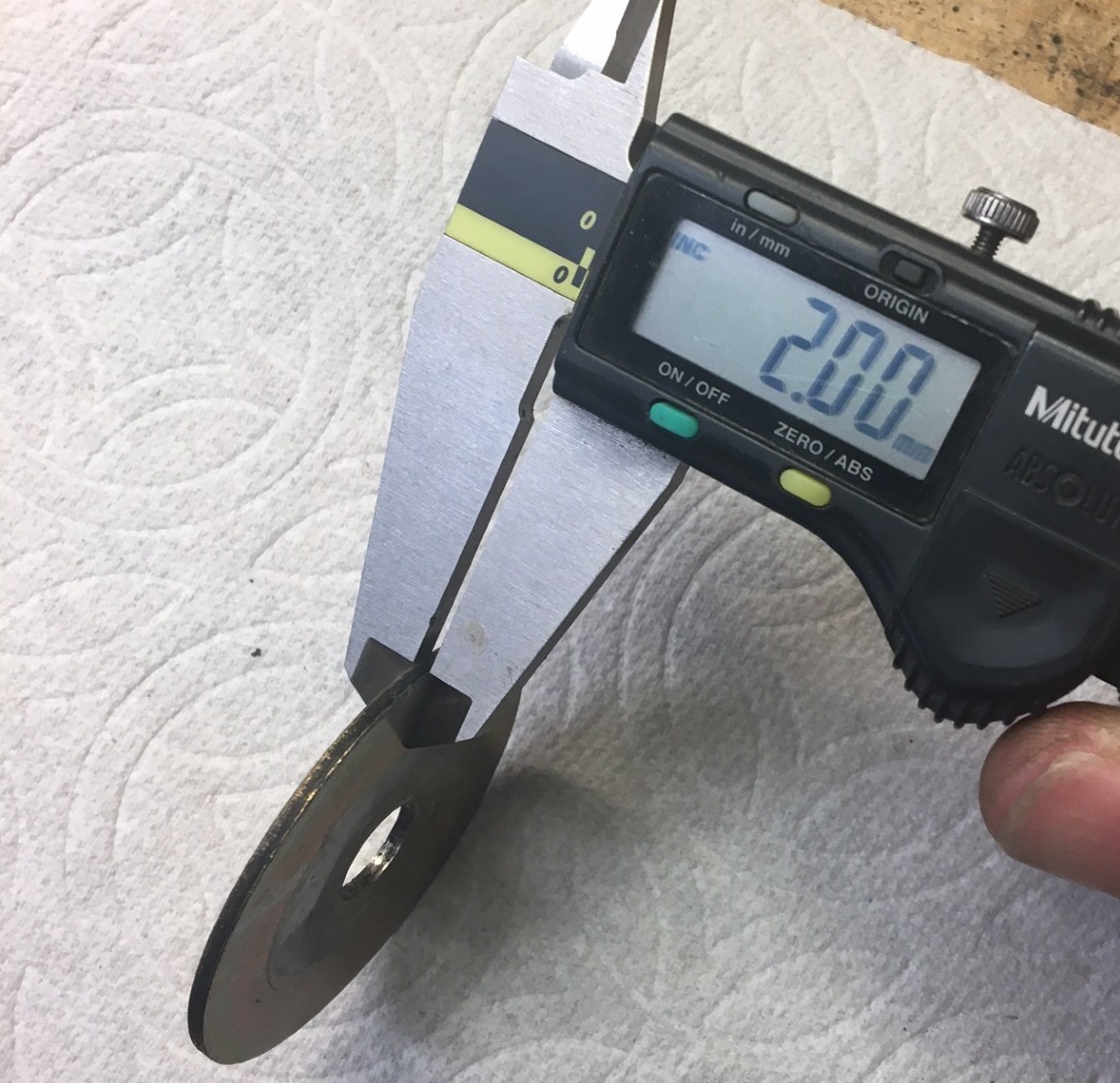

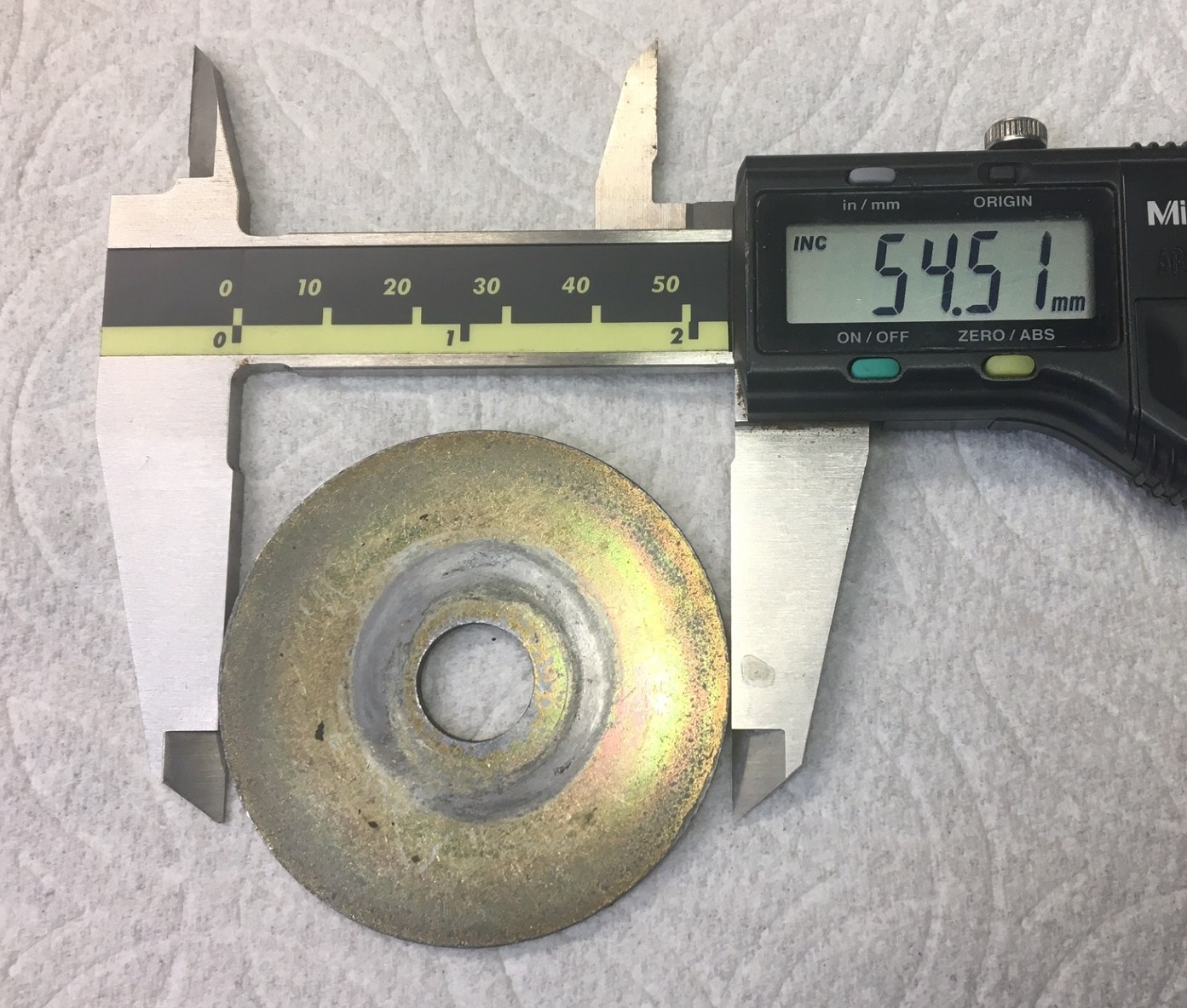

Here is what I measure for #9 (the ones showing in between the rubber stopper in my picture (a few post above).

Attached Image

Attached Image

Attached Image


As for washer #5, I am not sure which one it is (IMG:style_emoticons/default/sad.gif) ...maybe the plastic split ones? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 19th July 2024 - 04:04 AM
