> Fresh air blower motor control indicator lights
Geezer914
post Feb 28 2024, 09:03 AM
Post #1


Geezer914
***

Group: Members
Posts: 1,751
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States



Does anyone have a picture of where the indicator bulb sockets are located on the fresh air blower motor controls for a 75 914? Just want to know before I become a contortionist to replace the bulbs. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Feb 28 2024, 09:36 AM
Post #2


Advanced Member
****

Group: Members
Posts: 4,644
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None




There is one bulb only AFAIK
It is on the right side and only indicates that the fan is operating.
It does not illuminate the controls.

It pushes into a cylindrical holder behind the blue square.
It can be accessed without removing the knee bar.
There is another bulb holder on the left side behind the red square but there is no
wiring to support a light.
This is true of early cars... later cars ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Feb 28 2024, 10:04 AM
Post #3


Geezer914
***

Group: Members
Posts: 1,751
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States



Thanks for the reply! Much appreciated.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
friethmiller
post Feb 28 2024, 10:24 AM
Post #4


Senior Member
***

Group: Members
Posts: 651
Joined: 10-February 19
From: Austin, TX
Member No.: 22,863
Region Association: Southwest Region



I'll go check on my '74. I thought there were two, one on each top corner.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rob-O
post Feb 28 2024, 10:37 AM
Post #5


Senior Member
***

Group: Members
Posts: 1,255
Joined: 5-December 03
From: Mansfield, TX
Member No.: 1,419
Region Association: Southwest Region



There are four…
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
friethmiller
post Feb 28 2024, 10:50 AM
Post #6


Senior Member
***

Group: Members
Posts: 651
Joined: 10-February 19
From: Austin, TX
Member No.: 22,863
Region Association: Southwest Region

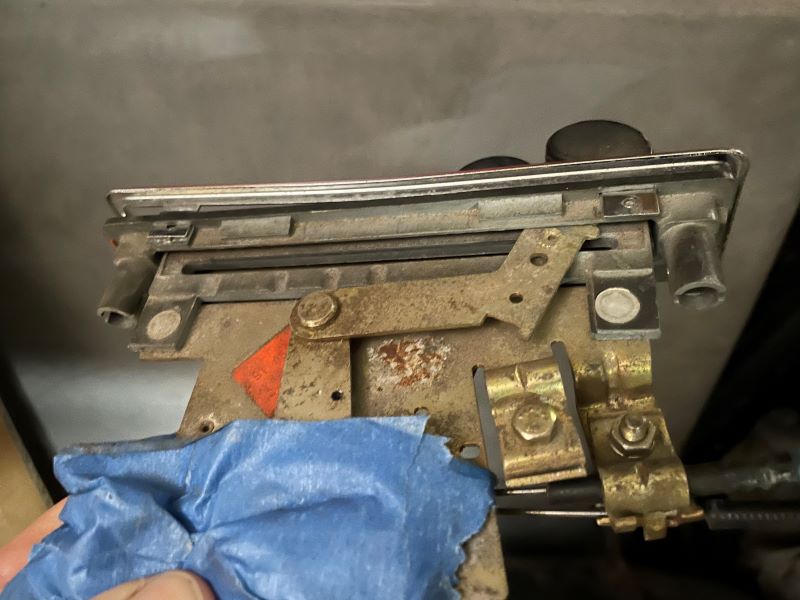

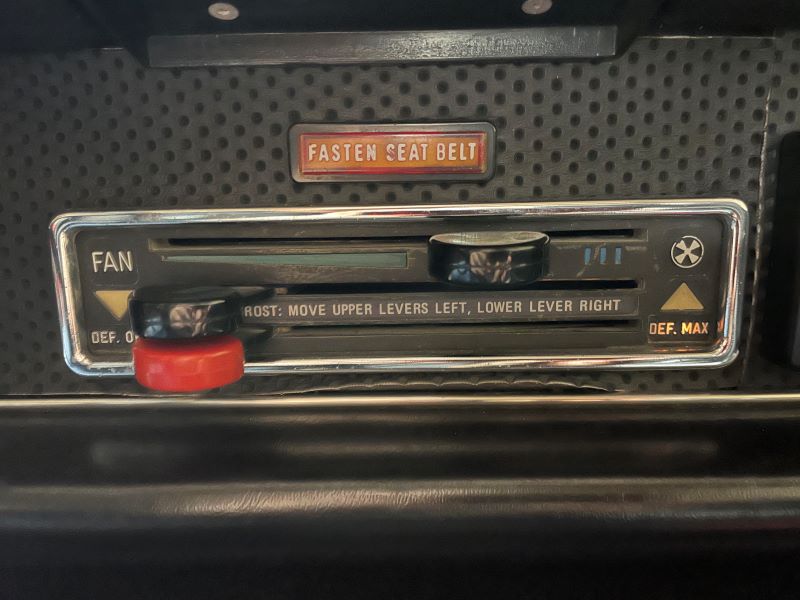

Ok, first pic is my 74. Only one light as far as I can tell. But maybe I'm not working the controls correctly. The second pic is the back of another '74 controller I have. It has spots for two lights. Oh, this reminds me that I need to glue down the dash vinyl below the controls. It's been buggy me for too long!

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Feb 28 2024, 11:06 AM
Post #7


Geezer914
***

Group: Members
Posts: 1,751
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States



I looked at mine (75 914) and there are 4!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Feb 28 2024, 01:31 PM
Post #8


Advanced Member
****

Group: Members
Posts: 4,644
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None




I'm an early car guy. (IMG:style_emoticons/default/smile.gif) ... 4 !! in '75-'76 cars !!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Feb 29 2024, 11:49 AM
Post #9


Village Idiot
*****

Group: Members
Posts: 8,459
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest



My 75' has 4 bulbs. 3 are on with the lights, 4th turns on when the fan is on.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Mar 2 2024, 08:52 AM
Post #10


Geezer914
***

Group: Members
Posts: 1,751
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States

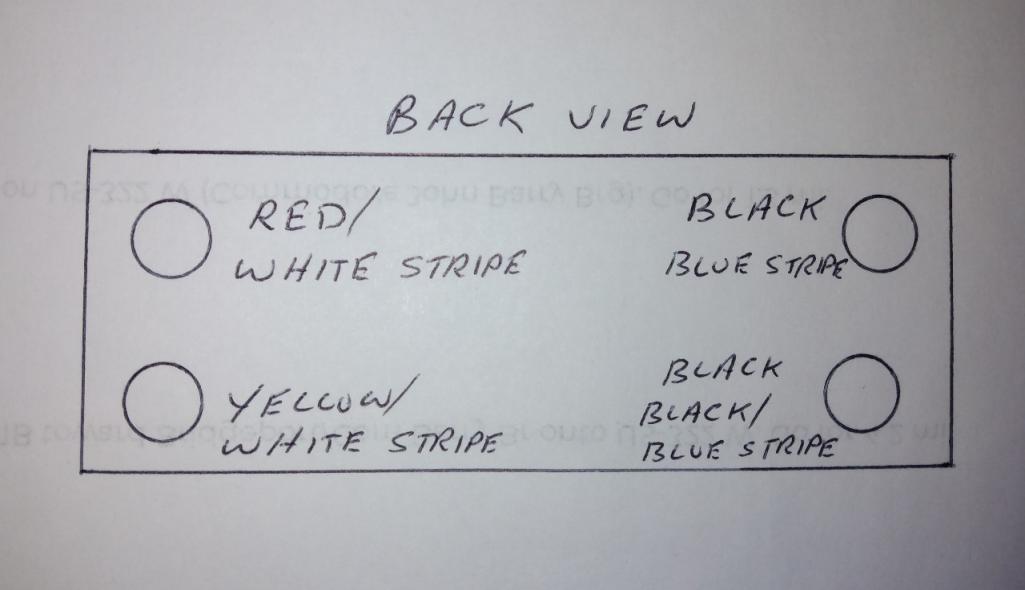

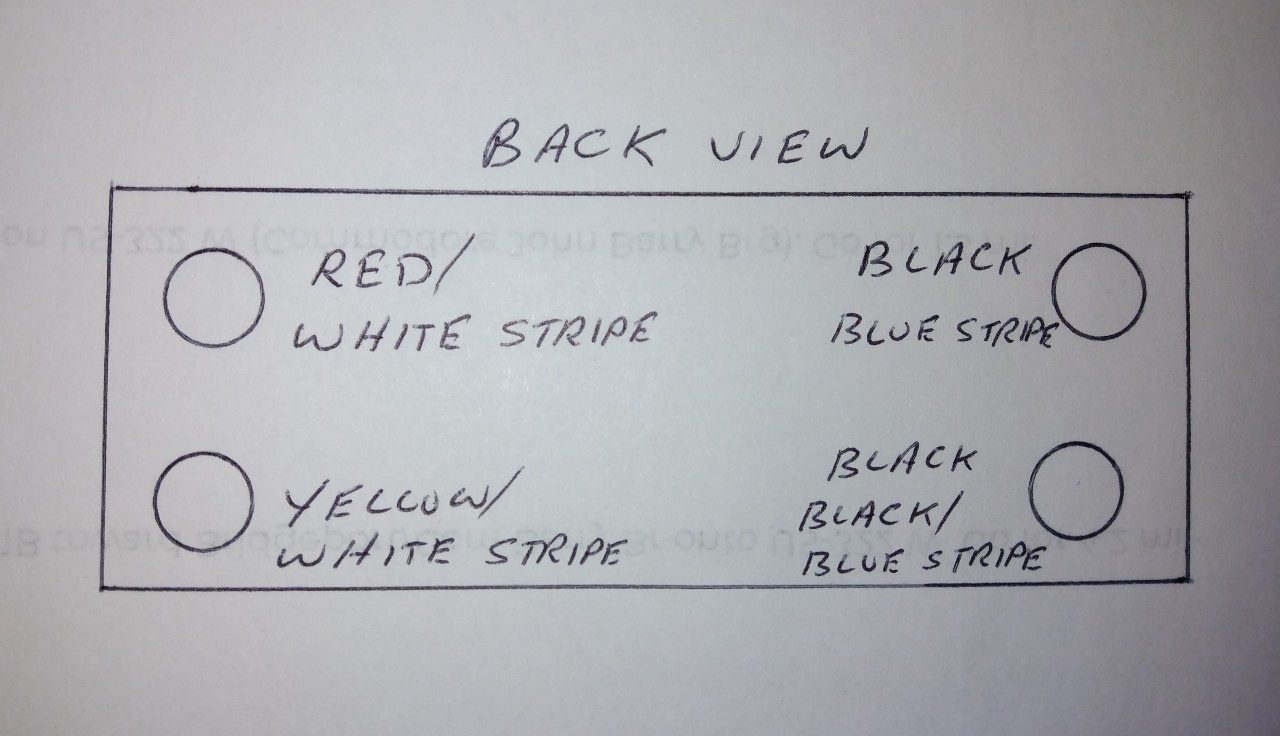

Wires were disconnected, looking for the correct orientation. Is my picture correct?Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Mar 2 2024, 02:30 PM
Post #11


914 Guru
*****

Group: Members
Posts: 5,845
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest



By the way. The 2 arrows don’t light up. They are glow in the dark plastic. I bought a bag of plastic glow in the dark stars at a top store and cut out new ones.
