> Rivets for ashtray and original finish of the metal
doug_b_928
post Feb 26 2024, 05:24 PM
Post #1


Senior Member
***

Group: Members
Posts: 714
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
Has anyone restored their ashtray? Disassembly looks to be very easy. The big problem is what appear to be very unique rivets.

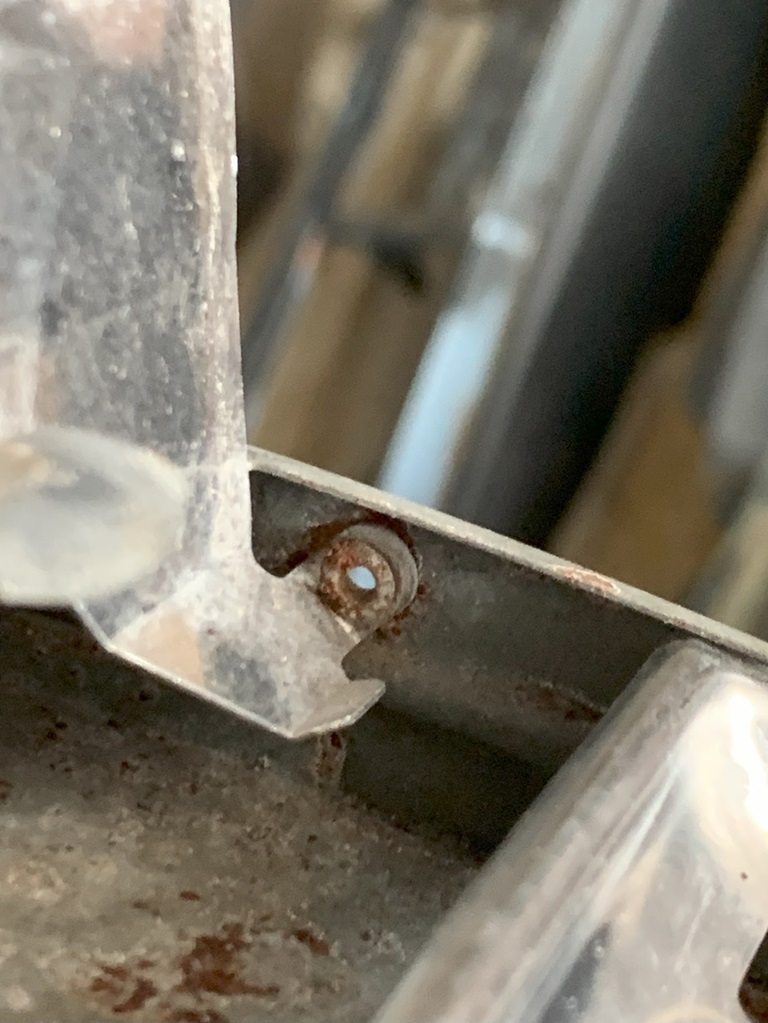

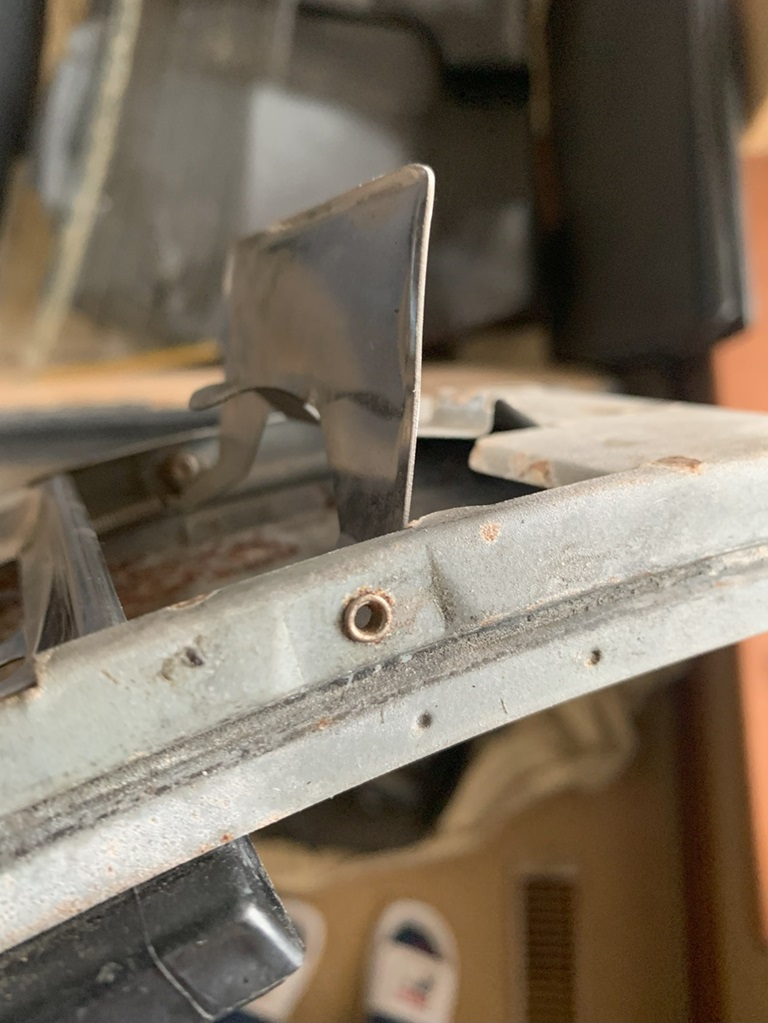

First, there are the rivets below that hold the rotating piece of chrome in place. They do not rotate but are precisely sized to allow the chrome piece to rotate smoothly on them without any slop or squeaking. They look like they might be brass.

Attached Image

Attached Image

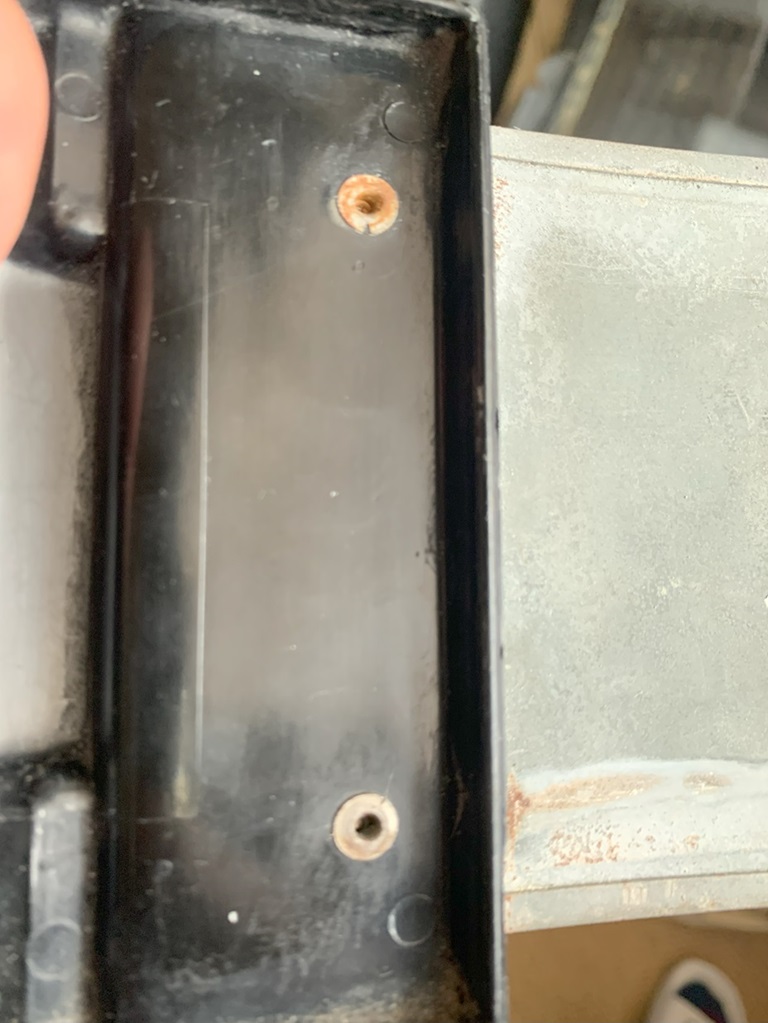

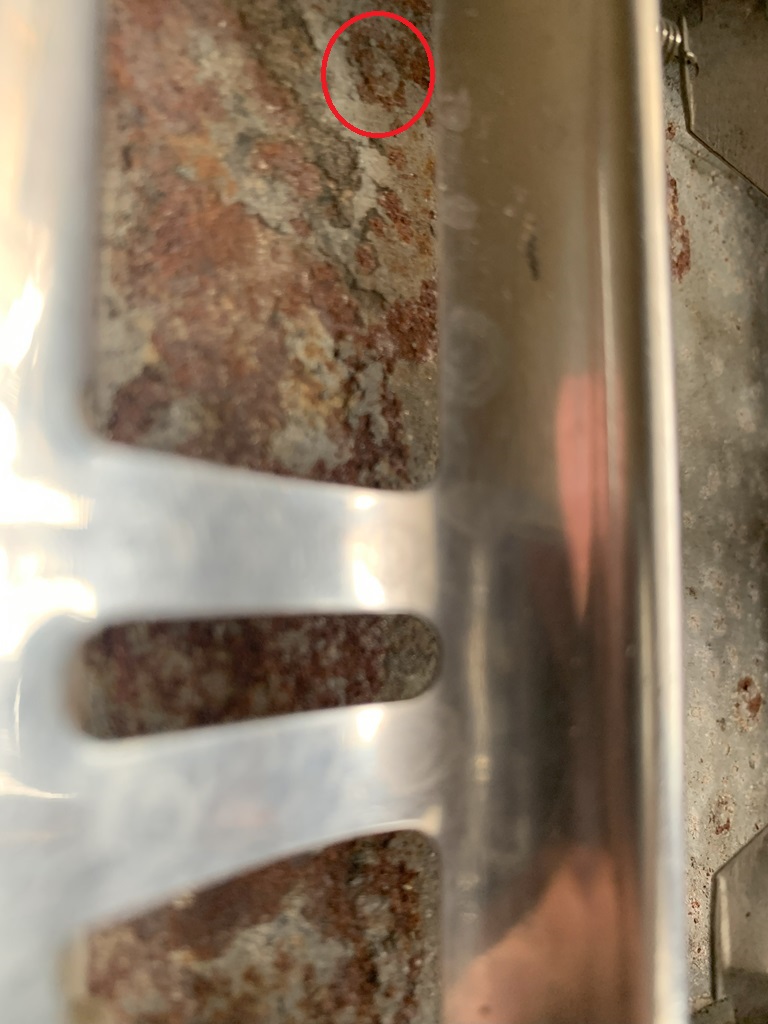

And these rivets hold the plastic (to which the front piece and other chrome piece attach with two screws) onto the steel. They look like pop rivets on the bottom but they are very flush on the top side of the ashtray (barely visible with the corrosion; also appear to be brass). I guess that they could be replicated by grinding down the back side of the pop rivet a bit...

Attached Image

Attached Image



Does anyone know where these rivets can be purchased?

Also, the metal of the ashtray almost looks to be just unfinished pot metal? Was there some kind of finish on it?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 26 2024, 05:47 PM
Post #2


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,897
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Why not just find a replacement excellent condition ashtray?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Feb 26 2024, 06:02 PM
Post #3


Senior Member
***

Group: Members
Posts: 714
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
QUOTE(JeffBowlsby @ Feb 26 2024, 05:47 PM) *

Why not just find a replacement excellent condition ashtray?


Do they exist?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Feb 28 2024, 07:32 AM
Post #4


914 Guru
*****

Group: Members
Posts: 7,002
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch

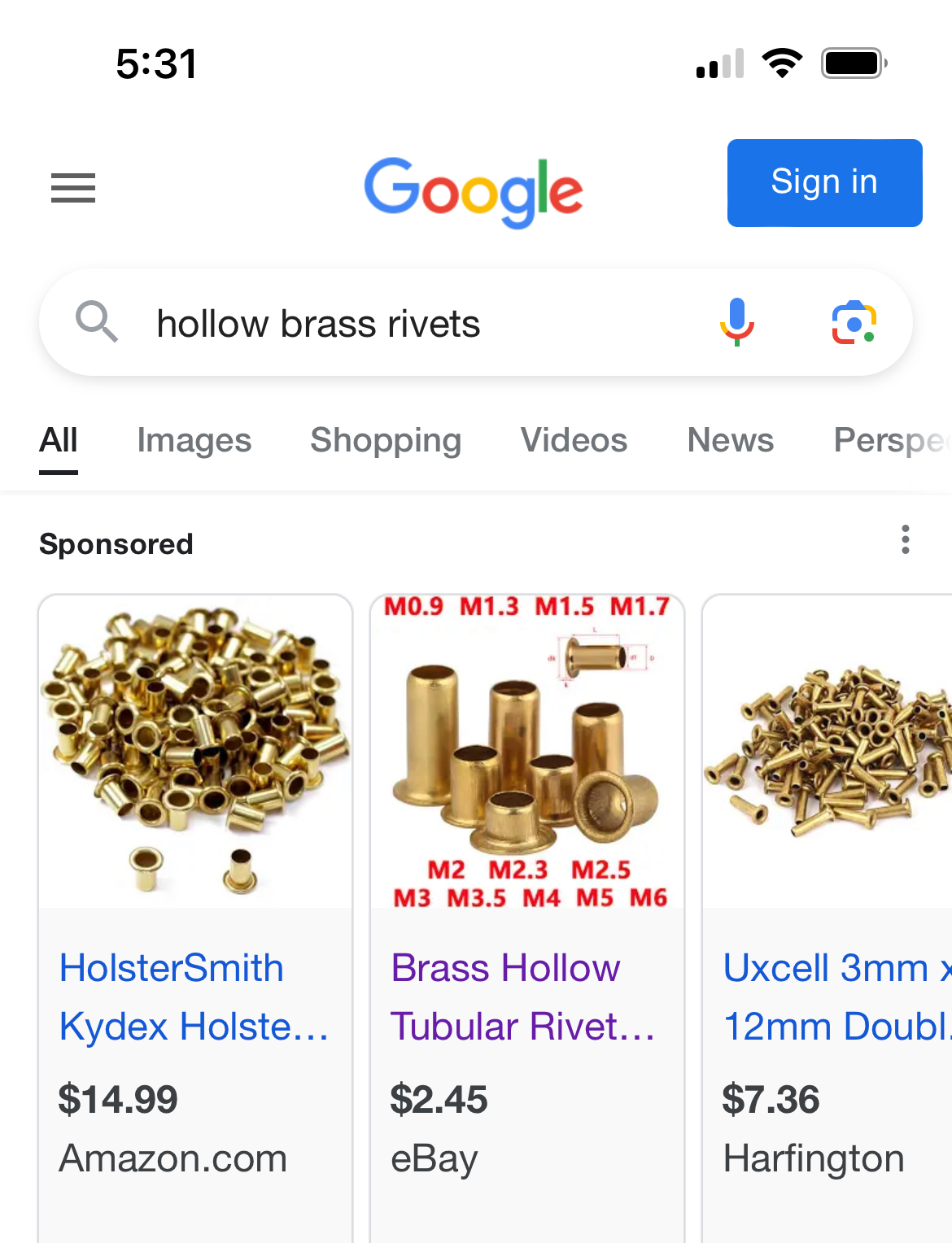

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Feb 28 2024, 08:10 AM
Post #5


Senior Member
***

Group: Members
Posts: 714
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
QUOTE(Superhawk996 @ Feb 28 2024, 07:32 AM) *

Attached Image


I have a set of those arriving later today (IMG:style_emoticons/default/smile.gif). I’m going to do some experimenting on the weekend to see how to set them.

Does anyone know what the finish was on the steel?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Feb 28 2024, 08:16 AM
Post #6


914 Guru
*****

Group: Members
Posts: 7,002
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Appears to me to just be zinc
User is online!Profile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 28 2024, 08:18 AM
Post #7


914 Wizard
**********

Group: Members
Posts: 11,945
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Real easy to find clean used ones
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Feb 28 2024, 09:07 AM
Post #8


Senior Member
***

Group: Members
Posts: 714
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
QUOTE(Superhawk996 @ Feb 28 2024, 08:16 AM) *

Appears to me to just be zinc


I guess that would make sense too as it wouldn't burn like paint. The chalky texture threw me off but maybe that's just the degradation of the zinc.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Feb 28 2024, 09:07 AM
Post #9


Senior Member
***

Group: Members
Posts: 714
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
QUOTE(brant @ Feb 28 2024, 08:18 AM) *

Real easy to find clean used ones


Good to know that I'll be able to get a good one if my restoration attempt fails.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MikeK
post Feb 28 2024, 10:11 AM
Post #10


Member
**

Group: Members
Posts: 132
Joined: 15-June 23
From: 80906
Member No.: 27,418
Region Association: Rocky Mountains
You'll need to find an NOS pack of Lucky Strikes to fill it with when your done.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
friethmiller
post Feb 28 2024, 11:06 AM
Post #11


Senior Member
***

Group: Members
Posts: 851
Joined: 10-February 19
From: Austin, TX
Member No.: 22,863
Region Association: Southwest Region

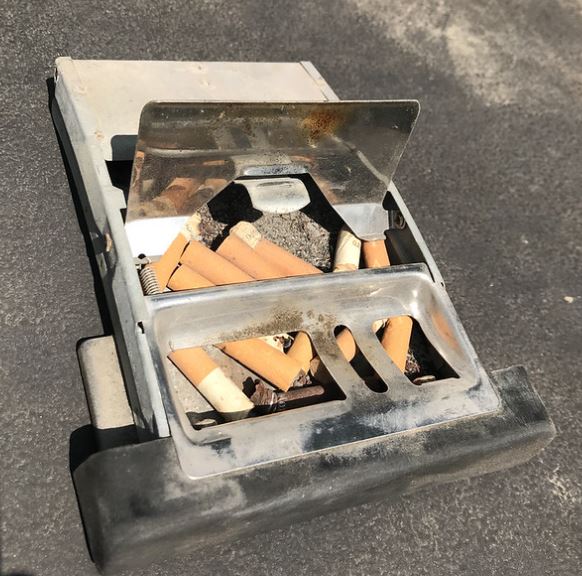

This is what I found when I opened mine during disassembly. Nice! At least I knew it was functional!

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Feb 28 2024, 01:44 PM
Post #12


Advanced Member
****

Group: Members
Posts: 4,739
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
QUOTE(MikeK @ Feb 28 2024, 11:11 AM) *

You'll need to find an NOS pack of Lucky Strikes to fill it with when your done.

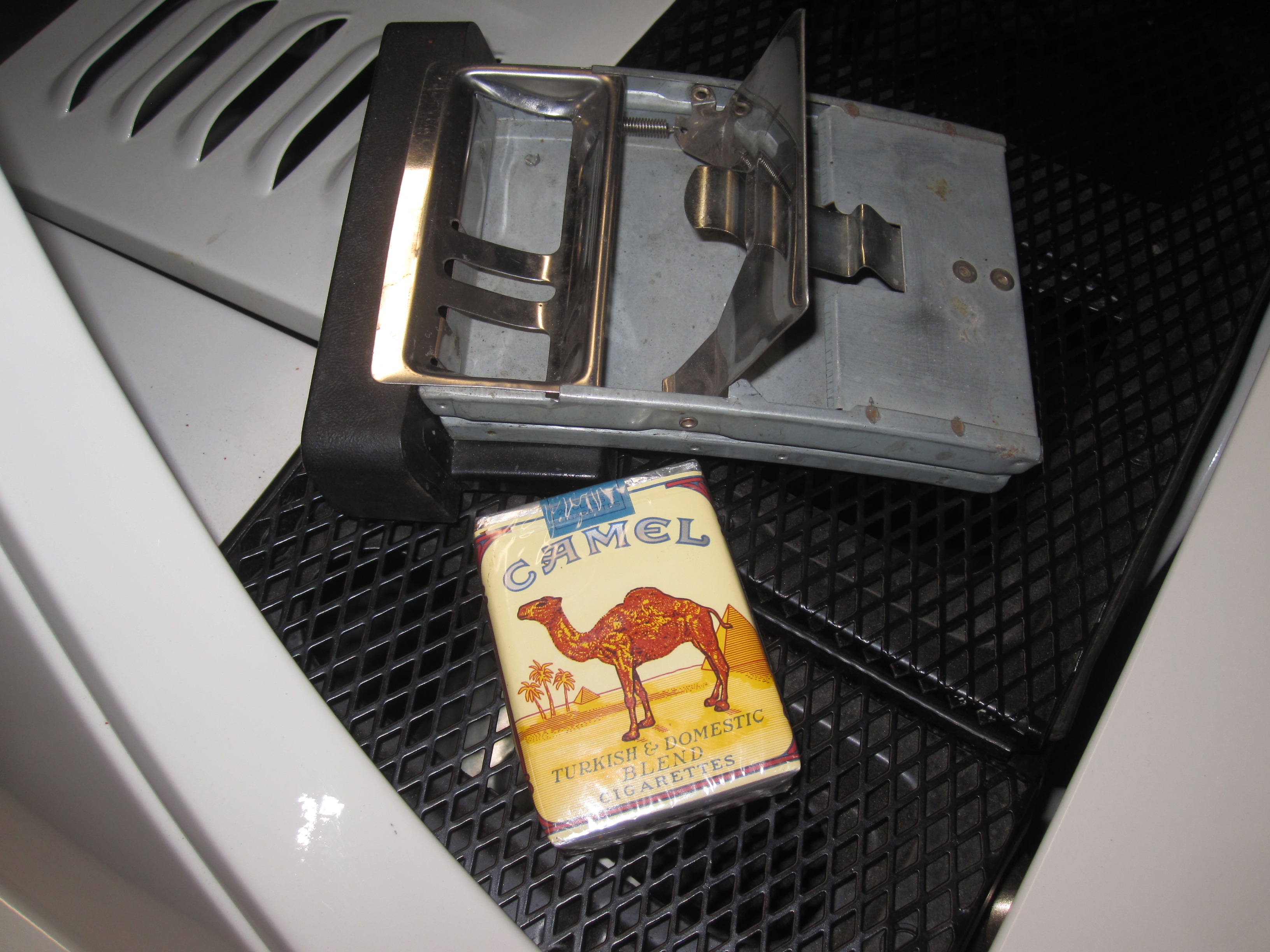

Why not Camels ?


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
wonkipop
post Feb 28 2024, 03:24 PM
Post #13


Advanced Member
****

Group: Members
Posts: 4,753
Joined: 6-May 20
From: north antarctica
Member No.: 24,231
Region Association: NineFourteenerVille

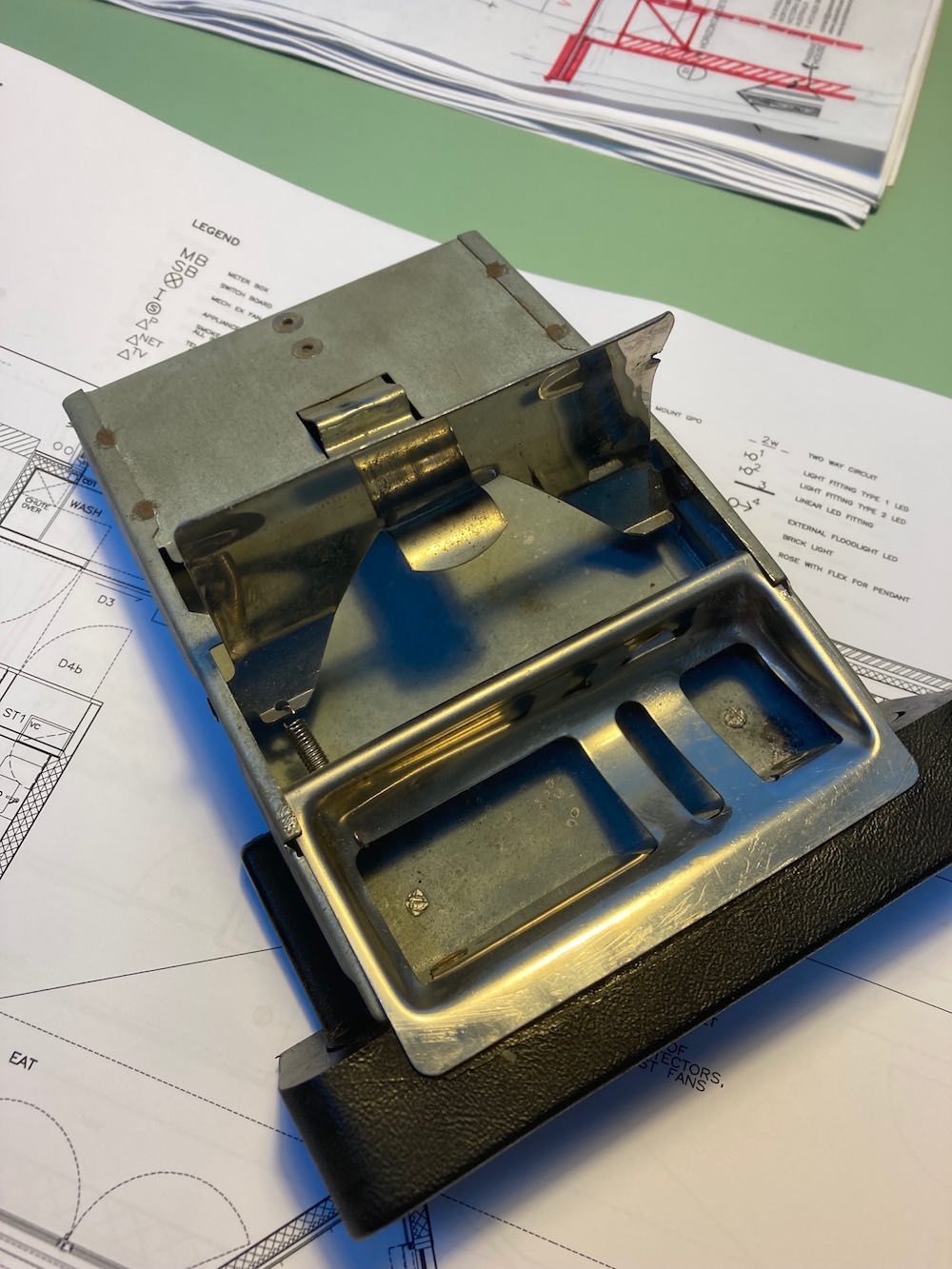

its just natural finish zinc in there.
not pot metal but made from zinc sheet.
or maybe a zinc coated steel sheet.
zinc is very soft so its probably zinc coated steel.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Mar 3 2024, 05:10 PM
Post #14


Senior Member
***

Group: Members
Posts: 714
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
I got the ashtray done this afternoon. Overall I'm pleased with the result. The steel didn't want to plate uniformly but it looks so much better than before. I used a vinegar/epsom salt plating bath to give it that dull look.

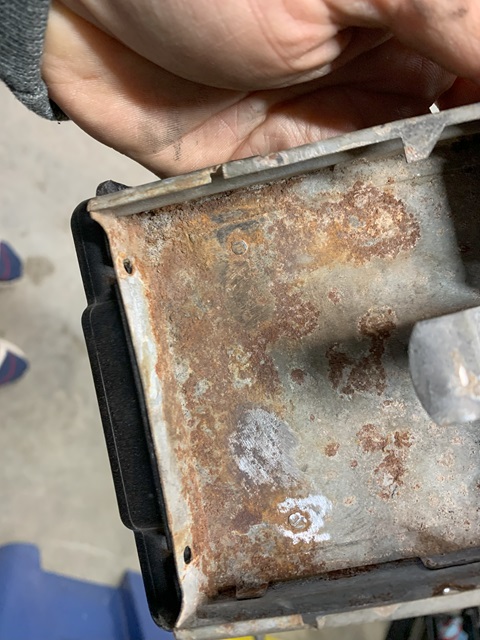

Before blasting:

Attached Image

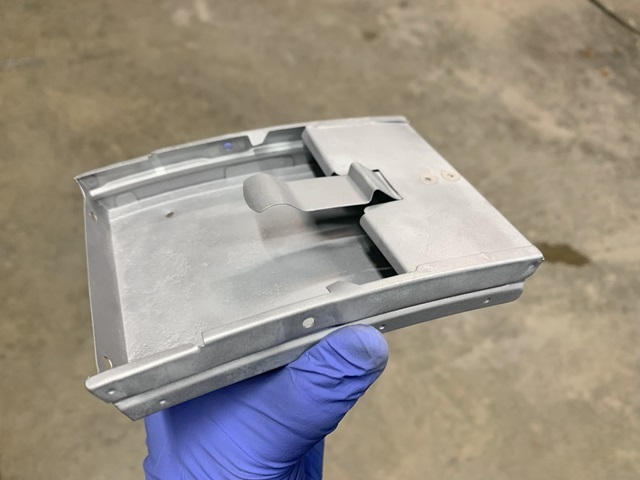

Post blasting:

Attached Image

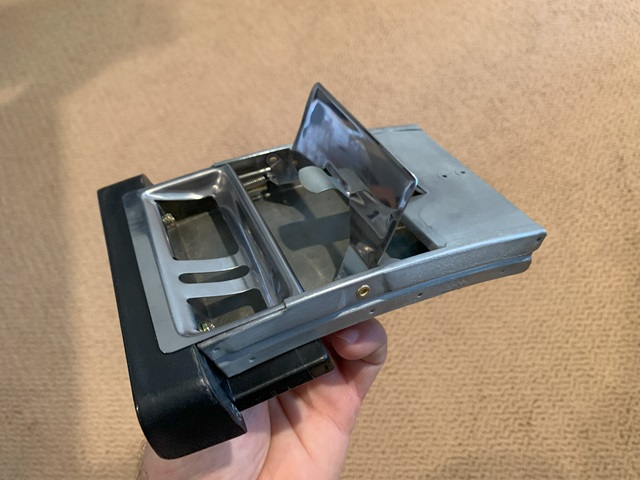

Finished and reassembled:

Attached Image

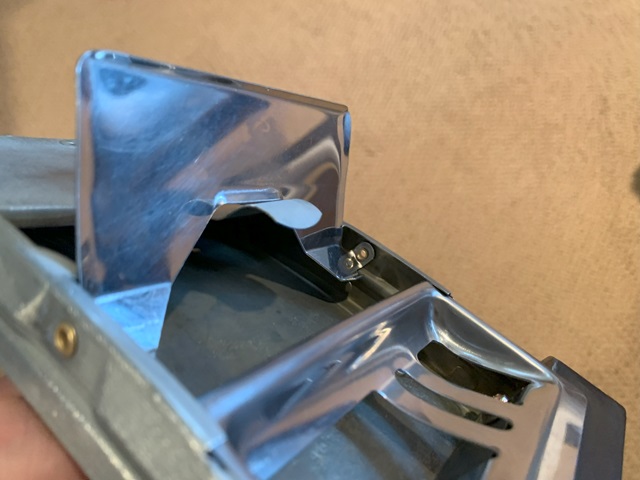

The through rivets look OE to me on the outside. They needed to be a bit longer but will do. I used M3 x 3 and I think M3 x 3.5 would work and x 4 might be better.

Inside view of rivets (it was hard to get a bucking bar in there)

Attached Image

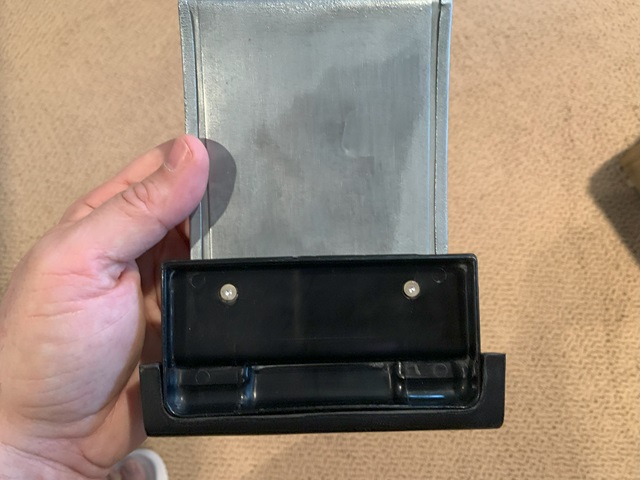

For the bottom rivets I used flush head 1/8". I drilled a bit out of the center to look more like the originals.

Attached Image

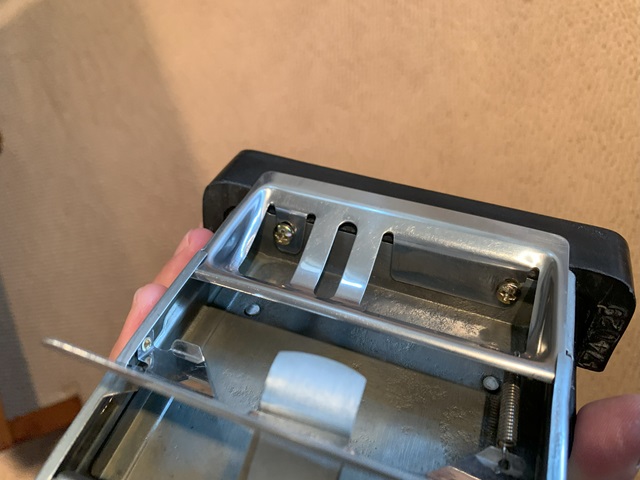

I polished the chrome and plated the two screws. The solid rivets give a similar look on the inside to the original. I'd have bucked them some more but the plastic on the bottom side was getting hairline cracks so I stopped.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Mar 3 2024, 07:02 PM
Post #15


914 Guru
*****

Group: Members
Posts: 7,002
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
(IMG:style_emoticons/default/smilie_pokal.gif) nice job cleaning that up.
