So dumb question of the day.

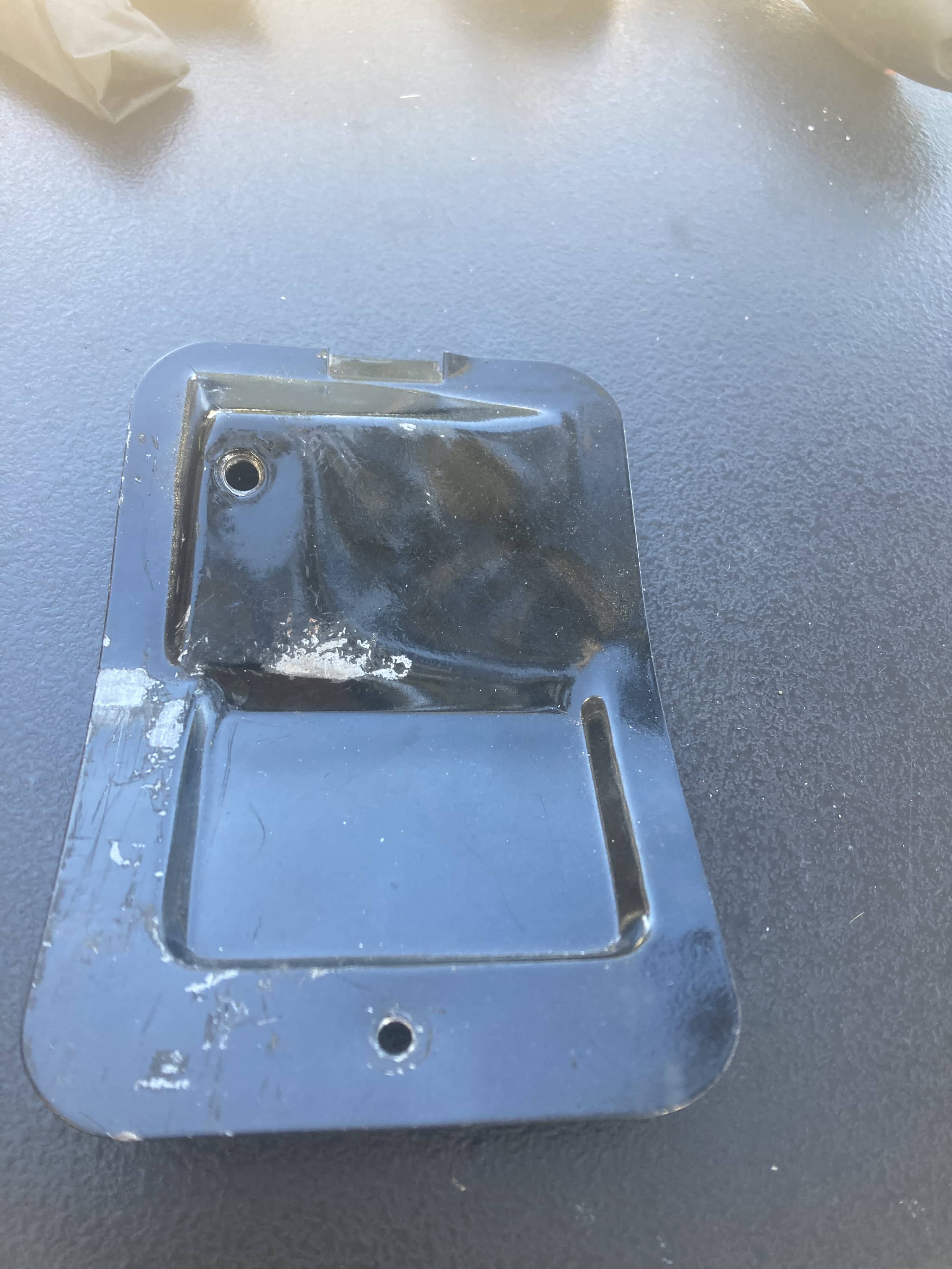

Trying to install the pedal board …….bolt that attaches to tunnel cover plate went MIA so trying to replicate it. Threaded hole (see pic) appears to be M6 but my hardware store only shows M-6 with a 1.00 pitch……that immediately binds ….. so before I start “reprogramming “ I’d like to know if I am on wrong track. Seems inane but trying to get it right. Th@nks  |
   |

|
| technicalninja |
Nov 18 2023, 03:44 PM
Post
#2
|
|
Advanced Member Group: Members Posts: 2,531 Joined: 31-January 23 From: Granbury Texas Member No.: 27,135 Region Association: Southwest Region
|
I've never seen a 6mm in anything but 1.0.
If you don't have a set yet get some thread chasers https://www.amazon.com/Thread-Chaser-Repair...vD_BwE&th=1 These just clean and "reshape" the threads. They DO NOT cut new threads as a real tap does. I use my chasers more than my real taps and dies... Way common for some PO to have forced a 1/4NC into the 6X1 and mess up the original threads. I've seen 7s and 8s in two different thread pitches 1.0 and 1.25 I've seen 5s in two different pitches 0.7 and 0.8 (this is real common) I've never seen a 6 in anything but 1.0 but other pitches could exist. Hope this helps |
 |
|
| NARP74 |
Nov 18 2023, 04:34 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,370 Joined: 29-July 20 From: Colorado, USA, Earth Member No.: 24,549 Region Association: Rocky Mountains |
If there is not a nut fastened to the back, I don't remember, it will just need a little thread fix. It's just sheet metal, wont hold much of a thread and it easy to fix.
|
|
|
|
| sixaddict |
Nov 18 2023, 06:01 PM
Post
#4
|
|
Senior Member Group: Members Posts: 926 Joined: 22-January 09 From: Panama City Beach, FL Member No.: 9,961 Region Association: South East States
|
Yep …nut welded to back side.
Guess thread chaser logical answer. Thanks QUOTE(NARP74 @ Nov 18 2023, 02:34 PM)  If there is not a nut fastened to the back, I don't remember, it will just need a little thread fix. It's just sheet metal, wont hold much of a thread and it easy to fix. |
|
|
|
| Al Meredith |
Nov 19 2023, 04:37 PM
Post
#5
|
|
Senior Member Group: Members Posts: 973 Joined: 4-November 04 From: Atlanta, ga Member No.: 3,061 |
Terry I have several plates like you are look for. See me later in the week when you stop by Al
|
|
|
|
|
