> ignition switch, no start
doobie123
post Aug 5 2022, 04:59 PM
Post #1


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



hi all,
just received a new ignition switch from auto atlanta, those guys are great!

installed it but still no start. the car will start by jumping the battery to the solenoid with the key in the run position but still wont start with just the key. i should say that i have not put the rest of the steering wheel/ directional switch back together in case it did not work.
could this effect it?
also it looks like someone before me took the large yellow and yellow/red stripe wire under the passenger seat and hooked them together to bypass the seat belt switch. in addition that relay under the seat and the wires going to it are in bad shape and the mount for the relay has rusted.
i'm looking for any suggestions that i could try so please, any help would be great.
thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nditiz1
post Aug 5 2022, 05:20 PM
Post #2


Senior Member
***

Group: Members
Posts: 950
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



The bypass is fine. Steering wheel off is fine.

Check continuity from the wire on the starter to your wire on you ignition switch. You can also test power goes to it with a volt meter and an extra person.

Definitely install a Ford relay. It costs maybe $50 to do the whole thing. Relay, wires, connectors and that's it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 5 2022, 05:31 PM
Post #3


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



QUOTE(nditiz1 @ Aug 5 2022, 06:20 PM) *

The bypass is fine. Steering wheel off is fine.

Check continuity from the wire on the starter to your wire on you ignition switch. You can also test power goes to it with a volt meter and an extra person.

Definitely install a Ford relay. It costs maybe $50 to do the whole thing. Relay, wires, connectors and that's it.

forgive my ignorance but do you know what part number ford or what i can ask for at the parts store or maybe what to search for on line?
i did find a replacement porsche relay. $178.00!
i'd really rather spend $50.00
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 5 2022, 05:34 PM
Post #4


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



something i didn't say was that there are 4 wiers coming off the battery hot side which makes me wonder if the previous owner, (now departed) had a "magic button" by pass set up. any reason why there would be that many wiers coming off the terminal? hardly seems "factory"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Aug 5 2022, 07:28 PM
Post #5


Advanced Member
****

Group: Members
Posts: 4,333
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



QUOTE(doobie123 @ Aug 6 2022, 10:59 AM) *

hi all,
just received a new ignition switch from auto atlanta, those guys are great!

installed it but still no start. the car will start by jumping the battery to the solenoid with the key in the run position but still wont start with just the key. i should say that i have not put the rest of the steering wheel/ directional switch back together in case it did not work.
could this effect it?
also it looks like someone before me took the large yellow and yellow/red stripe wire under the passenger seat and hooked them together to bypass the seat belt switch. in addition that relay under the seat and the wires going to it are in bad shape and the mount for the relay has rusted.
i'm looking for any suggestions that i could try so please, any help would be great.
thanks

So your ignition switch sounds fine,just make sure the rear lower plug is fully on to the column terminals ,mine wasn't and I lost most functions .
Questions are ;
Are all your battery red terminals nice and new in good connection,
is the earth cable from battery to body good,
whats the wiring on the starter like,
battery good ? ,should be atleast 12.7V sitting,
is the connection for seatbelt bypass a good one,
did it run previously by bumping the starter,
have you checked all body to ground connections by relayboard ,
others on here will ask further.
All these things in good condition should solve your issues if sorted go on to Markhenrys guide to fit Ford solenoid as it works a treat and cheap ...did mine for pocket change.

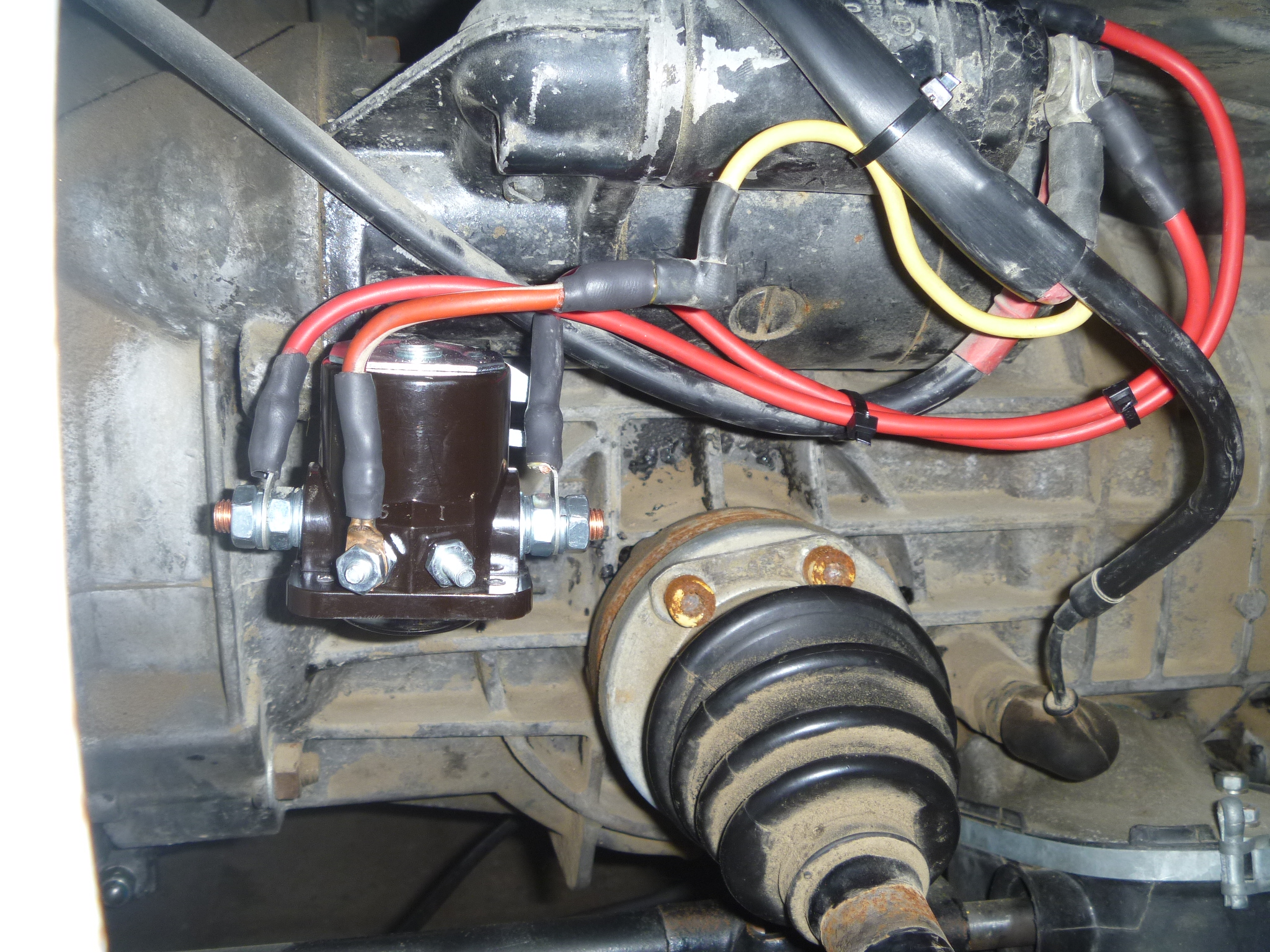

Attached Image.




User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nditiz1
post Aug 5 2022, 07:33 PM
Post #6


Senior Member
***

Group: Members
Posts: 950
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



Any ford relay will work, 1970 ford galaxy, usually run about $20-30.

As for the "magic button start" I'm not sure. I had one in my last 914 because the ign switch was broken. He already has the relay which was good. That was the first thing I removed. I think even my latest one had it too lol. Anyway, post some pics of what you have hooked into the switch. I don't know what type of injection you have, but I do recall at least 2 additional wires going to the battery for relay board and clock maybe. The continuity test will help you determine the flow to your switch. The wires goes from your ignition switch start terminal to the relay board and then from there to the starter selinoid. If you can test at the starter to your switch then at least you know that path is good.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 6 2022, 01:11 PM
Post #7


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region

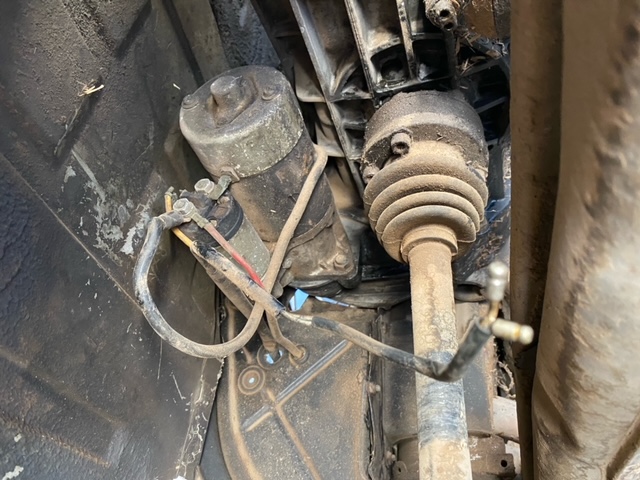

ok, here is an update on the ignition.

Attached Image
what i found was the large large black wire goes to the battery hot, the yellow goes to the relay under the passenger seat, the red wire goes to the hot side of the battery, and in the bottom of the pic, you can see 2 wires with a sort of plug on them. one grey, one grey with a red stripe. they both go to the ignition switch but both were disconnected. when i jump the grey and red wire to the solenoid, presto! the key works. no change with the grey wire. so is that it
, problem solved? connect the grey and red to the solenoid and happy days! but, why were they disconnected? what is the grey wire for and whats with the plug ends? was the solenoid a aftermarket one without the correct plug?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nditiz1
post Aug 6 2022, 01:22 PM
Post #8


Senior Member
***

Group: Members
Posts: 950
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



I'm not seeing your grey wires with the plug. If you are talking about the ones in the forefront of the pic with the bullet connectors those are the reverse lights and go into the trans right behind the axle. I believe those are grey/grey red and are solely for the backup lights. Maybe when you were under there you joceled the yellow wire and it has a better but temporary connection and or the one under the seat.

Also the red wire in your pic should be going to the alternator. The big black wire should be going to the battery. The starter acts as a junction point for your alternator to charge the battery.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Aug 6 2022, 01:27 PM
Post #9


914 Guru
*****

Group: Members
Posts: 7,217
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



bosch makes their wr1 hot start relay to install if you have voltage drop to the starter. If the trans ground strap is making good connection and the battery is charged and the yellow wire to the solenoid if firmly connected and lights a test light when the key is moved to the start connection, you need the bosch relay kit OR a new starter. We have begun to sell the heavier duty sr68 x in place of the old sr17x
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 6 2022, 01:58 PM
Post #10


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



yes the 2 wires with the bullet connectors are what i'm talking about. so the red wire could be going to the alt before going to the battery? that would still give me continuity at the battery right?
as for moving the yellow wire, i don't think i did but i'll check it.
if the wire is tight and intact, why would the reverse light wire make the key functional? could it be a neutral safety thing?
i'll check the yellow wire, the ground strap and see if there is a drop but if the starter is bad, would i still be able to start the car using a jump switch\wire between the solenoid and the battery?
also i have cleaned the battery terminals and ground strap and the battery is new.
thanks for the help with this guys. as you can tell, i'm pretty green when it comes to this stuff.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nditiz1
post Aug 6 2022, 03:05 PM
Post #11


Senior Member
***

Group: Members
Posts: 950
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



The grey red making it work is just a coincidence. If you leave it in the same place as your pic the key will most likely work.

As for the red wire it has continuity to the battery because it is connected to the battery via the starter, both on the same post.

Definitely check the yellow connector is firm as well as the bypass under the pass seat. If you have a helper you can test power to the yellow wire when the ignition switch is momentarily moved to the start position. If your helper holds it there and you have leads on the yellow wire while disconnected you should get 12v.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 6 2022, 04:06 PM
Post #12


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



ok, thanks i'll give it a try and keep ya posted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 6 2022, 04:17 PM
Post #13


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



just another question.
i thought there was a wire from the ignition switch to the starter. is that incorrect? is there a resource where i can find a simple diagram of the ignition circuit?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nditiz1
post Aug 6 2022, 08:04 PM
Post #14


Senior Member
***

Group: Members
Posts: 950
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



That wire is the one that goes under your seat. It travels from the switch to the seat relay, which Is now bypassed, then to the relay board via a 14 pin connector, then out of the relay board via a 12 pin connector to the starter solenoid.

Search on here or Google. I think it might be in the how to section as well. It's for a 74, but pretty much covers them all. You'll want the relay board diagram as well so you can map it through that as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 7 2022, 12:46 PM
Post #15


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



ok great, thanks

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 7 2022, 05:03 PM
Post #16


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



ok guys here is a bit of an up date. i cleaned the trans ground and all the wires to the starter. the yellow has continuity from the starter to the under seat splice with the yellow/red stripe wire and the connection between the 2 are good.
at the starter, i have 14 V and with a load, 13.4 V.
after doing this i decided i'd try the two wires that should be going to the trans for... reverse lights? i jumped the grey/red stripe to the terminal on the solenoid which has the yellow wire attached and the key works. i removed it and no start, replaced it and the key works. these wires do go to the trans because i located the plug but when they are plugged in nothing changes.
the grey/red stripe wire has continuity with the pole on the ignition switch marked "S" the grey with a pole marked "P".
so what is the deal here? what else can i check or do? should i just run a new wire from the solenoid to the ignition switch pole marked "S"? it seems like it would fix the issue but what is the problem causing this?
thanks again for your help. tomorrow i'm gonna order the ignition circuit pamphlet from auto atlanta but i'd sure like to find a schematic before that comes in the mil. its driving me crazy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 7 2022, 05:22 PM
Post #17


Advanced Member
****

Group: Members
Posts: 4,023
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



Something is mis-wired in your car.

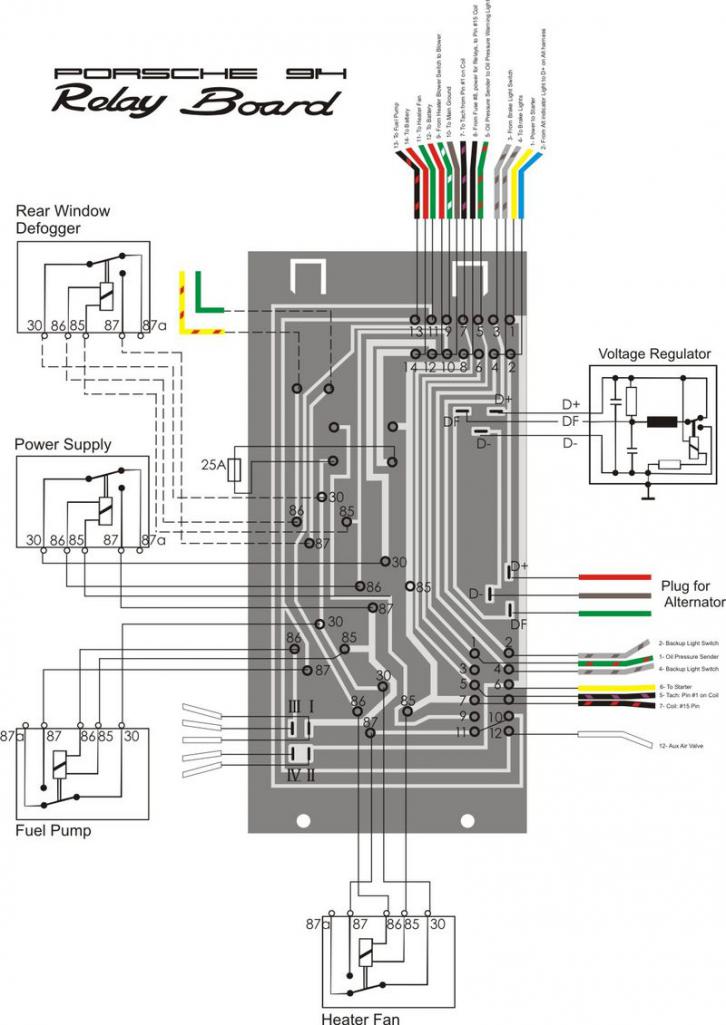

I suspect that someone may have mis-pinned the connector that goes from the relay board to the starter / trans reverse lights.

When you turn the key to start position, you should be getting 12+ at the yellow wire. If that is not happening when you turn the key to start - something is mis-wired assuming that you have continuity in the yellow wire as you state.

Verify that both connectors (top coming in from cabin) and the right bottom (going out to engine / starter) are pinned correctly.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 7 2022, 05:24 PM
Post #18


Advanced Member
****

Group: Members
Posts: 4,023
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(doobie123 @ Aug 7 2022, 07:03 PM) *

should i just run a new wire from the solenoid to the ignition switch pole marked "S"? it seems like it would fix the issue but what is the problem causing this?



No -- do not start cutting things and/or running new wires.

Trouble shoot what you have to the underlying issues and repair.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doobie123
post Aug 18 2022, 06:48 PM
Post #19


Newbie
*

Group: Members
Posts: 27
Joined: 8-July 22
From: tucson
Member No.: 26,683
Region Association: Southwest Region



ok hope all you guys are still out there and are still following this thread. was a bit busy and off the 914 but back on with a few questions.
so after talking with george at auto atlanta, its amazing to me that he finds time to sleep he is always available with help and even saved me some $.
anyway after talking with him decided to put a hot kit starter on my car to see if it would solve the problem. when it came i reviewed the instructions and i decided to see if i had continuity in the yellow wire coming out of the starter. i was able to establish continuity with the yelloy wire in the relay board bottom right plug, #6. i have continuity with the yellow and red striped wire under the passenger seat to the ignition. my question is should i have continuity with the yellow wire from the solenoid to the under seat relay yellow or is that only when i turn the key? also, just to confirm the blue wire from the hot start harness connects with the yellow wire that now goes to the solenoid black wire goes to the terminal the yellow wire went to and red to battery terminal.
oh yes one more thing. there is a second spade terminal on the solenoid that is bare does not have anything connected is that the right solenoid?
i'm a bit confused at this point as when i go back and reread my prior posts, i seem to have had continuity from the solenoid to the under seat relay.
thanks ya'll for any help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Aug 18 2022, 07:07 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,075
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States



I would start with just installing the hot start kit. You need it regardless of any other issues. You should be able to wire it without issue. yes, one pole will be empty.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
