> Targa pad removal…, Big thanks to 914Toy aka Keith Hully ! It’s done….
jim_hoyland
post May 16 2022, 02:12 PM
Post #1


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California

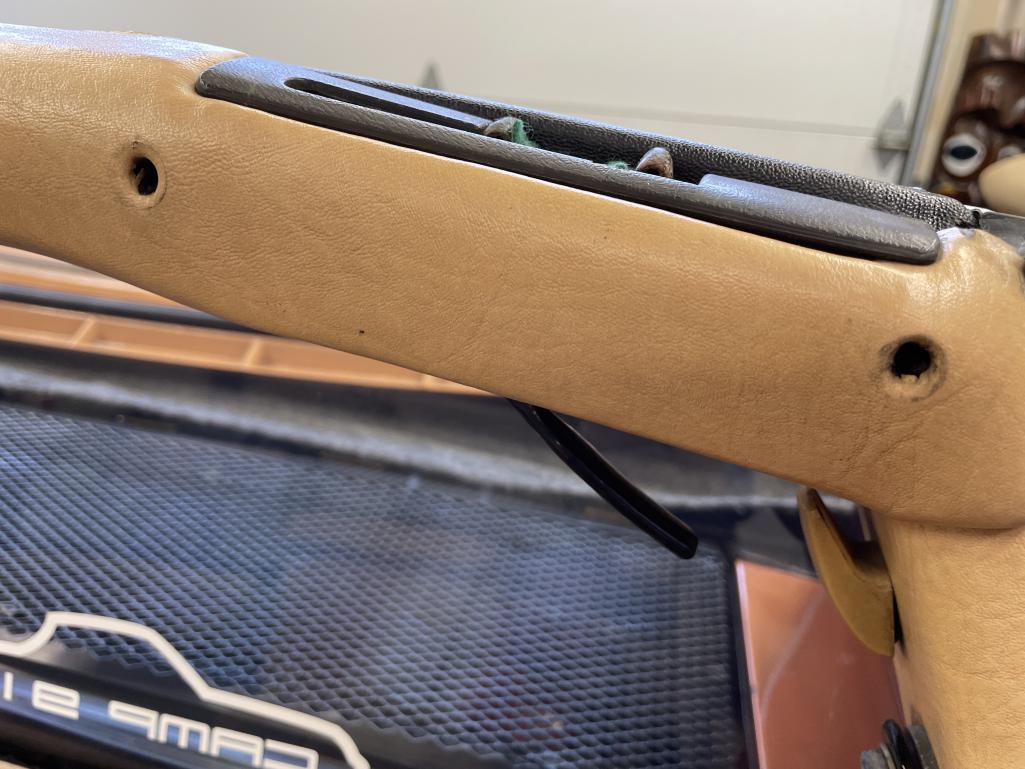

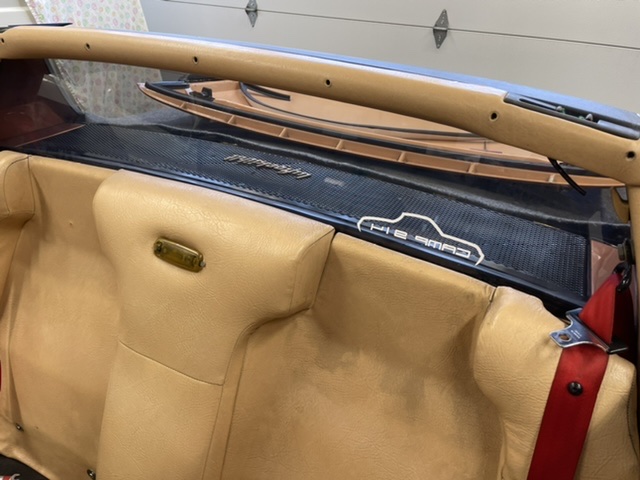

Got a pair of new latches for the targa top. Seven horizontal screws and 5 vertical from underneath. Screw heads are buried into the pad. Any tricks here ?I found maybe three of the screws.


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post May 16 2022, 02:34 PM
Post #2


Village Idiot
*****

Group: Members
Posts: 8,668
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
On the pad I removed (and tossed), the foam inside the little holes had been shredded up enough to block the screw heads. I used a little pick to sort of clean out each hole. The screw heads don't always match straight to the hole in the pad either. It's frustrating and slow. You should be able to see each screw head....should.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post May 16 2022, 03:06 PM
Post #3


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
QUOTE(Root_Werks @ May 16 2022, 01:34 PM) *

On the pad I removed (and tossed), the foam inside the little holes had been shredded up enough to block the screw heads. I used a little pick to sort of clean out each hole. The screw heads don't always match straight to the hole in the pad either. It's frustrating and slow. You should be able to see each screw head....should.

Good suggestion ! Do the panel covering the rear pillars have to come off ?
I can see one screw hear may have a mated head, that is the screwdriver can bite in…
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post May 16 2022, 03:50 PM
Post #4


Village Idiot
*****

Group: Members
Posts: 8,668
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
I would take the two side panels off, makes things easier.

Should be one small philips screw at the "coat" hangar and the seatbelt bolt.

I installed a new 914 Rubber rear pad and it was so nice not having foam clogging up the holes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post May 16 2022, 03:53 PM
Post #5


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
QUOTE(Root_Werks @ May 16 2022, 02:50 PM) *

I would take the two side panels off, makes things easier.

Should be one small philips screw at the "coat" hangar and the seatbelt bolt.

I installed a new 914 Rubber rear pad and it was so nice not having foam clogging up the holes.

I’m inclined to replace it; just gotta dye it tan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post May 16 2022, 06:57 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,054
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
The AA roll bar pad fits almost perfectly. And how are you going to dye a black vinyl (rubber) pad tan?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Front yard mechanic
post May 16 2022, 07:13 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,321
Joined: 23-July 15
From: New Mexico
Member No.: 18,984
Region Association: None
Use a long number one screwdriver . The length helps center it in the hole in the pad
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post May 16 2022, 07:17 PM
Post #8


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,700
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Jim, the correct size Phillips is #1 on the list. 2nd, use an ice pick or sharp awl to locate the center of the screw. Often they are not installed straight or do not line up with the center of the hole in the pad. OEM, George's or Mark's. Take your time feeling around. after a couple you will get the hang. Those screws that are vertical are a PITA when the rear glass is in. Not enough room between the handle and glass for your fingers around the handle of the screwdriver when the glass is installed so you may need to grip the handle with a pair of pliers on final tightening or when breaking them loose. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post May 16 2022, 07:39 PM
Post #9


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
QUOTE(windforfun @ May 16 2022, 05:57 PM) *

The AA roll bar pad fits almost perfectly. And how are you going to dye a black vinyl (rubber) pad tan?

We have a local upholstery man who paints the tan over the black.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post May 16 2022, 07:41 PM
Post #10


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Got the #1 long shaft screwdriver. Had to stop after getting only two screws
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post May 16 2022, 07:53 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,054
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
QUOTE(jim_hoyland @ May 16 2022, 06:41 PM) *

Got the #1 long shaft screwdriver. Had to stop after getting only two screws


I think you need to get a wee bit more aggressive there my friend. Pull on the old fucker & yank him out. Be careful not to damage the side pads.

(IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post May 17 2022, 04:11 PM
Post #12


Advanced Member
****

Group: Members
Posts: 2,054
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
BTW, some of the screws may already be missing. My "stock" roll bar pad was missing one screw that I obviously, or not so obviously, could't remove.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post May 17 2022, 06:00 PM
Post #13


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
This project is on hold for awhile. Will restart when I have more time and get some help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post May 18 2022, 01:23 PM
Post #14


Advanced Member
****

Group: Members
Posts: 2,082
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region
QUOTE(Root_Werks @ May 16 2022, 12:34 PM) *

The screw heads don't always match straight to the hole in the pad either.


Thats the kicker, just finding the damn heads of the screws.

One of the pads i removed someone had put a 2nd screw in the hole over the first. so I pulled the screw out of the hole thinking i was good to go, not knowing there was another one hiding back there somewhere still holding the pad on. (IMG:style_emoticons/default/headbang.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bob164
post May 18 2022, 06:33 PM
Post #15


Member
**

Group: Members
Posts: 98
Joined: 10-February 18
From: SoCal
Member No.: 21,877
Region Association: Southern California
Jim,
When you get back to it, give me a call and I will come over to help.
Bob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post May 18 2022, 06:51 PM
Post #16


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
QUOTE(bob164 @ May 18 2022, 05:33 PM) *

Jim,
When you get back to it, give me a call and I will come over to help.
Bob


Thanks Bob. Will do
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post May 18 2022, 11:16 PM
Post #17


914 Idiot
***************

Group: Members
Posts: 15,161
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
I think I recall that the two little tiny screws in the latch area also held the d**n pad on as well.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 19 2022, 08:38 AM
Post #18


914-6 GT in waiting
***************

Group: Members
Posts: 19,878
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I hate those tiny screws. Made worse after 50 years.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post May 19 2022, 10:12 AM
Post #19


Advanced Member
****

Group: Members
Posts: 2,054
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
QUOTE(Dave_Darling @ May 18 2022, 10:16 PM) *

I think I recall that the two little tiny screws in the latch area also held the d**n pad on as well.

--DD


The latch covers only mount to the pad & these screws may be omitted IMO if the latch covers press fit nice & tight. Such is the case with the AA pad.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Aug 16 2022, 04:18 PM
Post #20


Get that VIN ?
*****

Group: Members
Posts: 9,698
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Restarting the targa pad removal. Gonna pull the pillar covers, try the #1 Phillips, and it that fails I’ll try drilling the screw heads off ?
Any suggestions on drill bits ?
