> Dyno day, Now with figures!!!
emerygt350
post Nov 20 2021, 02:32 PM
Post #1


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States

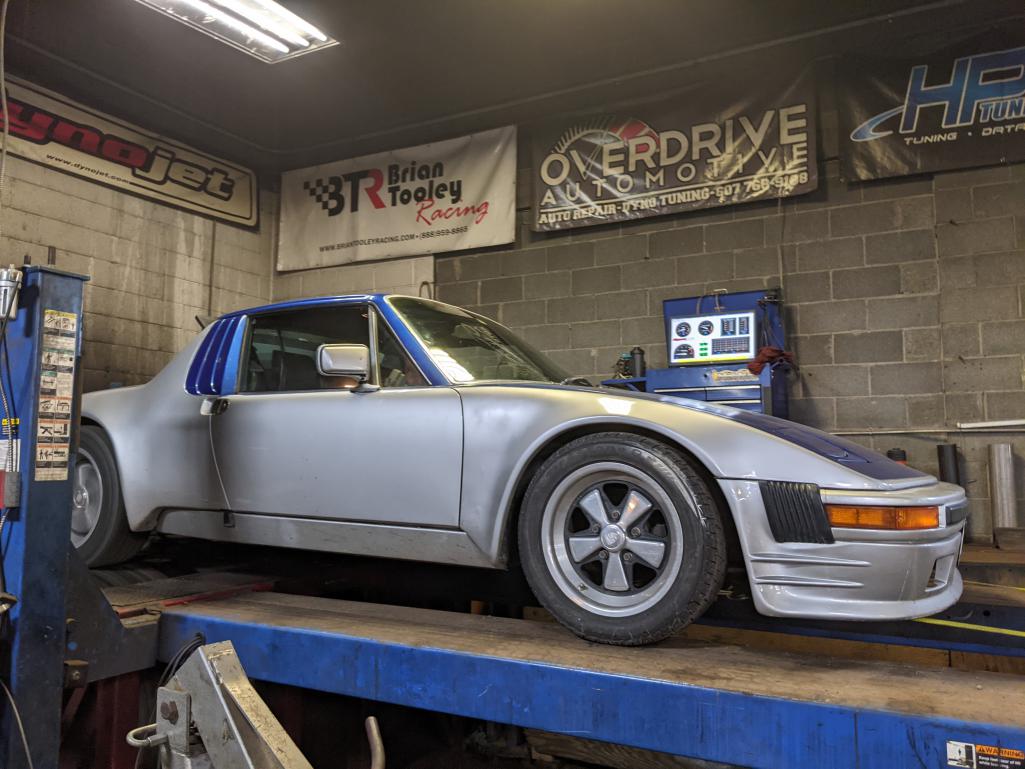

Just got back from the Dyno. We were able to tune the mps reasonably well. Still have a little leanness at wot and lower rpms and richness at wot at high rpms but overall pretty smooth. Waiting to get the figures from the shop. If I remember right it was 77 horsepower and 105 lbs of torque at the wheels. I am running big 225/50r16s so I suspect I would pick up some more with lighter stock rims and tires....

I will post the graphs as soon as I get them.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Nov 20 2021, 03:18 PM
Post #2


914 Guru
*****

Group: Members
Posts: 5,363
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region
QUOTE(emerygt350 @ Nov 20 2021, 01:32 PM) *

Just got back from the Dyno. We were able to tune the mps reasonably well. Still have a little leanness at wot and lower rpms and richness at wot at high rpms but overall pretty smooth. Waiting to get the figures from the shop. If I remember right it was 77 horsepower and 105 lbs of torque at the wheels. I am running big 225/50r16s so I suspect I would pick up some more with lighter stock rims and tires....

I will post the graphs as soon as I get them.

Attached Image

What engine are you running?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Nov 20 2021, 03:34 PM
Post #3


Senior Member
****

Group: Members
Posts: 2,326
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
So about 93 horsepower, plenty to be fun. (+-) This a 2056?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Nov 20 2021, 03:45 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Stock 73 2.0 djet. I do have an ansa muffler and a k and n filter on it. And a 123 dizzy (not Bluetooth)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Nov 20 2021, 04:55 PM
Post #5


Senior Member
****

Group: Members
Posts: 2,326
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
Great
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Van B
post Nov 20 2021, 05:17 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,582
Joined: 20-October 21
From: Maryland
Member No.: 26,011
Region Association: None
That’s so f***ing cool.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Nov 20 2021, 05:42 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Tom at overdrive automotive in Binghamton NY is great. Drilled a bung in my exhaust (muffler, not the stainless) for the 02, probably 8 pulls plus all the idle and part throttle tuning. He really is great to work with. I described how the mps works, the ECU idle richness, etc. I have the tangerine racing tuning kit on my mps. He just dived in and had fun with it. One thing I will mention, we tried to advance the timing a hair to see if there was more there. We lost 20 horsepower with just a couple degrees of extra advance. Crazy how bad it was.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Nov 20 2021, 06:25 PM
Post #8


914 Guru
*****

Group: Members
Posts: 5,796
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest
I want a video with sound!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Nov 20 2021, 06:45 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
I knew I should have taken a video... Stupid not to. You will just have to imagine the vroom vroom sounds when I post the graphs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Nov 20 2021, 07:51 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,582
Joined: 20-October 21
From: Maryland
Member No.: 26,011
Region Association: None
Yes, yes you should have. And we are all very disappointed in you.

But, I get it. Most people don’t think like you tubers. We go to a shop to do stuff, not film a video lol…
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Nov 20 2021, 08:17 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Funny thing is everyone in the shop "knew" when we screwed up the timing. They were not paying any attention till that pull then everyone was like "ouch!" What happened!?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Nov 21 2021, 09:17 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,582
Joined: 20-October 21
From: Maryland
Member No.: 26,011
Region Association: None
Deleted* I need to think more about what I was about to recommend

Question instead: what happened to the richness at high RPM WOT when you advanced and by how much did you advance?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Nov 22 2021, 08:52 AM
Post #13


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
It got super rich, black smoke everywhere. Lost 20 horsepower. Tom said he maybe put 5 degrees into it.

Judging by the couple hundred rpm at idle increase I think that was about right.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Nov 22 2021, 09:17 AM
Post #14


Senior Member
***

Group: Members
Posts: 1,582
Joined: 20-October 21
From: Maryland
Member No.: 26,011
Region Association: None
doesn't the 123 ignition let you create a custom ignition map; as in being able to advance at high RPM without being forced to advance across the whole curve?

I'm struggling to get my head around how advancing further causes increased richness. Unless it was so much advance that it was igniting prior to sufficient compression was reached to achieve a full burn.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ValcoOscar
post Nov 22 2021, 09:20 AM
Post #15


Garage Life
****

Group: Members
Posts: 2,372
Joined: 19-November 13
From: SoCal
Member No.: 16,669
Region Association: Southern California
Attached Image

I just noticed the rear FUCHS spinning

(IMG:style_emoticons/default/willis.gif)

Congrats (IMG:style_emoticons/default/beerchug.gif)

Oscar
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Nov 22 2021, 09:32 AM
Post #16


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
QUOTE(Van B @ Nov 22 2021, 10:17 AM) *

doesn't the 123 ignition let you create a custom ignition map; as in being able to advance at high RPM without being forced to advance across the whole curve?

I'm struggling to get my head around how advancing further causes increased richness. Unless it was so much advance that it was igniting prior to sufficient compression was reached to achieve a full burn.


I think that is exactly what happened.

And I have the non-bluetooth 123 so I believe I only have the built in mapping to work with.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Nov 22 2021, 11:47 AM
Post #17


Senior Member
***

Group: Members
Posts: 1,582
Joined: 20-October 21
From: Maryland
Member No.: 26,011
Region Association: None
Maybe one step up on the plug heat range then?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Nov 22 2021, 12:37 PM
Post #18


Advanced Member
****

Group: Members
Posts: 2,067
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
QUOTE(Van B @ Nov 22 2021, 12:47 PM) *

Maybe one step up on the plug heat range then?


I thought that was just for chamber temperature differences. Although I have always been unsure about heat range differences in plugs.

I also have a very old coil. I wonder if my spark can keep up with the high rpm firing?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Nov 22 2021, 02:39 PM
Post #19


Senior Member
***

Group: Members
Posts: 1,582
Joined: 20-October 21
From: Maryland
Member No.: 26,011
Region Association: None
More resistance in the plug means more energy build up before the spark can jump the gap. So, a more powerful can overcome the sparkplug resistance quicker and provide more arc energy to the spark itself... but there's a lot of other assumption on that as well: plug wires, etc. But treating the coil as a constant, a higher resistance plug can alter the actual spark timing just ever so slightly. Going to Coil On Plug (COP) is what gave manufacturers the ability to really tune engines for efficiency. Even differing length of plug wires varies resistance between cylinders.

Regardless, you want to be a little rich at high RPM and WOT... the last place you want detonation is during the most stressful parameters for engine operation. Being a little lean off the bottom can give a more snappy throttle response too. The problem you run into when trying to nail the AFR is that you have no forgiveness in the fuel. I'm sure we all run premo fuel, but let's say you fill up one day and the premium is 1 octane point lower than what you used for tuning and you dialed in a perfect 14.7:1 AFR... well now you have a detonation problem.

So, there's no point in running a street engine at 14:1 AFR. I'd like to know the ratios you were seeing at "a little lean, and a little rich" for my own curiosity. But if you're even 12:1, I'd say you're just fine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post Nov 22 2021, 02:52 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,888
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region
QUOTE(emerygt350 @ Nov 20 2021, 04:42 PM) *

Tom at overdrive automotive in Binghamton NY is great. Drilled a bung in my exhaust (muffler, not the stainless) for the 02, probably 8 pulls plus all the idle and part throttle tuning. He really is great to work with. I described how the mps works, the ECU idle richness, etc. I have the tangerine racing tuning kit on my mps. He just dived in and had fun with it. One thing I will mention, we tried to advance the timing a hair to see if there was more there. We lost 20 horsepower with just a couple degrees of extra advance. Crazy how bad it was.



What wound up working the best as far as timing goes? 27-28 degrees total advance?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
