> Gauge restore and LED upgrade, step by step video
iankarr
post Jan 31 2018, 10:15 AM
Post #1


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,556
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
Hi Guys,

Just finished restoring my gauge cluster and installing the LED upgrade described by Timothy_nd28. Here's the vid...


https://www.youtube.com/watch?v=r3xJxEiIlIQ


And here's Tim's step by step post...

http://www.914world.com/bbs2/index.php?sho...=212130&hl=
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Coondog
post Jan 31 2018, 10:42 AM
Post #2


Advanced Member
****

Group: Members
Posts: 2,089
Joined: 24-September 15
From: Apple Valley Calif
Member No.: 19,195
Region Association: Southern California

Thank you for posting, this mod is on my bucket list for sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete000
post Jan 31 2018, 11:59 AM
Post #3


Senior Member
***

Group: Members
Posts: 1,887
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States
Does the dimmer still work?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mtndawg
post Jan 31 2018, 12:44 PM
Post #4


Member
**

Group: Members
Posts: 414
Joined: 26-January 09
From: Granite Bay, Ca
Member No.: 9,985
Region Association: None
Easy to follow, clear audio, nice close up shots, really well done video!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iankarr
post Jan 31 2018, 12:51 PM
Post #5


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,556
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
QUOTE(pete000 @ Jan 31 2018, 12:59 PM) *

Does the dimmer still work?


Thanks guys.

the dimmer worked on my '73 with this upgrade. haven't installed this new cluster in my 74 yet, but no reason to think it wouldn't work as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Jan 31 2018, 03:12 PM
Post #6


Advanced Member
****

Group: Members
Posts: 4,816
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(cuddyk @ Feb 1 2018, 07:51 AM) *

QUOTE(pete000 @ Jan 31 2018, 12:59 PM) *

Does the dimmer still work?


Thanks guys.

the dimmer worked on my '73 with this upgrade. haven't installed this new cluster in my 74 yet, but no reason to think it wouldn't work as well.

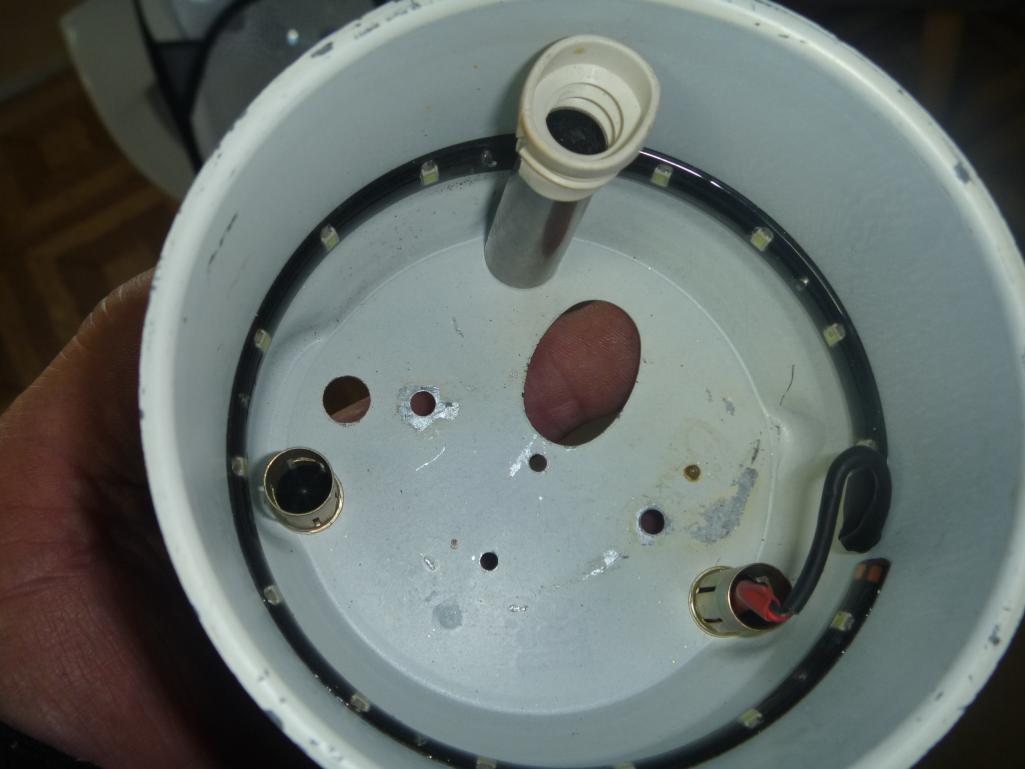

Done this myself and yes it is very effective,I purchased 3 x 300mm LED strips already to go in,on the tach I found that was a little short but didn't have any effect as there was plenty of light.
My dimmer is bypassed as with my headlight switches both had dimmers fail one after the other (IMG:style_emoticons/default/headbang.gif) .
Great video (IMG:style_emoticons/default/beerchug.gif) .
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Jan 31 2018, 03:13 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
Very nicely done and one handed nonetheless! (IMG:style_emoticons/default/beerchug.gif)
I nominate this procedural video for the classic section! Pictures don't do these upgrades any justice, however your video of the gauges being lit up did the trick.

Since doing these conversions for other members, I did learn something not good since my original writeup, a electrical short. The flexible LED strip has a sticky adhesive on the back end. For whatever reason, when sticking the LED's inside the gauge can, the bottom of the flexible PCB shorted to the metal. Not taking any chances on future conversions, I have been applying a layer of double sided sticky foamy tape to the interior of the gauge can, then appling the LED strip ontop of this tape. The tape acts as a good electrical insulator and it also doubles as something to grab ahold of any loose light bulbs that happen to fall out of its lamp holder (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iankarr
post Jan 31 2018, 07:51 PM
Post #8


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,556
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
Thanks for the heads up Tim!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Jan 31 2018, 08:05 PM
Post #9


Jackstands are my life.
****

Group: Members
Posts: 3,466
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region
Happen to measure the thickness of the glass?

I've got a guy that will cut glass cheap but my later gauge, with the plastic lens, is about half as thick. Same thing with my 944 combo gauge, only 1/16" or so thick.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Jan 31 2018, 08:24 PM
Post #10


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
Nice video! FYI, you can solder leads to any of the copper pads on the cut lines of the LED tape. it doesn't have to be just at the soldered ones. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Jan 31 2018, 08:24 PM
Post #11


Apex killer!
***************

Group: Members
Posts: 24,030
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
Nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iankarr
post Jan 31 2018, 08:36 PM
Post #12


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,556
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
QUOTE(Chris914n6 @ Jan 31 2018, 09:05 PM) *

Happen to measure the thickness of the glass?

I've got a guy that will cut glass cheap but my later gauge, with the plastic lens, is about half as thick. Same thing with my 944 combo gauge, only 1/16" or so thick.

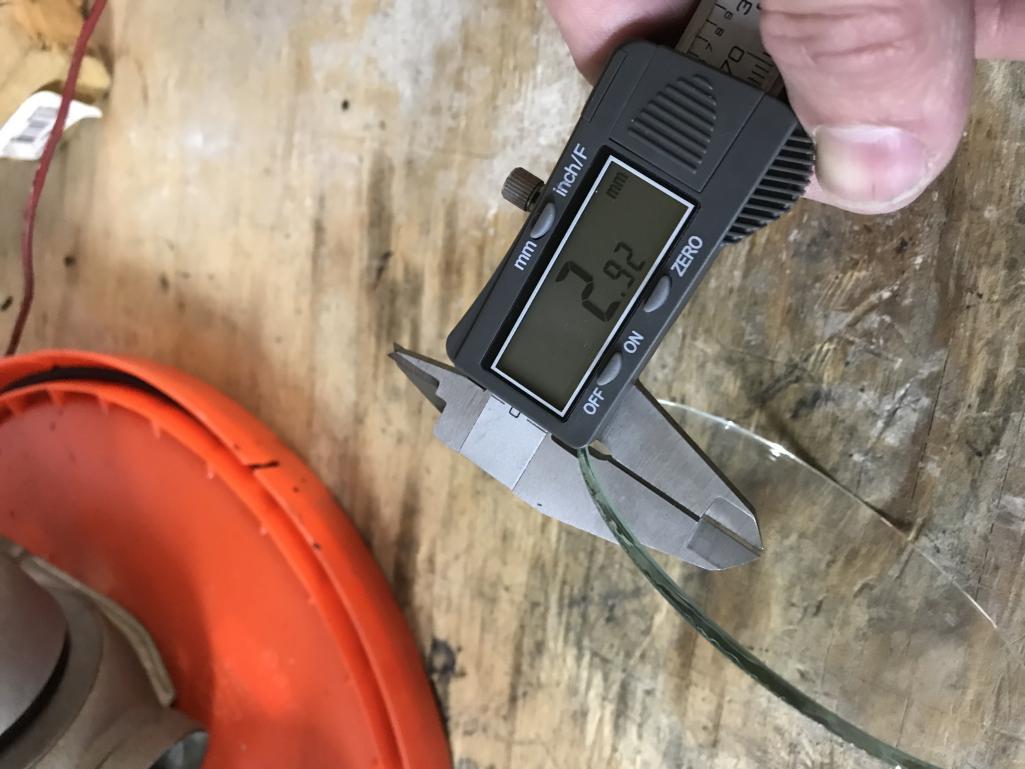

Here ya go... this is original glass. 2.92mm / .115 inches (or 7/64). I replaced the ones on my gauges and just told the glazier to match the thickness. keep in mind that if you powder coat the rings you may need a slightly thinner glass. These lenses are installed under surprisingly tight tolerances and if the glass/ring combo is too thick, there won’t be enough metal left to re-crimp.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Jan 31 2018, 09:02 PM
Post #13


Jackstands are my life.
****

Group: Members
Posts: 3,466
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region

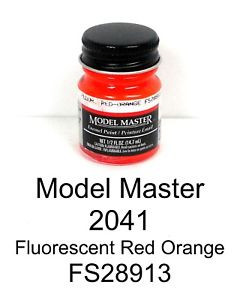

I found Model Masters 28913 Red Orange to be a near perfect match for needles. Should be found at your local hobby store with models.

(IMG:http://www.914world.com/bbs2/uploads_offsite/farm5.staticflickr.com-431-1517454158.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Feb 1 2018, 10:56 AM
Post #14


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
Dimmable LEDs makes this awesome! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Feb 1 2018, 11:16 AM
Post #15


Advanced Member
****

Group: Members
Posts: 2,999
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
QUOTE(Chris914n6 @ Jan 31 2018, 08:02 PM) *

I found Model Masters 28913 Red Orange to be a near perfect match for needles. Should be found at your local hobby store with models.

(IMG:http://www.914world.com/bbs2/uploads_offsite/farm5.staticflickr.com-431-1517454158.1.jpg)

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stickyfingers
post Aug 18 2022, 05:57 PM
Post #16


Member
**

Group: Members
Posts: 168
Joined: 19-February 21
From: Toronto
Member No.: 25,223
Region Association: Canada
Hi Ian. Video is amazing. Can someone recommend the LED strips from Amazon that will work?

Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Aug 18 2022, 06:23 PM
Post #17


Senior Member
***

Group: Members
Posts: 640
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
QUOTE(Chris914n6 @ Jan 31 2018, 07:05 PM) *

Happen to measure the thickness of the glass?

I've got a guy that will cut glass cheap but my later gauge, with the plastic lens, is about half as thick. Same thing with my 944 combo gauge, only 1/16" or so thick.


I see the OP posted above in the thread (post #12) the measured thicknesses. Its worth noting that if you do replace the plastic lenses with glass, then either use a bezel that came with OG glass lens, OR match the thickness of the plastic with the replacement glass. If you don't, re-crimping the bezel will be a bear of a task.

Ask me how I know..... (IMG:style_emoticons/default/dry.gif)

- Tony

PS. @Iankarr Excellent video there!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesJ
post Aug 18 2022, 07:00 PM
Post #18


Member
**

Group: Members
Posts: 232
Joined: 30-April 20
From: Sunnyvale, CA
Member No.: 24,202
Region Association: Northern California
Just a comment regarding the LED strips. Palo Alto Speedometer suggested I use LED bulbs because the LED strips emit different lighting for each gauge because each housing is different. YMMV
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Aug 19 2022, 09:52 PM
Post #19


Senior Member
***

Group: Members
Posts: 1,370
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
Since we are revisiting the past, where does one source the bulbs for an upgrade? My son was just asking if I was going to do this mod?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Aug 20 2022, 05:52 AM
Post #20


Geezer914
***

Group: Members
Posts: 1,922
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States
I replaced all the bulbs with blue LED's except the generator bulb.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
