> building an auto-x / short track / street car, making some improvements
B2524
post Mar 30 2012, 11:06 PM
Post #1


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California
so about a month ago I bought/traded for a 72 914. a little rough here and there but a nice dry car.
the goal is to turn it into an improved car for auto-x and short track use (streets of willow) while still keeping it street legal and semi-tame.
for now I decided to stay with solid rotors to keep the budget under control.
so the brakes will be BMW in the front and stock ones in the rear.
I'm going with Koni sport shocks all around with a used Weltmeister front sway bar. I picked up a set of new 21mm front torsion cars and I have some 165lbs/in for the rear. yeah I could go higher spring rates in both the front and rear but the roads around here aren't too smooth and my fillings are loose.
here is some pictures of the work so far.

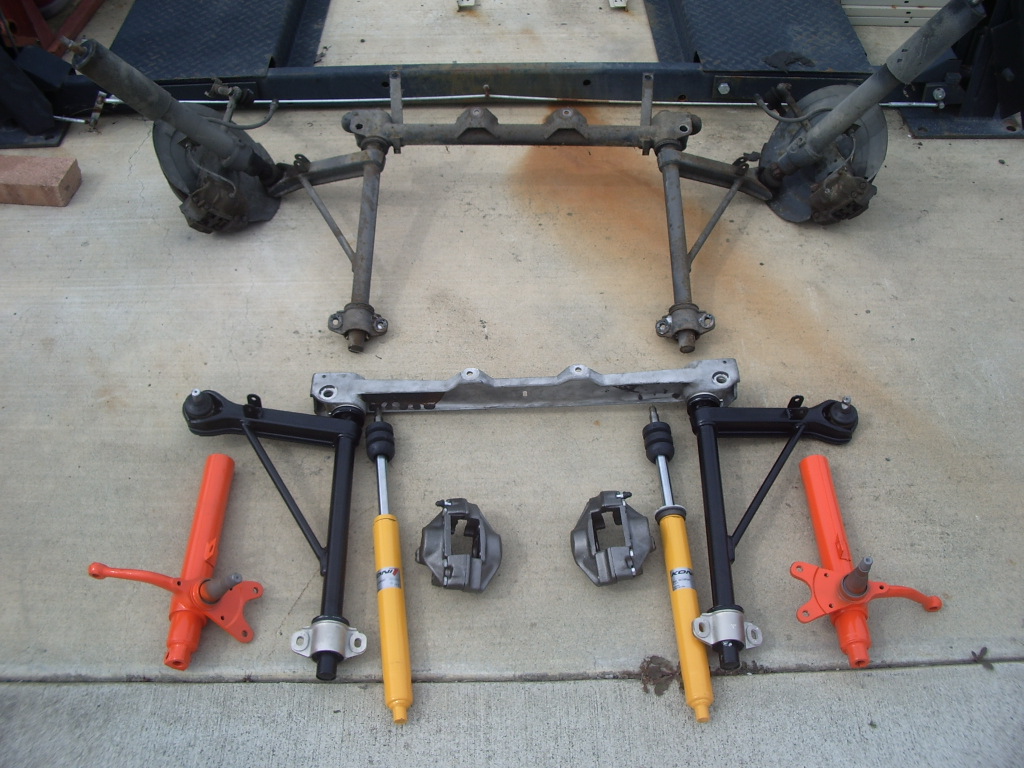

this is the new suspension next to the old stuff we took out.

Attached Image

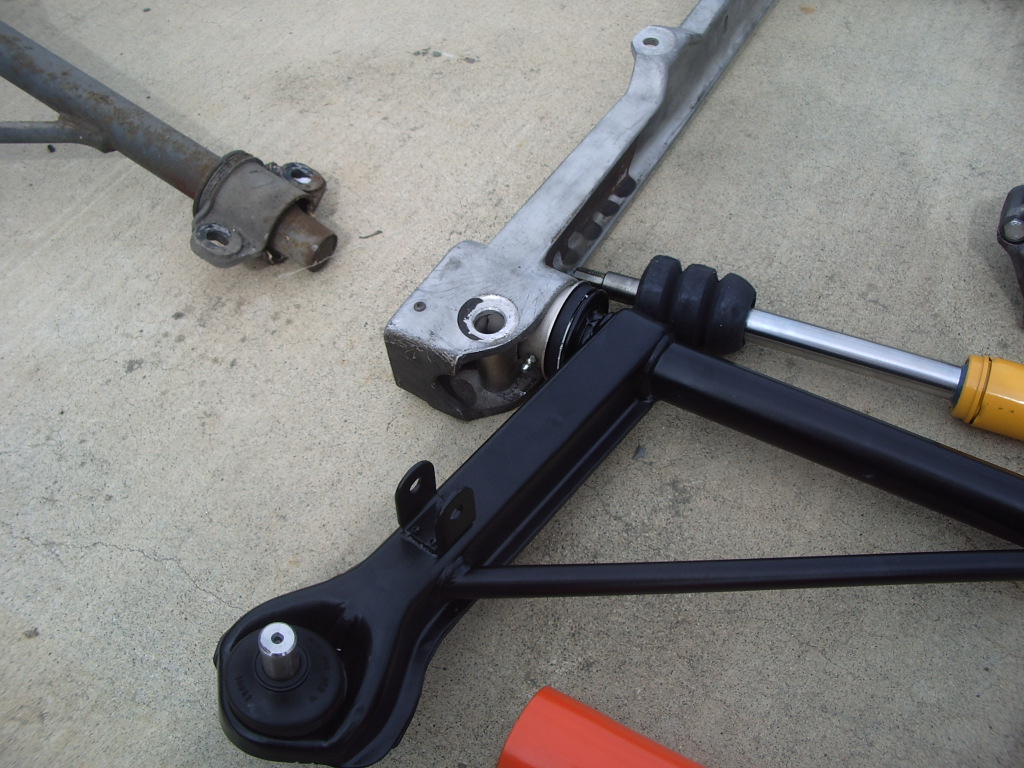

here is a detail showing the zerk fittings we put in the front control arm mounts.

Attached Image

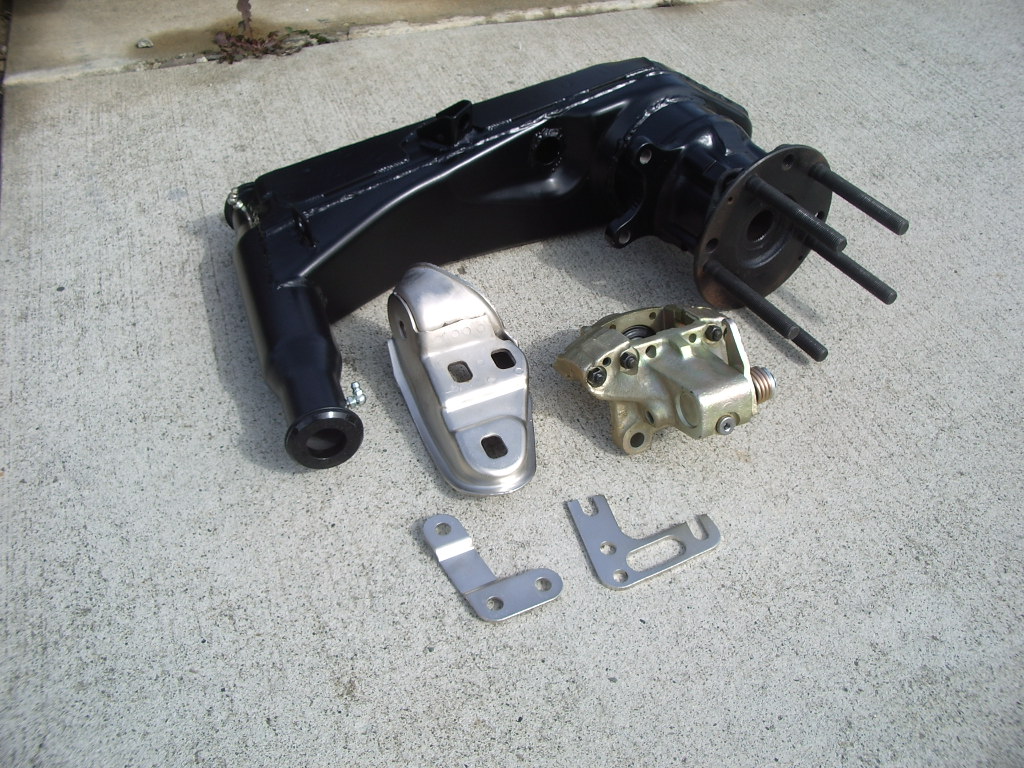

here is the rear suspension arm after boxing and with zerk fittings added along with new bearings and 5 lug conversion. I'll trim the studs after we get the rear wheels mounted and spaced to fit the GT flares.

Attached Image

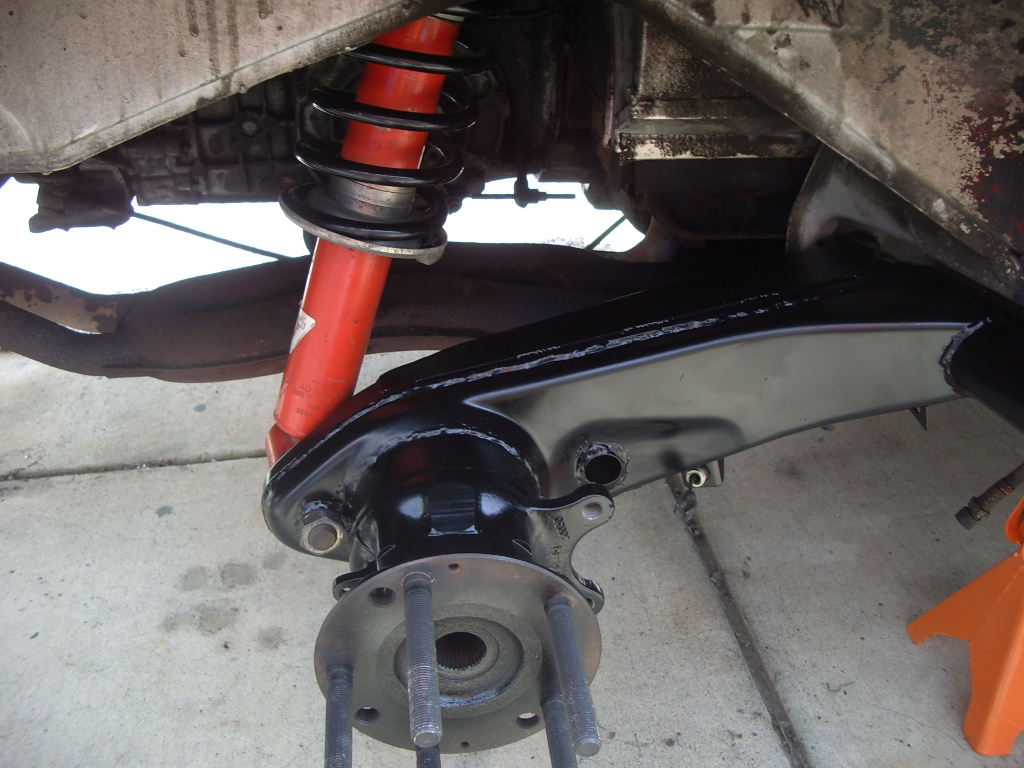

here is the new rear suspension installed in the car. we left off the brakes as I will be taking the car to have the chassis stiffening kit installed. less work for the metal guy to remove the rear arms.


Attached Image


while the suspension work progresses I'm working on another engine for the car. right now the car has a stock 1.7 with FI. I bought a 2.0 off eBay that was local and ended up being reasonable. I also picked up a set of Weber 40IDF's for it.
the 2.0 won't go in the car until I get a side shifter trans sorted out for the car.
right now I need to get a set of front hubs cleaned and longer studs installed.
Cheers,
Kent
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ruby914
post Mar 30 2012, 11:16 PM
Post #2


Senior Member
***

Group: Members
Posts: 720
Joined: 26-April 09
From: Hawthorne, Ca
Member No.: 10,305
Region Association: None
Wow, Looking good.
Your off to a good start and (IMG:style_emoticons/default/welcome.png)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mrbubblehead
post Mar 30 2012, 11:44 PM
Post #3


Twodollardoug
***

Group: Members
Posts: 1,155
Joined: 17-December 10
From: calimesa ca.
Member No.: 12,492
Region Association: Southern California
(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/welcome.png) it will be a blast to (IMG:style_emoticons/default/driving.gif)

do you mean idf carburetors?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Apr 6 2012, 09:57 AM
Post #4


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California
bump so the guys can see the old front suspension I am selling.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
abnrdo
post Apr 6 2012, 11:18 PM
Post #5


Member
**

Group: Members
Posts: 399
Joined: 24-September 04
From: Panama City, FL
Member No.: 2,820
Region Association: South East States
(IMG:style_emoticons/default/welcome.png)

Looks like a good start to a nice project! You might want to add the sale items to the classified section. Admins are lurking.....

(IMG:style_emoticons/default/hide.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris Pincetich
post Apr 6 2012, 11:29 PM
Post #6


B-)
****

Group: Members
Posts: 2,082
Joined: 3-October 05
From: Point Reyes Station, CA
Member No.: 4,907
Region Association: Northern California
Nice (IMG:style_emoticons/default/beerchug.gif)
what's the plan for wheels/tires?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Apr 7 2012, 05:40 PM
Post #7


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California
I have a set of magnesium minilites that are powder coated silver. 7's for the front and 7.5's for the rear.
I just ordered a set of F/G flares for the car. My son and I like the pop-rivet look.
The car is dark metallic green right now. Originally it was silver. We both like orange 914 race cars.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post May 1 2012, 08:01 AM
Post #8


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California

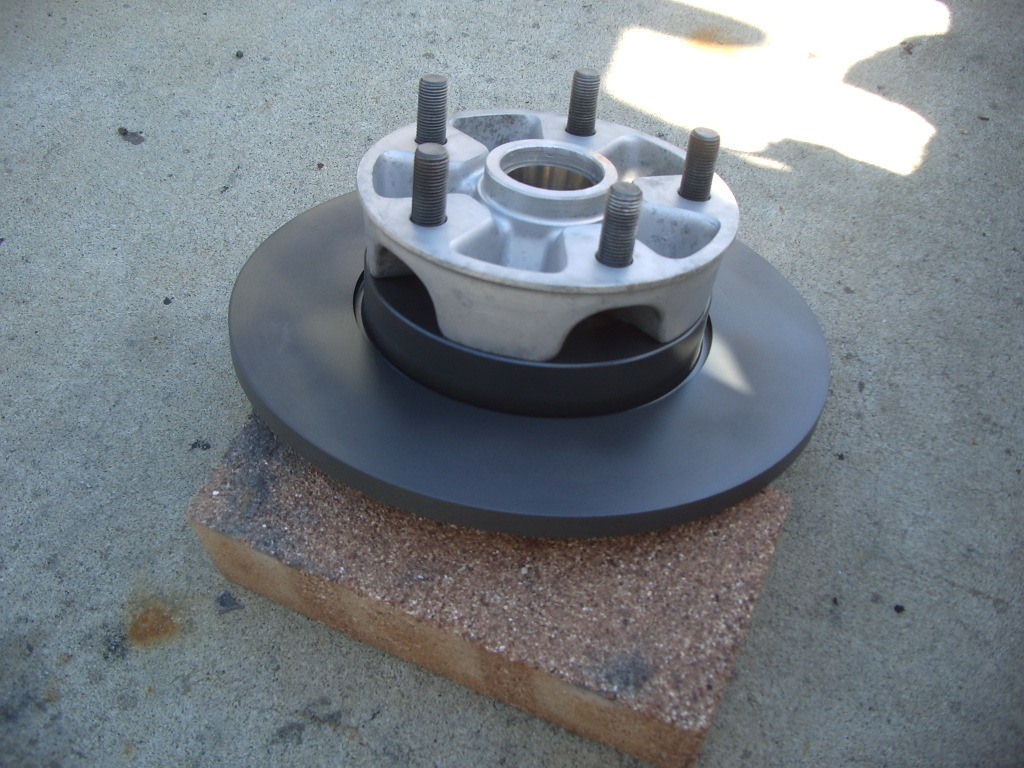

finally got the front rotors and hubs cleaned and bolted together.
staying with solid rotors for now.
i have BMW calipers for the fronts.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Jul 25 2012, 09:11 AM
Post #9


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California

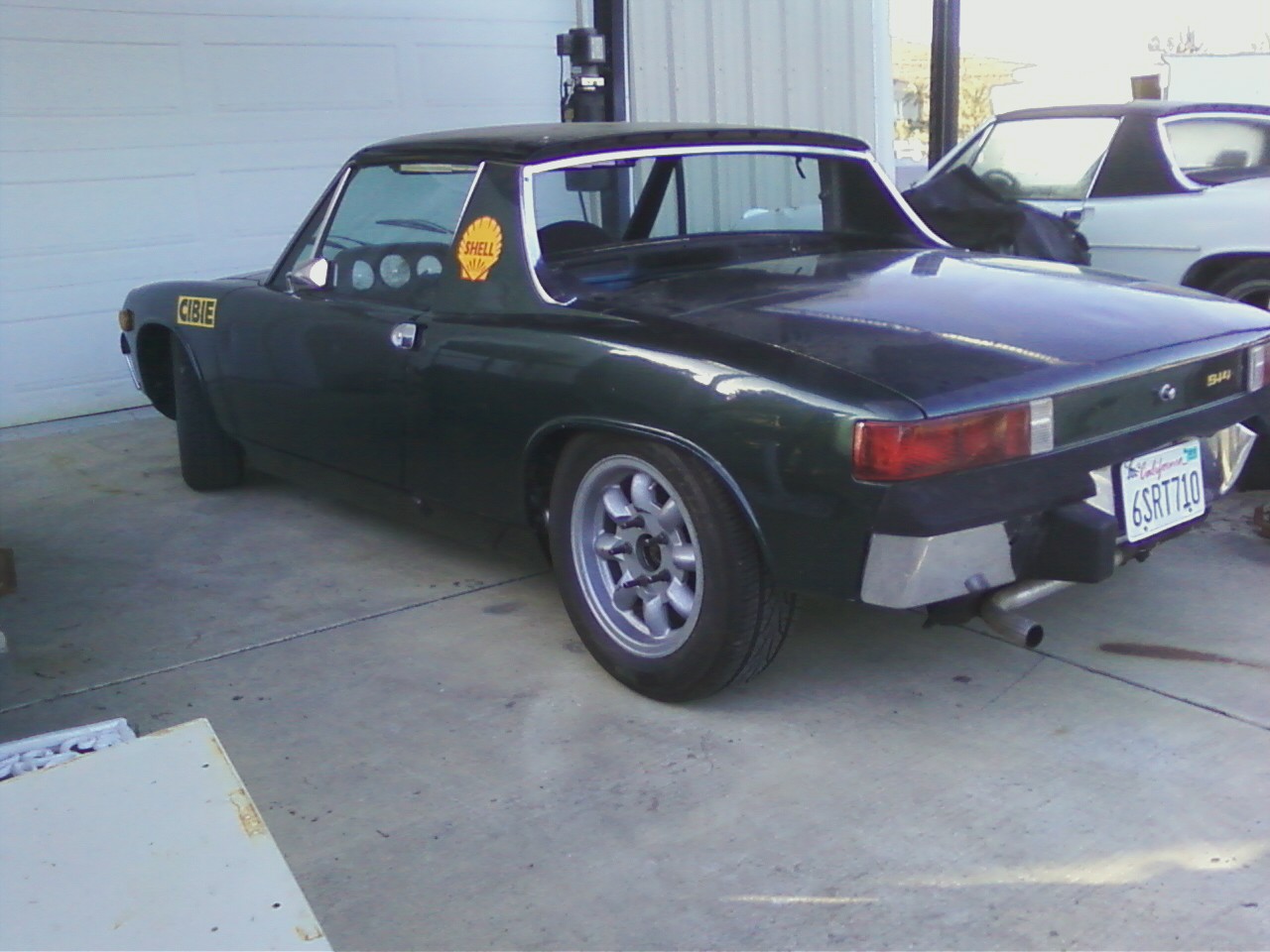

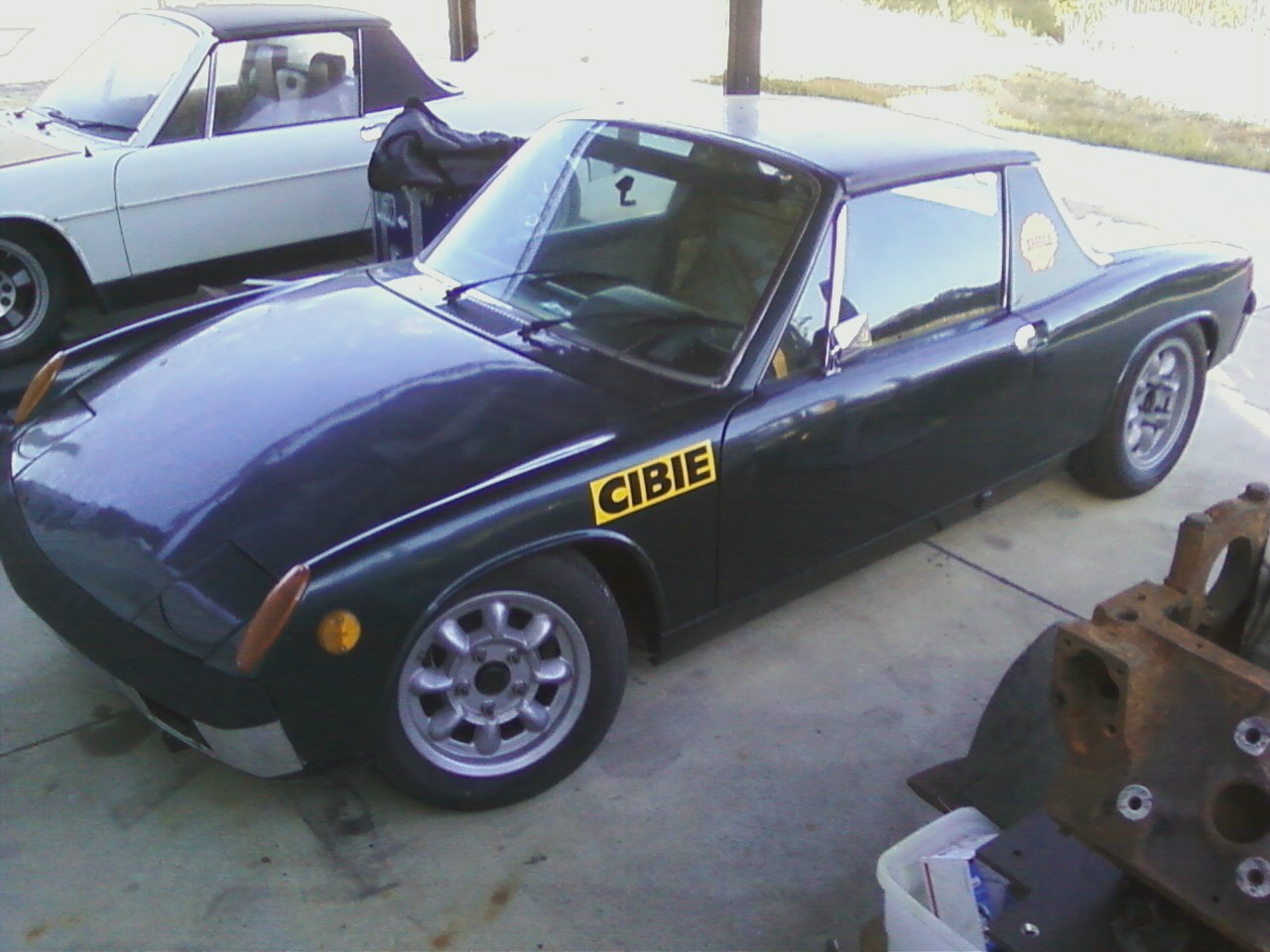

progress:

lots of work is now done and the car is running again.
installed a Porsche ignition tumbler set from a parts car I picked up.
BMW calipers, adjustable front Koni's, poly graphite bushings all around, 21mm front springs, 165 rears, boxed arms, powder coated suspension, new master and flex lines, Koni rears, front sway bar still needs to be installed.

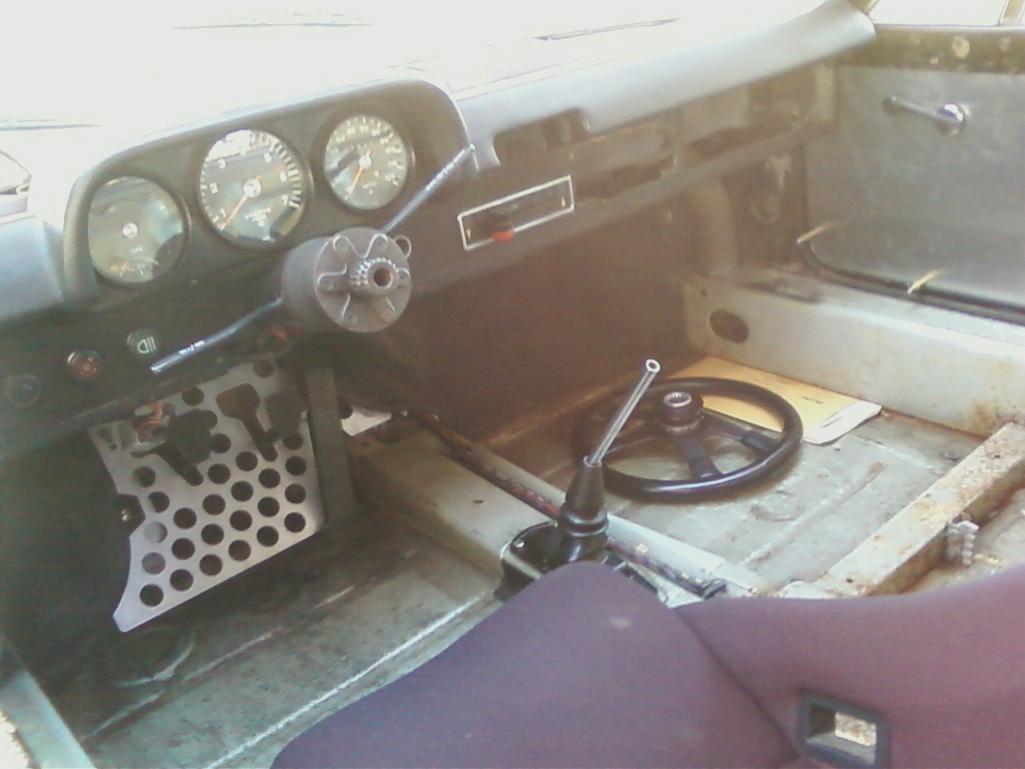

interior is gutted.

right now we are running 6.5 aluminum Minilites in the front and 7 inch Magnesium Minilites in the rear.

projects next up: Lexan rear window, brake bias valve, relocate the battery to the rear trunk.

oh yeah I'm picking up a fresh race motor and a side shifter.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Jul 25 2012, 09:17 AM
Post #10


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California

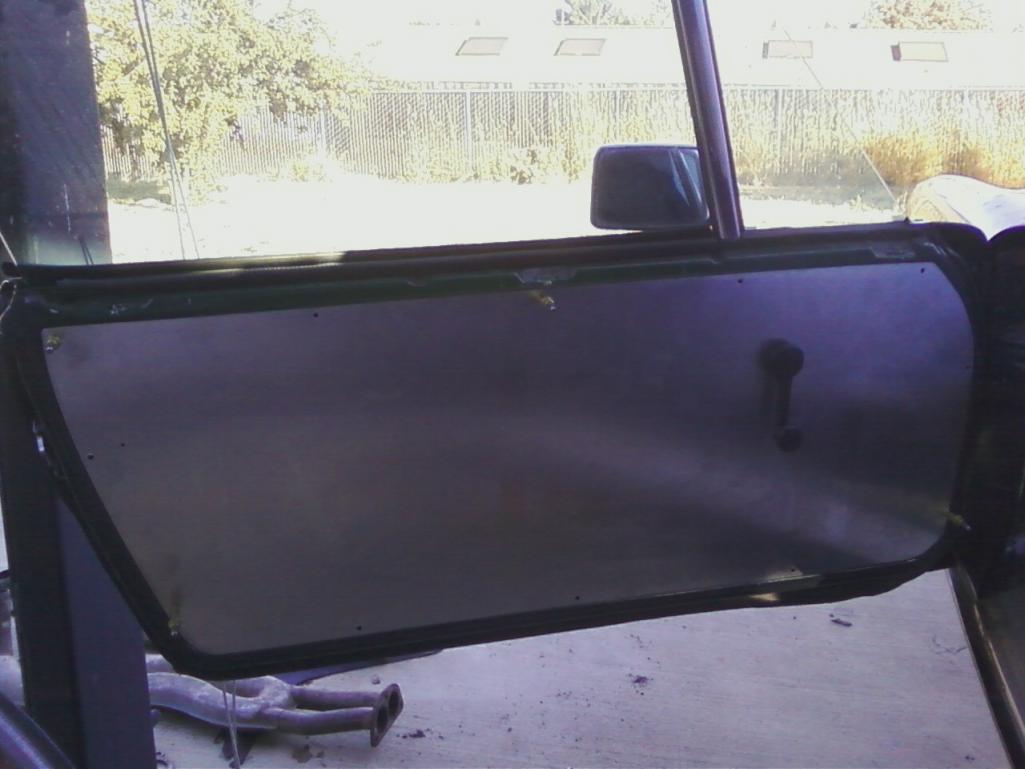

forgot a picture of the aluminum door panels I made.
I'll top them off with the rails from some early door panels after I get them powder coated crinkle black.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 25 2012, 02:54 PM
Post #11


914 Idiot
**********

Group: Members
Posts: 14,981
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Which front struts, hubs, rotors, and calipers do you have?

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Jul 25 2012, 03:45 PM
Post #12


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California
i did something kind of sneaky.
i had some 69 912 struts left over from my son's 912 after we put SC stuff on it.
so I used them with some 912 hubs. then i bolted stock 914 rotors on the 912 hubs. that combo puts the rotor in the correct position for the calipers. you have to use the hubs for non-vented rotor for it to work out. the calipers are 320i BMW that I got off the web.
the a-arms are 912 so i used 911 21mm springs and 911 spring adjusters since i used an SC aluminum suspension bar.

i was going to use 912 rotors but they are a little larger in diameter (i was going to cut them down) and a little thicker (used ones are the same thickness as fresh 914) but i ran out of time to turn down the OD and went with the 914 rotors.


just tried to use parts i had laying around the place.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 25 2012, 09:21 PM
Post #13


914 Idiot
**********

Group: Members
Posts: 14,981
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
I wondered about that. Some early 911s had solid rotors as well.

Very cool, using what you had on hand.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Aug 9 2012, 07:42 AM
Post #14


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California

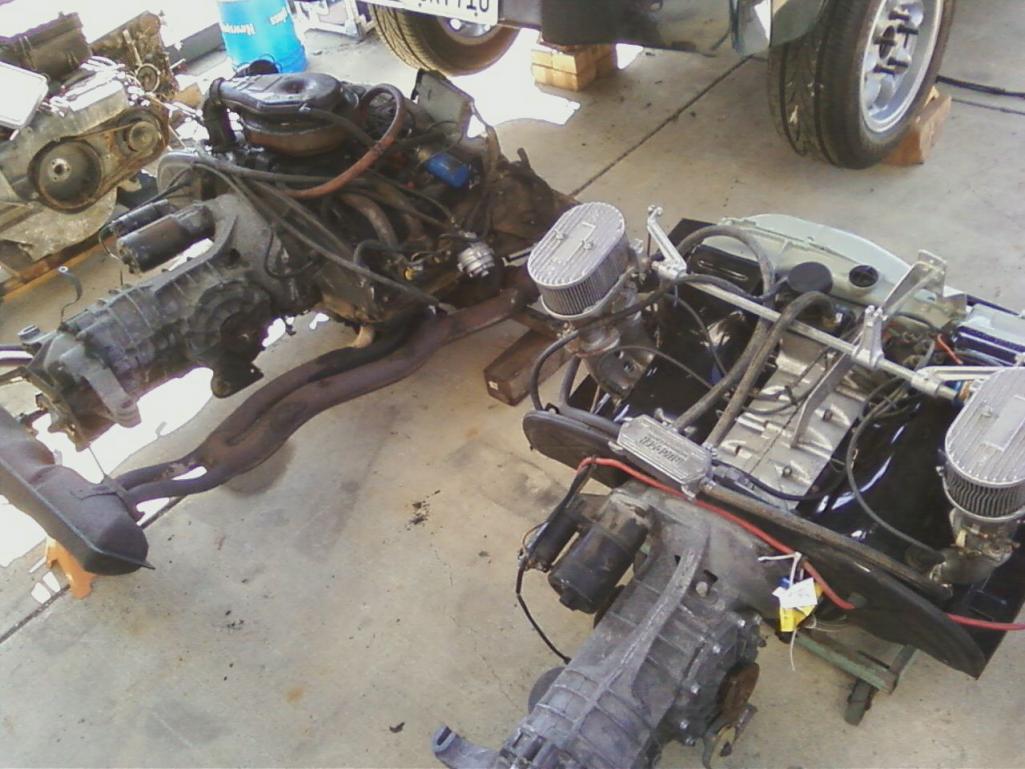

time to do a heart-lung transplant.

here is the old and the new.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yeahmag
post Aug 9 2012, 03:41 PM
Post #15


Advanced Member
****

Group: Members
Posts: 2,421
Joined: 18-April 05
From: Pasadena, CA
Member No.: 3,946
Region Association: Southern California
If you are tracking the car I'd suggest plugging/blocking the head vents, enlarging the case vent, and using a better breather (I never liked the CB one when I ran it in my drag bug).

My car "ran out of oil" when it was "full of oil". I pumped everything I had in to the heads and starved the bearings. Doesn't happen often, but it does happen...

-Aaron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Randal
post Aug 9 2012, 03:53 PM
Post #16


Advanced Member
****

Group: Members
Posts: 4,446
Joined: 29-May 03
From: Los Altos, CA
Member No.: 750
Nice job on the trailing arms. You will love the bearings!

Think about throwing an oil cooler up front for track work. Really makes a big difference in temps and engine life.

Rivet flares are good. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Aug 10 2012, 07:19 AM
Post #17


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California
the engine came with a nice cooler and remote filter but they were mounted to the engine. I'm going to move the filter to the bulkhead and put the cooler up front. I'm also going to run a deep sump and an Accusump to make sure the engine has OP all the time. I used to vintage race a 356 so I know about oil starvation.


been looking for a good exhaust system, didn't think finding a good one at a reasonable cost would be so hard.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yeahmag
post Aug 10 2012, 10:50 AM
Post #18


Advanced Member
****

Group: Members
Posts: 2,421
Joined: 18-April 05
From: Pasadena, CA
Member No.: 3,946
Region Association: Southern California
I think your best bet bang for $ is http://www.kerryhunterenterprise.com/914-4.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
B2524
post Apr 11 2013, 11:57 AM
Post #19


It's a sickness.
**

Group: Members
Posts: 72
Joined: 12-November 11
From: Outside Paso Robles CA
Member No.: 13,776
Region Association: Northern California
been a while since i posted any work.

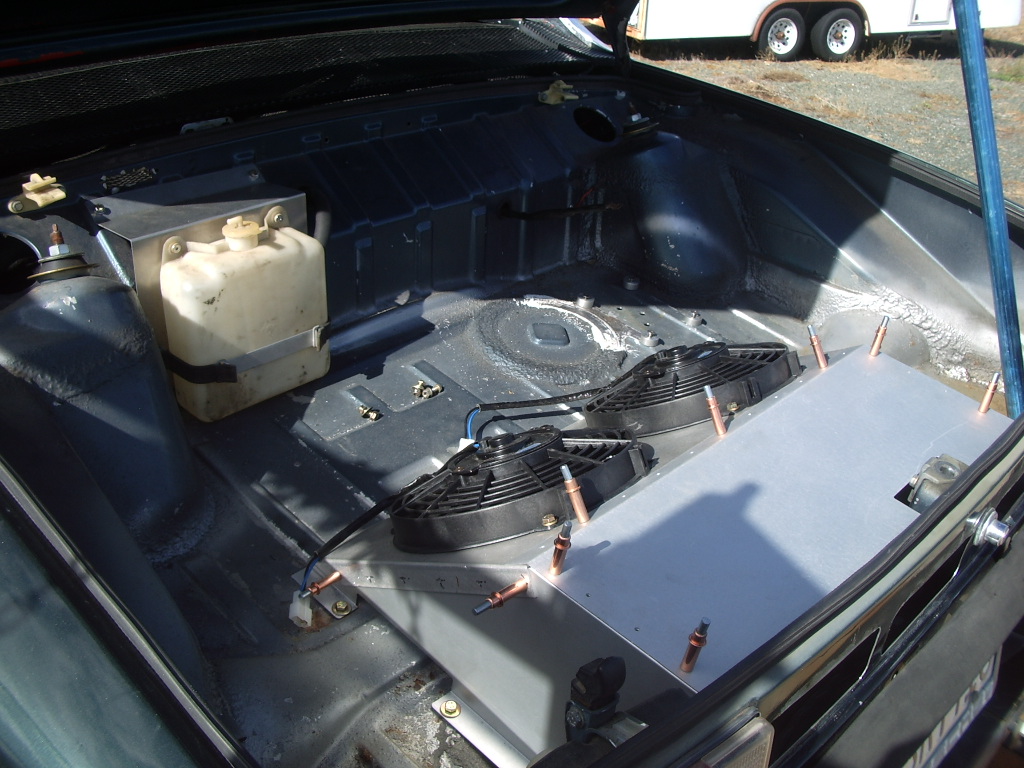

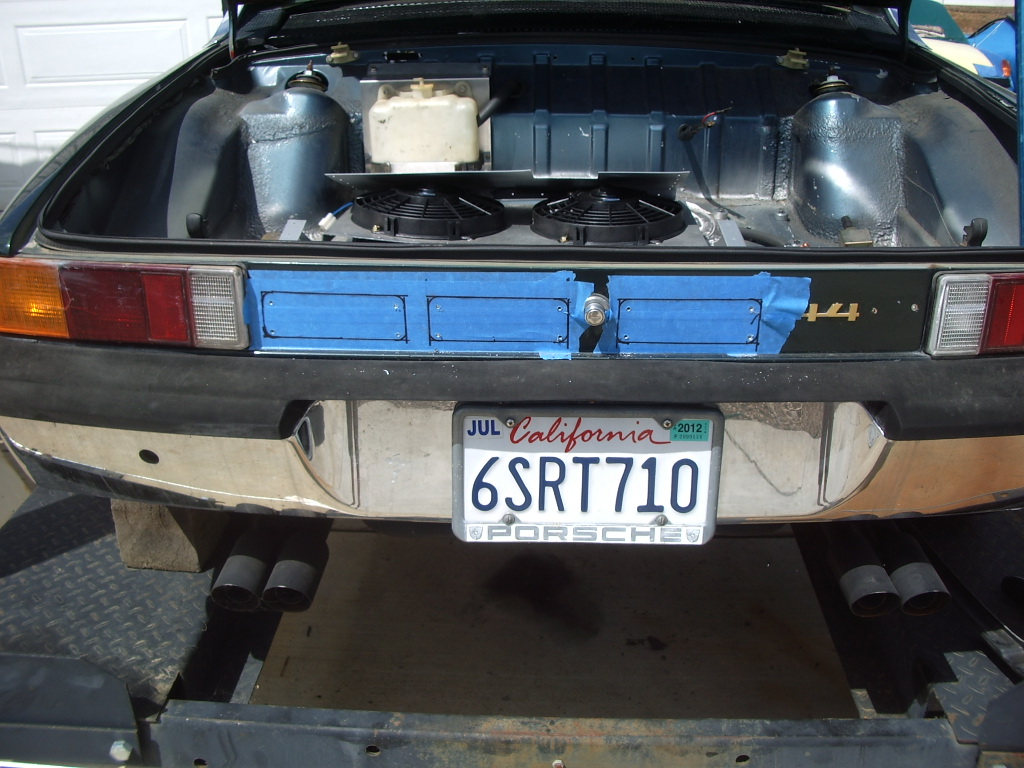

here is my oil cooler setup under construction.
i mounted it in the back with 2 fans, using a large cooler i had sitting around.
i also mounted a catch tank.
i have a gel battery that will be mounted in the trunk, it isn't shown as i was working on the oil filter mount that is under it.
you'll see what what is going on when i get everything mounted in place.

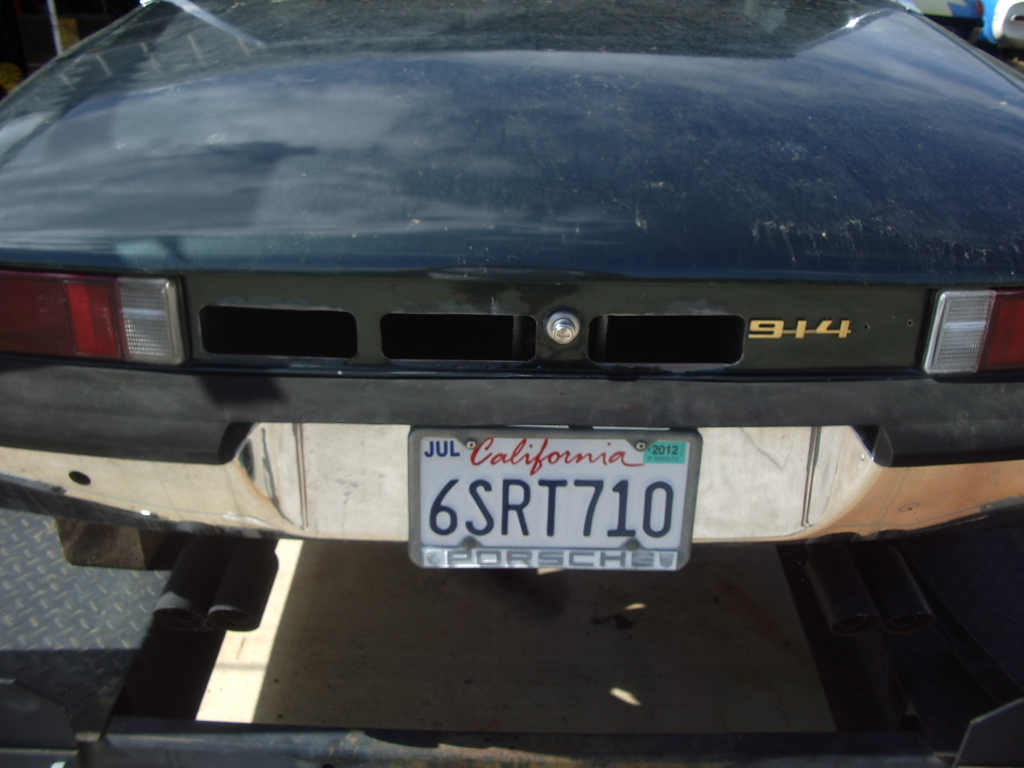

as you can see i found an exhaust system. 1 3/4 as my engine is 'large'.

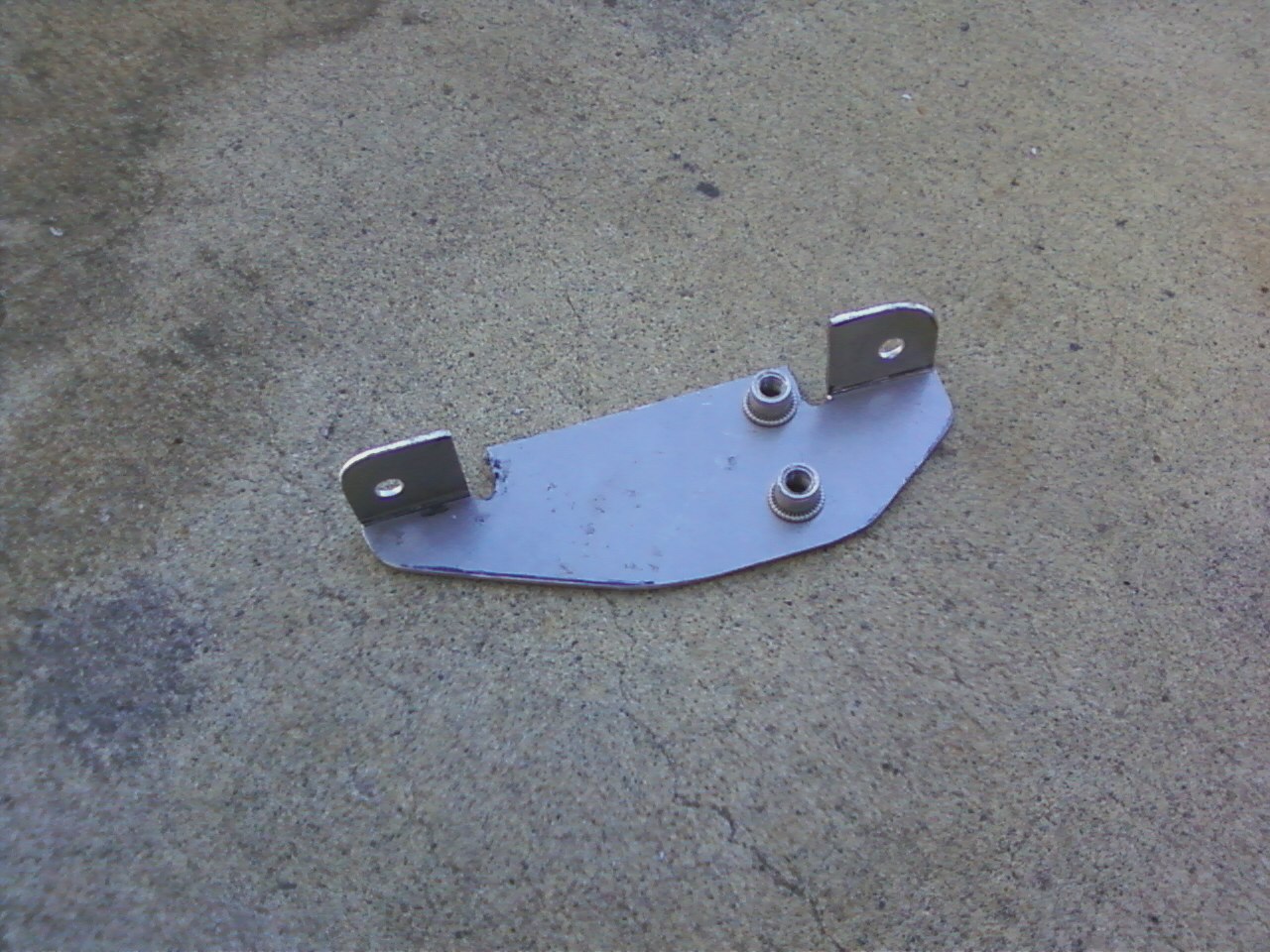

the little bracket is for the brake bias valve.
i should have some finished photos this weekend or next on most of these projects.


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Apr 11 2013, 01:13 PM
Post #20


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None
QUOTE(B2524 @ Mar 30 2012, 10:06 PM) *

so about a month ago I bought/traded for a 72 914. a little rough here and there but a nice dry car.
the goal is to turn it into an improved car for auto-x and short track use (streets of willow) while still keeping it street legal and semi-tame.

Kent


Kent,

Give us a heads-up when you plan on going out to Streets of Willow. I'm 50 minutes away; it's my home track.

Andys
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
